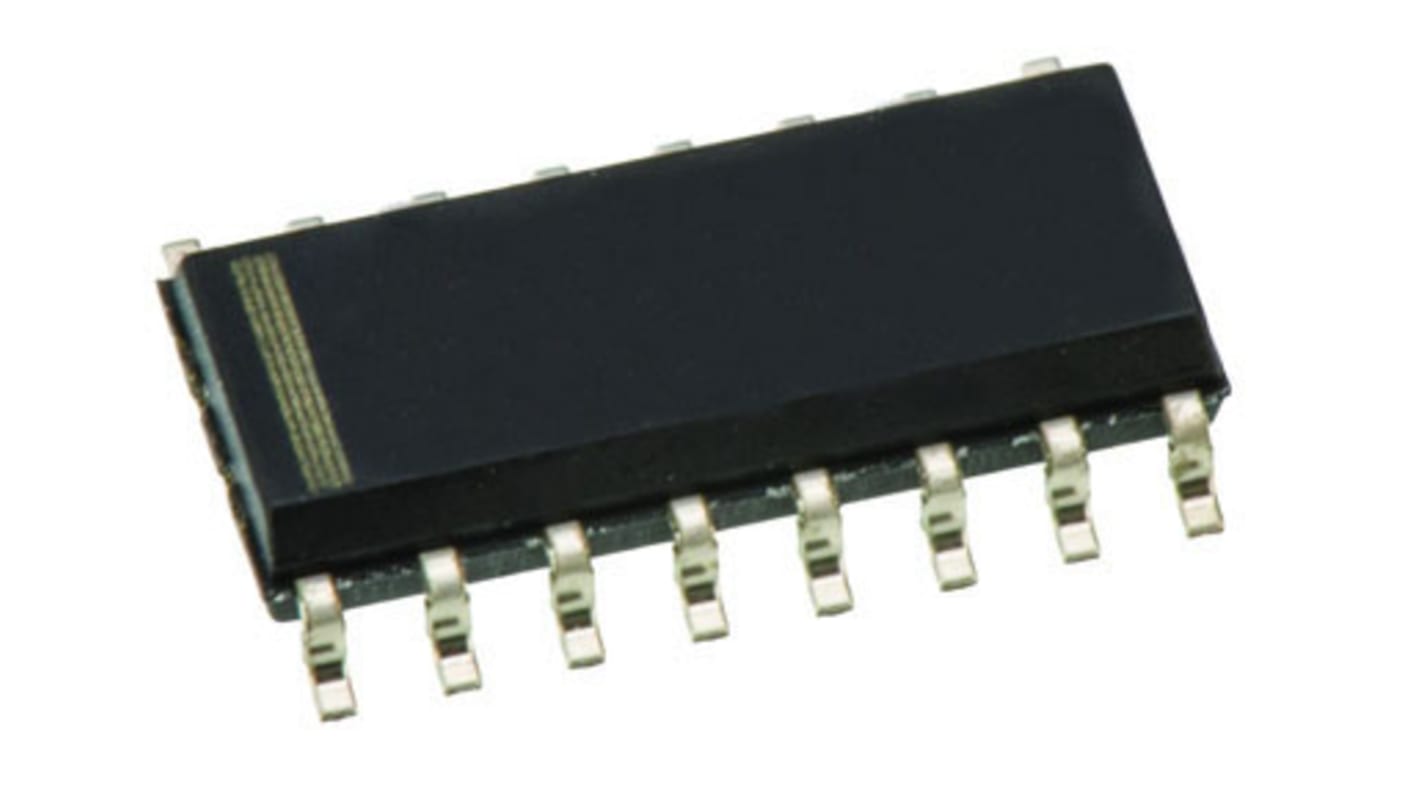

Texas Instruments DAC 10 bit- 4-Channel SPI, Microwire, QSPI, 102 ksps, 16-Pin SOIC
- RS Stock No.:
- 462-6842
- Mfr. Part No.:
- TLV5604ID
- Brand:
- Texas Instruments
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 462-6842
- Mfr. Part No.:
- TLV5604ID
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Product Type | DAC | |
| Architecture | Resistor String | |
| Resolution | 10 bit | |
| Number of Channels | 4 | |
| Mount Type | Surface | |
| Package Type | SOIC | |
| Sampling Rate | 102ksps | |
| Minimum Supply Voltage | 3V | |
| Pin Count | 16 | |
| Maximum Supply Voltage | 5.5V | |
| Interface Type | SPI, Microwire, QSPI | |
| Settling Time | 18μs | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Voltage Reference | External | |
| Width | 4mm | |
| Standards/Approvals | No | |
| Length | 8.7mm | |
| Height | 1.7mm | |
| Output Type | Analogue Voltage | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Product Type DAC | ||
Architecture Resistor String | ||
Resolution 10 bit | ||
Number of Channels 4 | ||
Mount Type Surface | ||
Package Type SOIC | ||
Sampling Rate 102ksps | ||
Minimum Supply Voltage 3V | ||
Pin Count 16 | ||
Maximum Supply Voltage 5.5V | ||
Interface Type SPI, Microwire, QSPI | ||
Settling Time 18μs | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Voltage Reference External | ||
Width 4mm | ||
Standards/Approvals No | ||
Length 8.7mm | ||
Height 1.7mm | ||
Output Type Analogue Voltage | ||
Automotive Standard No | ||
Digital to Analogue Converters 10 Bit, Texas Instruments
Digital to Analogue Converters - Texas Instruments
