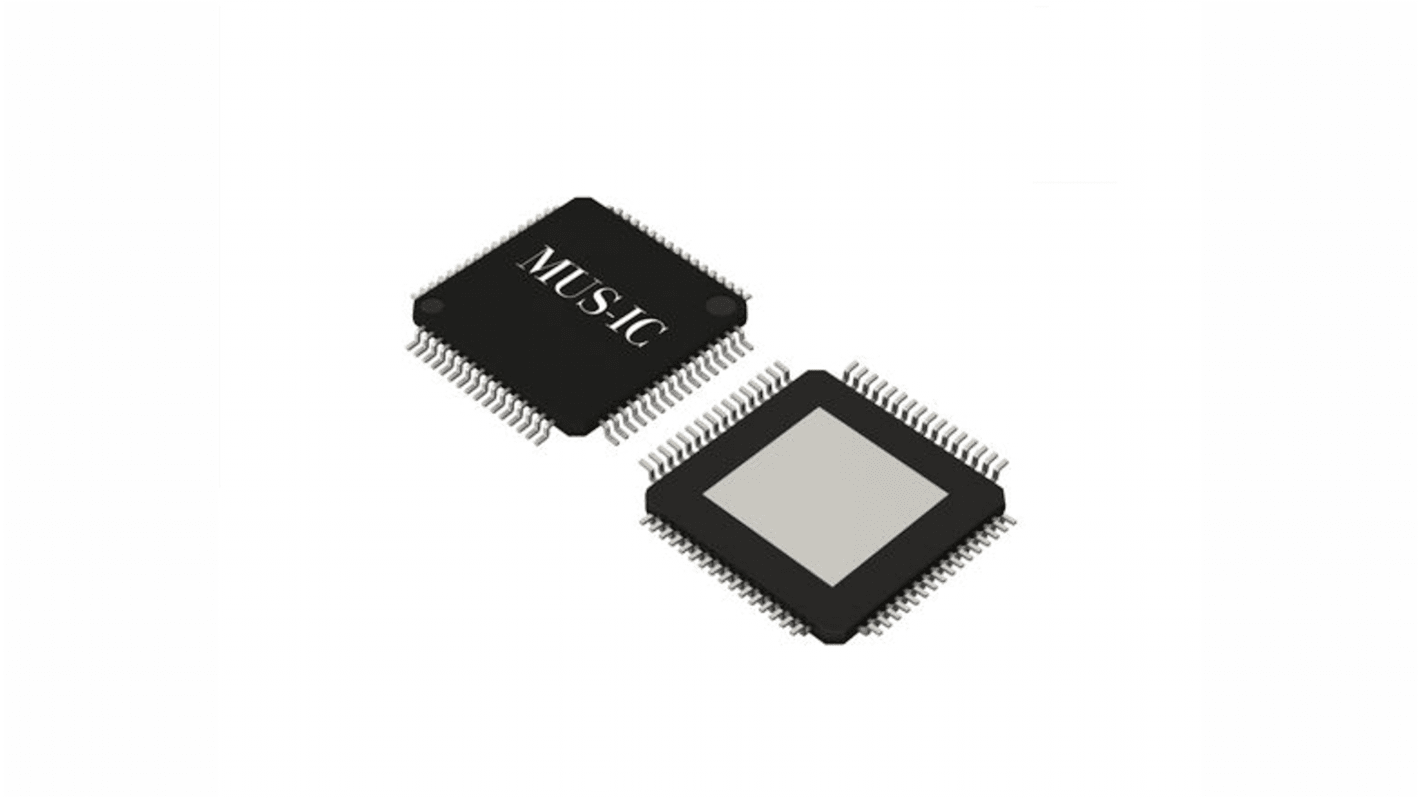

ROHM, Audio Converter DAC Dual 32 bit-, 64-Pin HTQFP64BV
- RS Stock No.:
- 244-0044
- Mfr. Part No.:
- BD34352EKV-E2
- Brand:
- ROHM
75 In stock - FREE next working day delivery available
Added
Price Each
£8.96
(exc. VAT)
£10.75
(inc. VAT)
| Units | Per unit |
| 1 - 49 | £8.96 |
| 50 - 99 | £8.78 |
| 100 - 249 | £8.60 |
| 250 - 499 | £8.43 |
| 500 + | £8.26 |
- RS Stock No.:
- 244-0044
- Mfr. Part No.:
- BD34352EKV-E2
- Brand:
- ROHM
Technical Reference
Legislation and Compliance
Product Details
The ROHM 32-bit high sound quality Stereo Audio D/A converter has ROHM original sound quality design and realizing excellent numerical performance (SNR: 126 dB (Typ), THD+N: -112 dB (Typ)) suitable for high-end audio. Favourite sound is selectable by switching 2 kinds of digital FIR filters (Sharp Roll-Off, Slow Roll-Off). PCM I/F supports up to 768 kHz and DSD I/F supports up to 22.4 MHz.
SNR 126 dB (Typ), THD+N -112 dB (Typ) (Note 1)
Sampling Frequency 32 kHz to 768 kHz(Note 1)
2 Kinds of Digital FIR Filters (Note 1)
DSD 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz Available
Supports Stereo Mode (2ch) and Mono Mode (1ch)
Selectable 4 Device Addresses (38h, 3Ah, 3Ch, 3Eh)
Sampling Frequency 32 kHz to 768 kHz(Note 1)
2 Kinds of Digital FIR Filters (Note 1)
DSD 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz Available
Supports Stereo Mode (2ch) and Mono Mode (1ch)
Selectable 4 Device Addresses (38h, 3Ah, 3Ch, 3Eh)
Specifications
Attribute | Value |
|---|---|
| Resolution | 32 bit |
| Number of DAC Channels | 2 |
| Package Type | HTQFP64BV |
| Pin Count | 64 |
