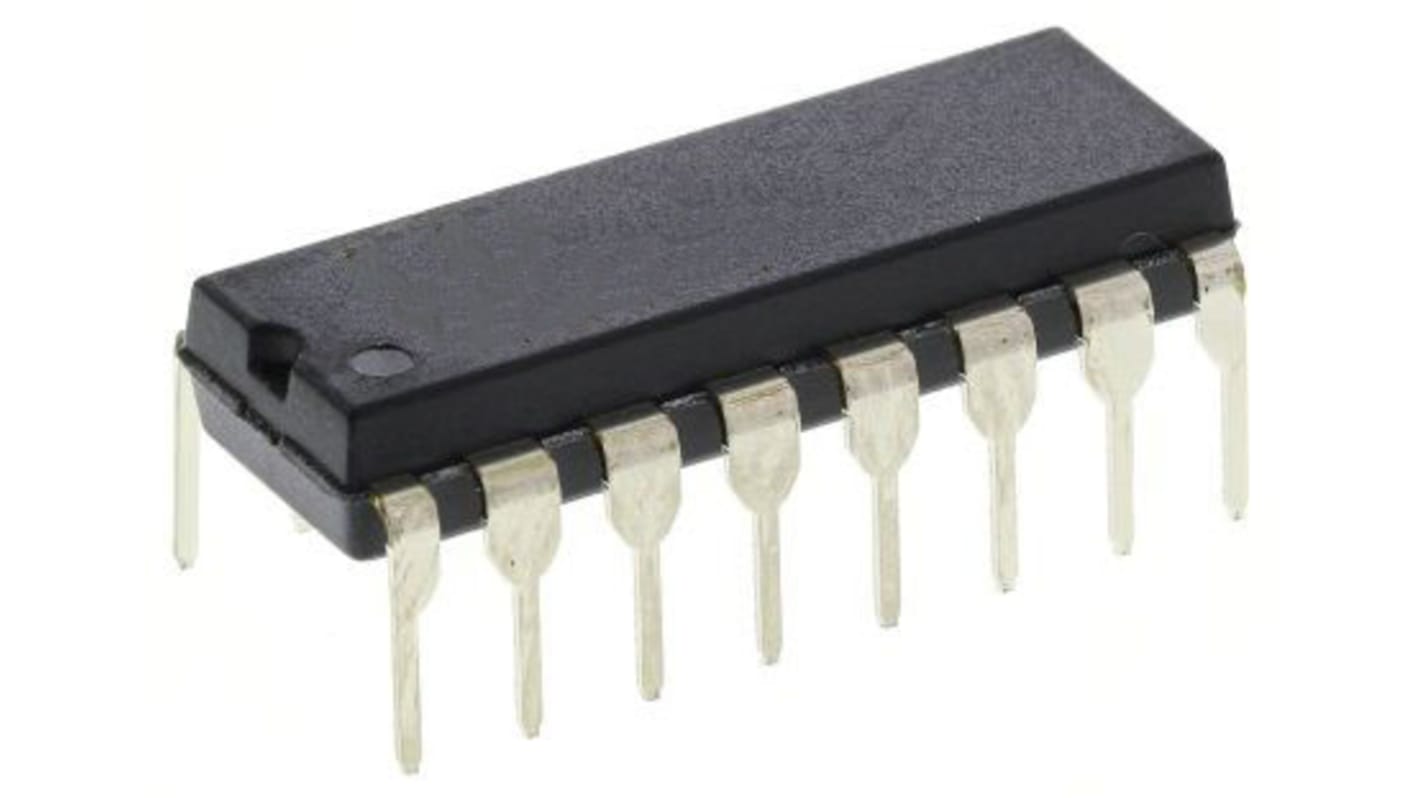

Maxim Integrated, DAC Dual 12 bit- Serial, 16-Pin DIP
- RS Stock No.:
- 190-5635P
- Mfr. Part No.:
- MX7543JN+
- Brand:
- Maxim Integrated
Discontinued
- RS Stock No.:
- 190-5635P
- Mfr. Part No.:
- MX7543JN+
- Brand:
- Maxim Integrated
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Maxim Integrated | |
| Resolution | 12 bit | |
| Integral Nonlinearity Error | ±1LSB | |
| Number of DAC Channels | 2 | |
| Mounting Type | Through Hole | |
| Package Type | DIP | |
| Pin Count | 16 | |
| Maximum Settling Time | 2ns | |
| Digital Interface Type | Serial | |
| Voltage Reference | External | |
| Typical Single Supply Voltage | 4.75 to 5.25 V | |
| Power Supply Type | Single | |
| Minimum Operating Temperature | 0 °C | |
| Maximum Operating Temperature | 70 °C | |
| Dimensions | 19.43 x 7.87 x 4.45mm | |
| Select all | ||
|---|---|---|
Brand Maxim Integrated | ||
Resolution 12 bit | ||
Integral Nonlinearity Error ±1LSB | ||
Number of DAC Channels 2 | ||
Mounting Type Through Hole | ||
Package Type DIP | ||
Pin Count 16 | ||
Maximum Settling Time 2ns | ||
Digital Interface Type Serial | ||
Voltage Reference External | ||
Typical Single Supply Voltage 4.75 to 5.25 V | ||
Power Supply Type Single | ||
Minimum Operating Temperature 0 °C | ||
Maximum Operating Temperature 70 °C | ||
Dimensions 19.43 x 7.87 x 4.45mm | ||
The MX7543 is a high precision 12-bit digital-to-analog converter (DAC) which uses a serial rather than parallel input scheme for loading data. Included are a serial-to-parallel shift register, a separate DAC register, and a multiplying DAC. Serial data is clocked in at the SRI pin on the rising or failing edge (user selected) of the strobe input. When the input register is full, the contents are transferred to the DAC register using the load input. A clear input is provided to initialize the part asynchronously. The MX7543 features excellent gain stability (5 ppm/°C max.) and operates from a single +5V power supply while dissipating about 10mW.
Serial Interface
± and ±1 LSB Linearity
CLEAR Input For Initialization
Single +5V Supply Operation
5 ppm/°C Gain Stability
1 LSB Max. Feedthrough At 10kHz
Small Size: 16-Lead DIP
Applications
Auto-Calibration Systems
Automatic Test Equipment
Programmable Attenuators
Remote Analog Systems
Robotics
± and ±1 LSB Linearity
CLEAR Input For Initialization
Single +5V Supply Operation
5 ppm/°C Gain Stability
1 LSB Max. Feedthrough At 10kHz
Small Size: 16-Lead DIP
