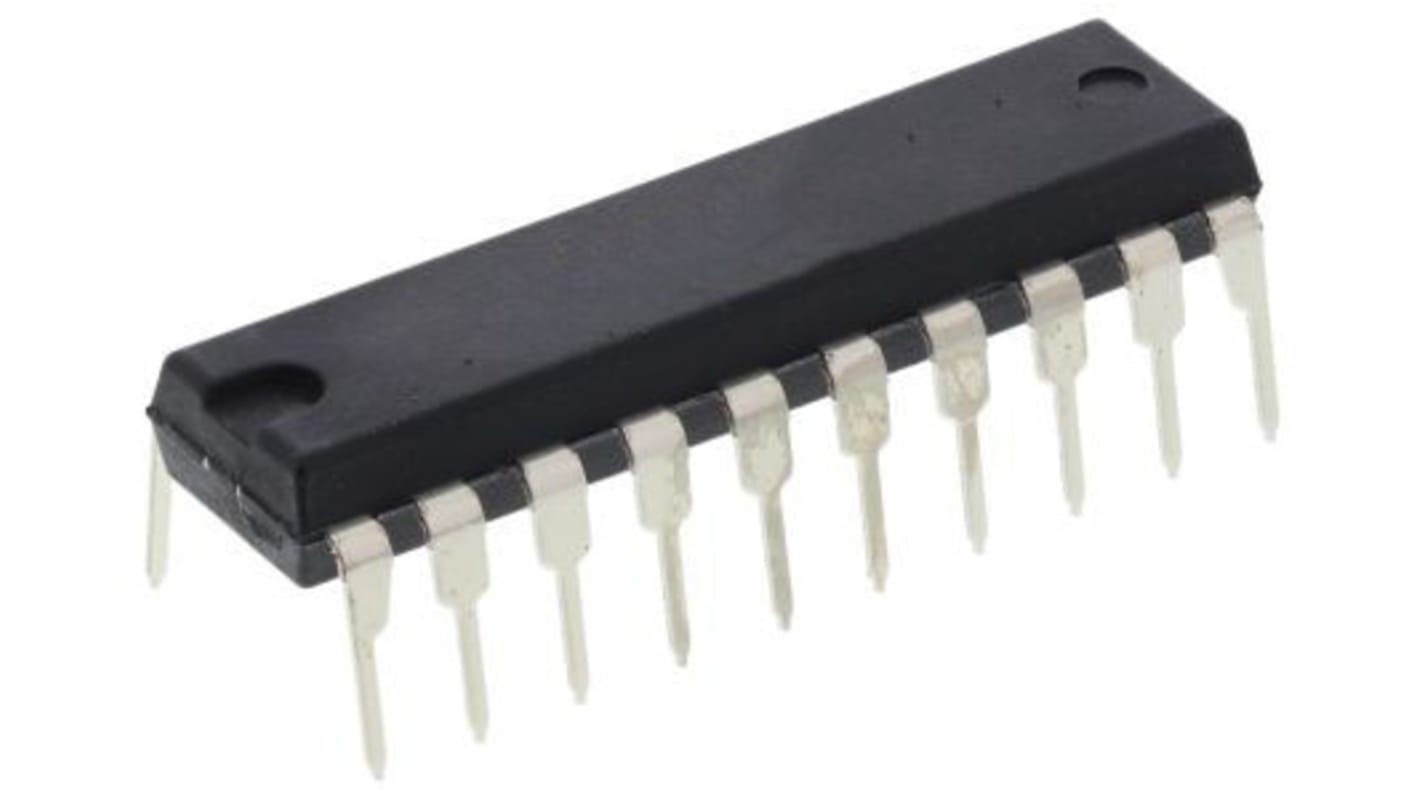

Maxim Integrated, DAC Quad 10 bit- SPI Serial, 20-Pin DIP
- RS Stock No.:
- 190-5121
- Mfr. Part No.:
- MAX5250BCPP+
- Brand:
- Maxim Integrated
8 In stock - FREE next working day delivery available
Added
Price Each
£11.60
(exc. VAT)
£13.92
(inc. VAT)
| Units | Per unit |
| 1 + | £11.60 |
- RS Stock No.:
- 190-5121
- Mfr. Part No.:
- MAX5250BCPP+
- Brand:
- Maxim Integrated
Technical Reference
Legislation and Compliance
Product Details
Four 10-Bit DACs with Configurable Output Amplifiers
+5V Single-Supply Operation
Low Supply Current: 0.85mA Normal Operation 10μA Shutdown Mode
Available in 20-Pin SSOP and DIP Packages
Power-On Reset Clears all Registers and DACs to Zero
SPI/QSPI and Microwire Compatible
Simultaneous or Independent Control of DACs through 3-Wire Serial Interface
User-Programmable Digital Output
Schmitt-Trigger Inputs for Direct Optocoupler Interface
12-Bit Upgrade Available: MAX525
Applications
Automated Test Equipment (ATE)
Digital Offset and Gain Adjustments
Industrial Process Controls
Microprocessor-Controlled Systems
Motion Control
Remote Industrial Controls
+5V Single-Supply Operation
Low Supply Current: 0.85mA Normal Operation 10μA Shutdown Mode
Available in 20-Pin SSOP and DIP Packages
Power-On Reset Clears all Registers and DACs to Zero
SPI/QSPI and Microwire Compatible
Simultaneous or Independent Control of DACs through 3-Wire Serial Interface
User-Programmable Digital Output
Schmitt-Trigger Inputs for Direct Optocoupler Interface
12-Bit Upgrade Available: MAX525
Applications
Automated Test Equipment (ATE)
Digital Offset and Gain Adjustments
Industrial Process Controls
Microprocessor-Controlled Systems
Motion Control
Remote Industrial Controls
Specifications
Attribute | Value |
|---|---|
| Architecture | R-2R |
| Resolution | 10 bit |
| Integral Nonlinearity Error | ±1LSB |
| Number of DAC Channels | 4 |
| Mounting Type | Surface Mount |
| Package Type | DIP |
| Pin Count | 20 |
| Maximum Settling Time | 10µs |
| Digital Interface Type | SPI Serial |
| Output Polarity | Bipolar, Unipolar |
| Voltage Reference | External |
| Typical Single Supply Voltage | 4.5 to 5.5 V |
| Power Supply Type | Single |
| Dimensions | 26.54 x 7.87 x 4.45mm |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | 70 °C |
