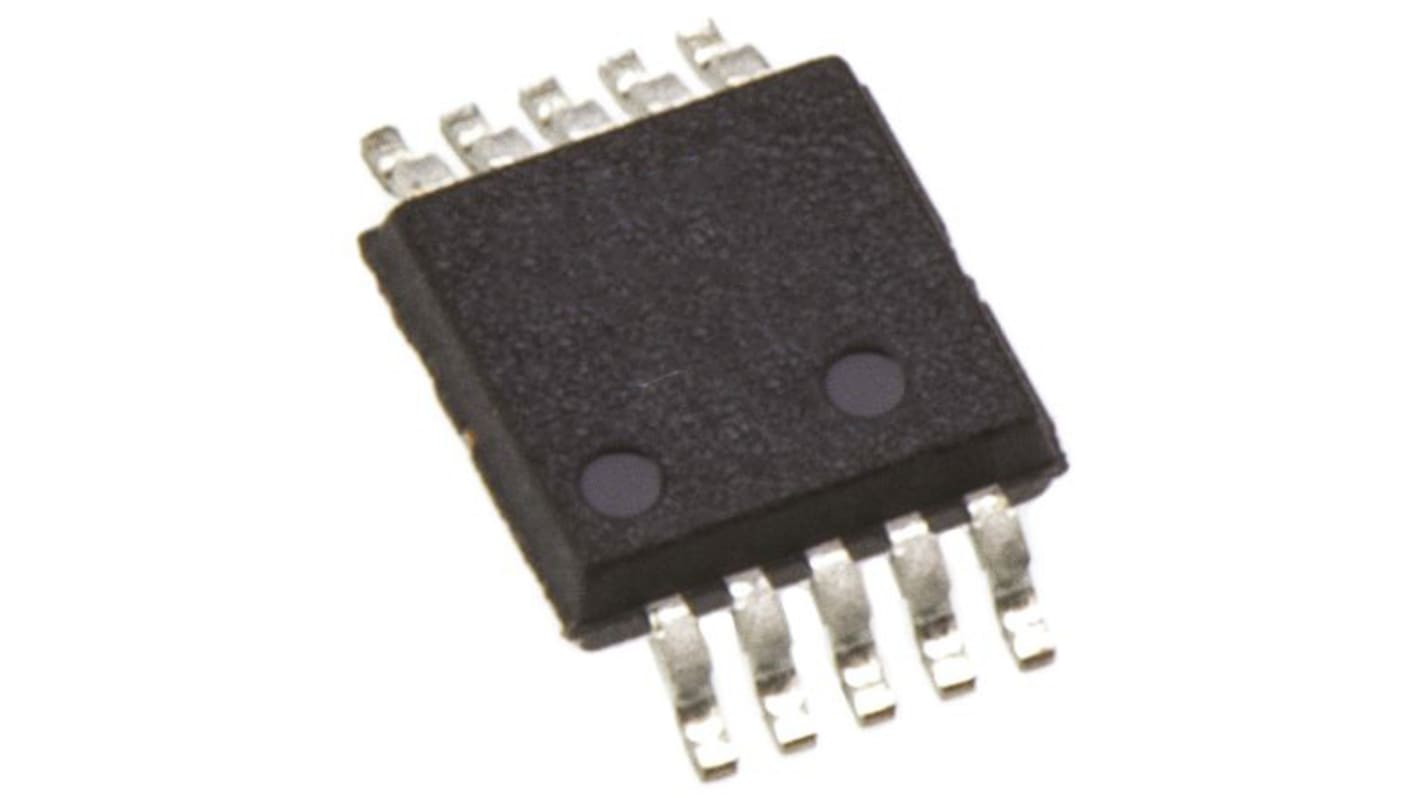

Analog Devices, DAC Dual 16 bit- ±1%FSR, 10-Pin MSOP

View this category
Discontinued
Packaging Options:
RS Stock No.:
183-2025
Mfr. Part No.:
AD5663RBRMZ-3
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Architecture

Resistor String

Resolution

16 bit

Full Scale Error

±1%FSR

Number of DAC Channels

2

Mounting Type

Surface Mount

Package Type

MSOP

Pin Count

10

Maximum Settling Time

7µs

Output Polarity

Bipolar

Voltage Reference

External, Internal

Power Supply Type

Single

Typical Single Supply Voltage

2.7 to 5.5 V

Maximum Operating Temperature

105 °C

Dimensions

3.1 x 3.1 x 0.95mm

Minimum Operating Temperature

-40 °C

COO (Country of Origin):
MY
Low power, smallest pin-compatible, dual nanoDAC
AD5663R: 16 bits
AD5643R: 14 bits
AD5623R: 12 bits
User-selectable external or internal reference
External reference default
On-chip 1.25 V/2.5 V, 5 ppm/°C reference
10-lead MSOP and 3 mm x
3 mm LFCSP
2.7 V to 5.5 V power supply
Guaranteed monotonic by design
Power-on reset to zero scale
Per channel power-down
Serial interface up to 50 MHz
Hardware LDAC and CLR functions
Applications
Process control
Data acquisition systems
Portable battery-powered instruments
Digital gain and offset adjustment
Programmable voltage and current sources
Programmable attenuators
