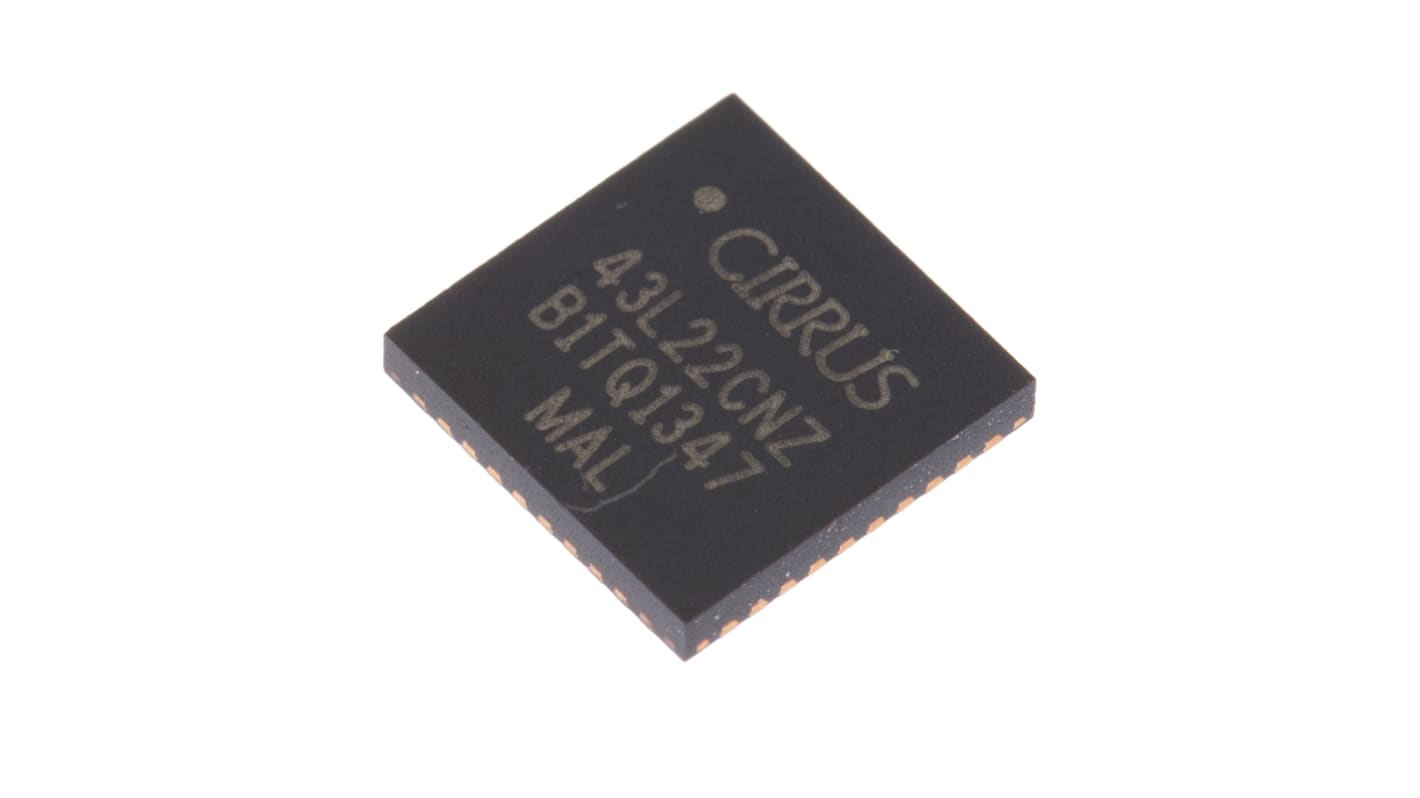

Cirrus Logic, Audio DAC 24 bit-, 96ksps, Serial, 40-Pin QFN
- RS Stock No.:
- 169-8392
- Mfr. Part No.:
- CS43L22-CNZ
- Brand:
- Cirrus Logic
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 169-8392
- Mfr. Part No.:
- CS43L22-CNZ
- Brand:
- Cirrus Logic
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cirrus Logic | |
| Architecture | Delta Sigma | |
| Resolution | 24 bit | |
| Conversion Rate | 96ksps | |
| Number of DAC Channels | 1 | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 40 | |
| Digital Interface Type | Serial | |
| Output Polarity | Bipolar | |
| Voltage Reference | Internal | |
| Typical Single Supply Voltage | 2.5 V | |
| Power Supply Type | Single | |
| Maximum Operating Temperature | 85 °C | |
| Minimum Operating Temperature | -40 °C | |
| Dimensions | 6 x 6 x 0.95mm | |
Select all | ||
|---|---|---|
Brand Cirrus Logic | ||
Architecture Delta Sigma | ||
Resolution 24 bit | ||
Conversion Rate 96ksps | ||
Number of DAC Channels 1 | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 40 | ||
Digital Interface Type Serial | ||
Output Polarity Bipolar | ||
Voltage Reference Internal | ||
Typical Single Supply Voltage 2.5 V | ||
Power Supply Type Single | ||
Maximum Operating Temperature 85 °C | ||
Minimum Operating Temperature -40 °C | ||
Dimensions 6 x 6 x 0.95mm | ||
- COO (Country of Origin):
- PH
CS43L22, Portable Audio DAC with Integrated Class-D Speaker Driver, Cirrus Logic
Audio Amplifiers, Cirrus Logic
