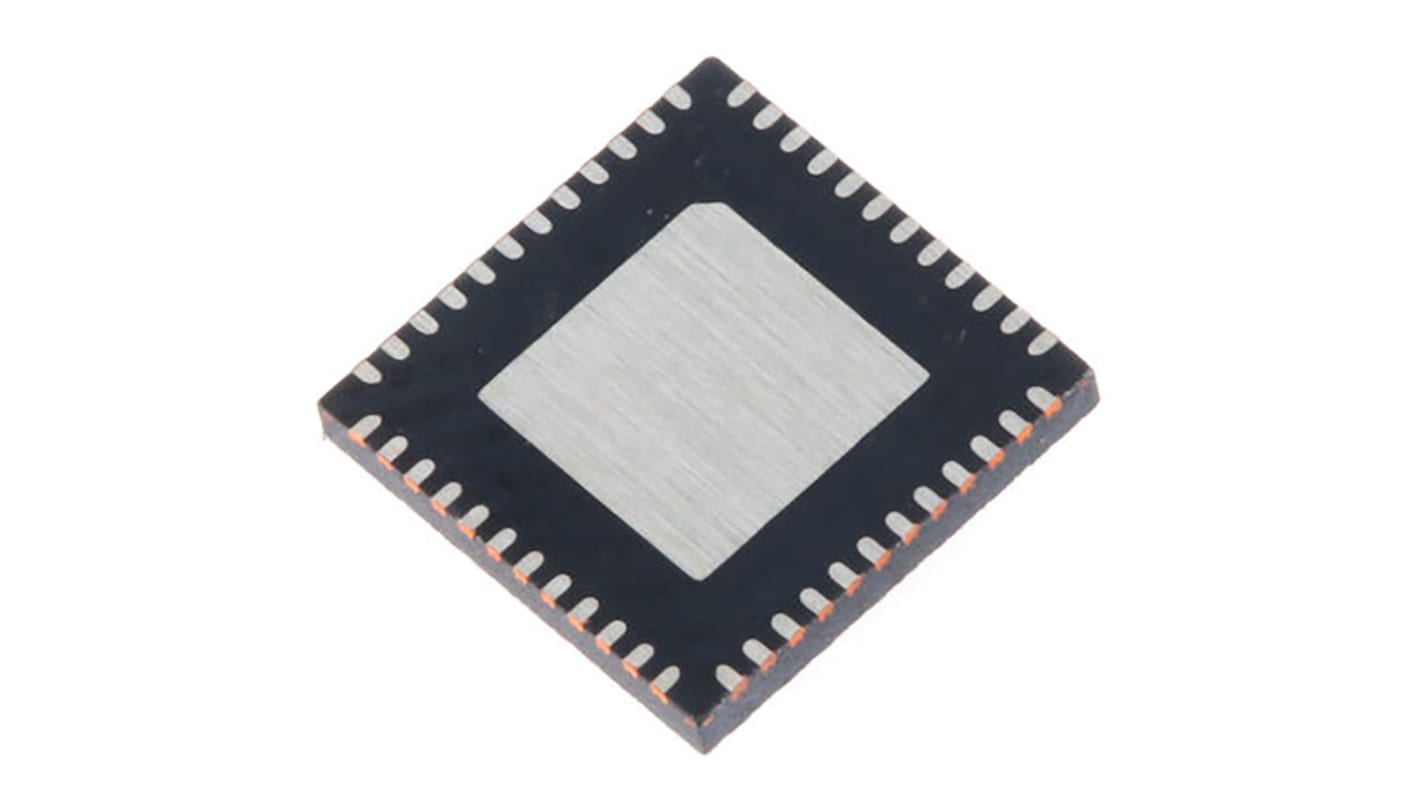

Texas Instruments, DAC Octal 14 bit- ±4LSB Serial (SPI/QSPI/Microwire), 48-Pin QFN
- RS Stock No.:
- 162-6141
- Mfr. Part No.:
- DAC8218SRGZT
- Brand:
- Texas Instruments
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 162-6141
- Mfr. Part No.:
- DAC8218SRGZT
- Brand:
- Texas Instruments
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Architecture | Resistor String | |
| Resolution | 14 bit | |
| Full Scale Error | ±4LSB | |
| Integral Nonlinearity Error | ±1LSB | |
| Number of DAC Channels | 8 | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 48 | |
| Maximum Settling Time | 15µs | |
| Digital Interface Type | Serial (SPI/QSPI/Microwire) | |
| Output Polarity | Bipolar, Unipolar | |
| Voltage Reference | External | |
| Typical Single Supply Voltage | 5.5 V | |
| Power Supply Type | Dual, Single | |
| Maximum Operating Temperature | 105 °C | |
| Dimensions | 7 x 7 x 0.9mm | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Architecture Resistor String | ||
Resolution 14 bit | ||
Full Scale Error ±4LSB | ||
Integral Nonlinearity Error ±1LSB | ||
Number of DAC Channels 8 | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 48 | ||
Maximum Settling Time 15µs | ||
Digital Interface Type Serial (SPI/QSPI/Microwire) | ||
Output Polarity Bipolar, Unipolar | ||
Voltage Reference External | ||
Typical Single Supply Voltage 5.5 V | ||
Power Supply Type Dual, Single | ||
Maximum Operating Temperature 105 °C | ||
Dimensions 7 x 7 x 0.9mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- MY
