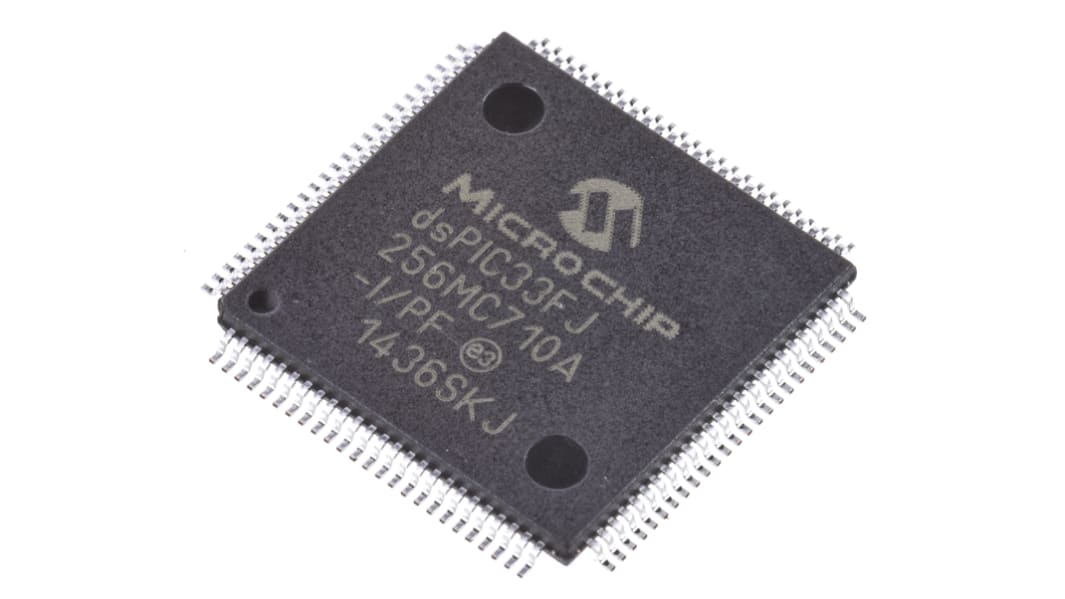

dsPIC33FJ256MC710A-I/PF Microchip, 16bit Digital Signal Processor 40MIPS 256 kB Flash 100-Pin TQFP
- RS Stock No.:
- 666-9692
- Mfr. Part No.:
- dsPIC33FJ256MC710A-I/PF
- Brand:
- Microchip
1108 In stock - FREE next working day delivery available
Added
Price Each
£8.97
(exc. VAT)
£10.76
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £8.97 |
| 25 - 99 | £8.69 |
| 100 + | £8.39 |
- RS Stock No.:
- 666-9692
- Mfr. Part No.:
- dsPIC33FJ256MC710A-I/PF
- Brand:
- Microchip
Technical Reference
Legislation and Compliance
Product Details
dsPIC33F Digital Signal Controllers
The dsPIC33F Digital Signal Controllers offer the performance of a DSP with the simplicity of an MCU. The 40MIPS dsPIC33F core is designed to execute digital filter algorithms, high-speed precision digital control loops and digital audio and speech processing.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
dsPIC33F DSCs with Motor Control peripherals enable the design of high-performance, precision motor control systems. The dsPIC33F SMPS DSCs provide on-chip peripherals specifically designed for high-performance, digital power supplies. SMPS peripherals include high speed and high resolution PWM, fast ADC and analogue comparators.
Specifications
Attribute | Value |
|---|---|
| Maximum Frequency | 40MIPS |
| Data Bus Width | 16bit |
| RAM Size | 30 kB |
| Instruction Set Architecture | RISC |
| Program Memory Size | 256 kB |
| Program Memory Type | Flash |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 100 |
| Typical Operating Supply Voltage | 3 to 3.6 V |
| Number of UART Channels | 2 |
| Dimensions | 14 x 14 x 1.05mm |
| Width | 14mm |
| PWM Channels | 8 |
| Pulse Width Modulation | 8 x 16 bit, 8(16 bit) |
| Number of PCI Channels | 0 |
| Number of I2C Channels | 2 |
| Number of Timers | 9 |
| Number of Ethernet Channels | 0 |
| USB Channels | 0 |
| Number of SPI Channels | 2 |
| ADC Resolution | 10 bit, 12bit |
| Timers | 9 x 16 bit |
| Number of USART Channels | 0 |
| Number of LIN Channels | 0 |
| Number of CAN Channels | 2 |
| ADC Channels | 24 |
| Number of ADC Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Number of PWM Units | 9 |
| Length | 14mm |
| ADCs | 2(24 x 10/12 bit) |
| Minimum Operating Temperature | -40 °C |
| PWM Resolution | 16bit |
| Timer Resolution | 16bit |
| Height | 1.05mm |
