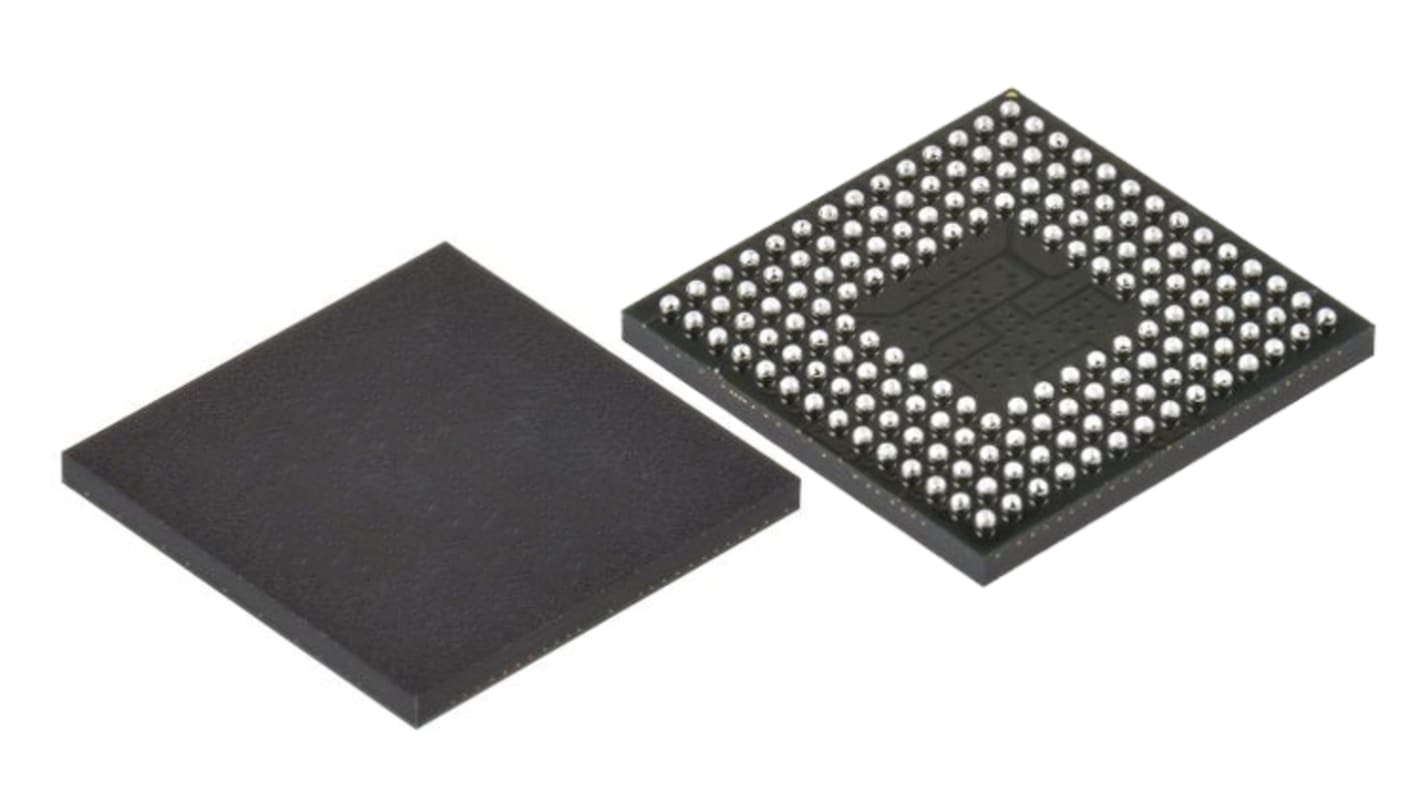

ADSP-21161NKCAZ100 Analog Devices SHARC, 32bit Digital Signal Processor 100MHz 125 kB SRAM 225-Pin CSP_BGA

View all Digital Signal Processors
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
216-8525
Mfr. Part No.:
ADSP-21161NKCAZ100
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Maximum Frequency

100MHz

Series

SHARC

Data Bus Width

32bit

RAM Size

125 kB

Program Memory Size

125 kB

Program Memory Type

SRAM

Package Type

CSP_BGA

Pin Count

225

The Analog Devices ADSP-21992 is a mixed-signal DSP controller based on the ADSP-2199x DSP core, suitable for a variety of high performance industrial motor control and signal processing applications that require the combination of a high performance DSP and the mixed-signal integration of embedded control peripherals, such as analog-to-digital conversion with communications interfaces such as CAN. Target applications include industrial motor drives, uninterruptible power supplies, optical networking control, data acquisition systems, test and measurement Systems, and portable instrumentation.

ADSP-2199x, 16-bit, fixed-point DSP core with up to 160
MIPS sustained performance
Dedicated 32-bit encoder interface unit with companion
encoder event timer
Flexible power management with selectable power-down
and idle modes
Operating temperature ranges of –40C to +85C and –40C
to +125C
