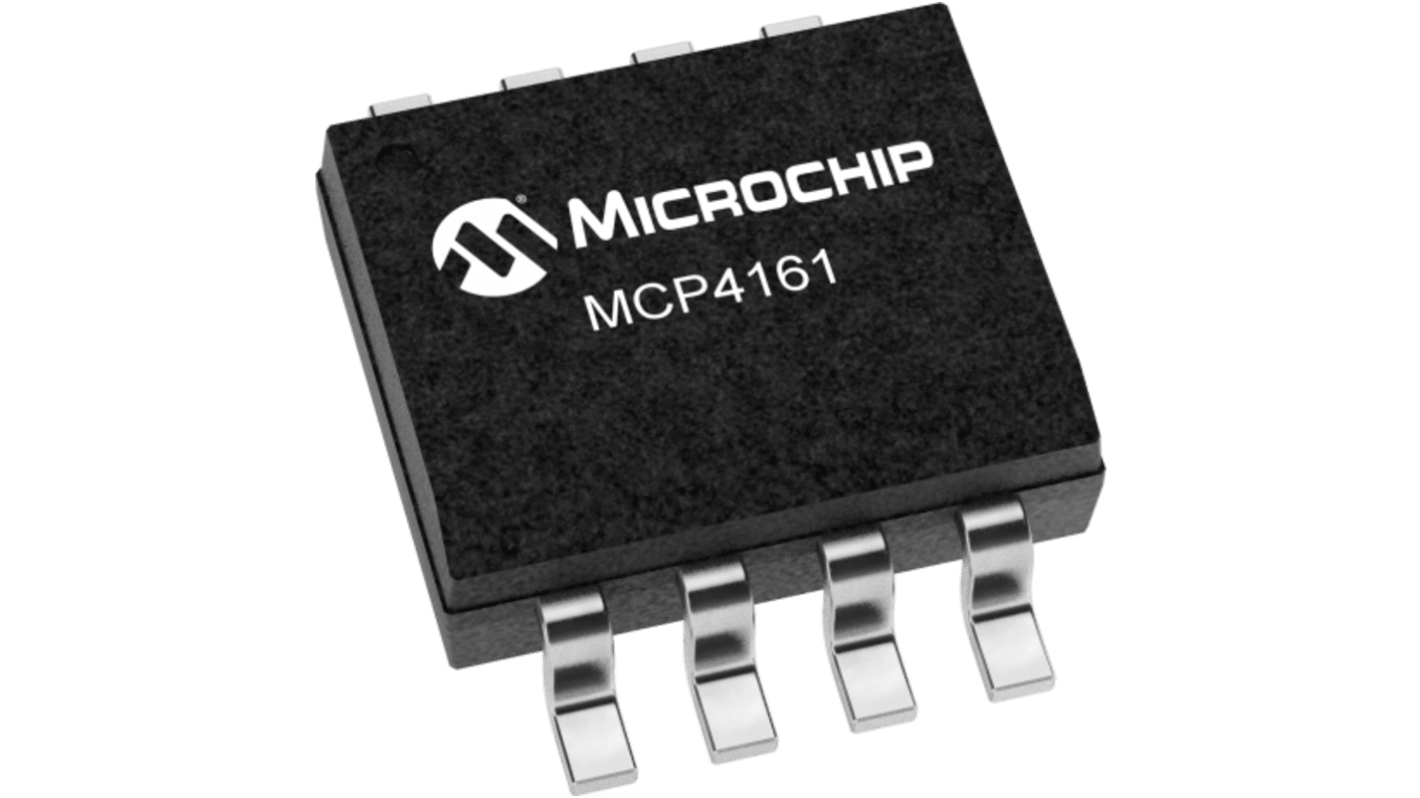

Microchip MCP4161-503E/SN Digital Potentiometer 256-Position 100 kΩ Linear 1-Channel 8-Pin SOIC
- RS Stock No.:
- 649-398
- Mfr. Part No.:
- MCP4161-503E/SN
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 5 units)*
£4.26
(exc. VAT)
£5.11
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 375 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £0.852 | £4.26 |
| 50 - 245 | £0.836 | £4.18 |
| 250 - 495 | £0.812 | £4.06 |
| 500 + | £0.76 | £3.80 |
*price indicative
- RS Stock No.:
- 649-398
- Mfr. Part No.:
- MCP4161-503E/SN
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Digital Potentiometer | |
| Resistance | 100kΩ | |
| Taper Type | Linear | |
| Memory Type | Volatile | |
| Temperature Coefficient | 15 ppm/°C | |
| Number of Pots per Package | 1 | |
| Interface Type | SPI | |
| Package Type | SOIC | |
| Minimum Supply Voltage | 1.8V | |
| Pin Count | 8 | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Series | MCP4 | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Digital Potentiometer | ||
Resistance 100kΩ | ||
Taper Type Linear | ||
Memory Type Volatile | ||
Temperature Coefficient 15 ppm/°C | ||
Number of Pots per Package 1 | ||
Interface Type SPI | ||
Package Type SOIC | ||
Minimum Supply Voltage 1.8V | ||
Pin Count 8 | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Series MCP4 | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Microchip 8-bit SPI digital potentiometers with nonvolatile memory provide a broad range of product options through an SPI interface, and feature Wiper Lock technology that enables secure storage of application-specific calibration settings in the EEPROM.
Brown-out reset protection at 1.5V typical
Serial interface inactive current of 2.5 μA typical
High-voltage tolerant digital inputs up to 12.5V
