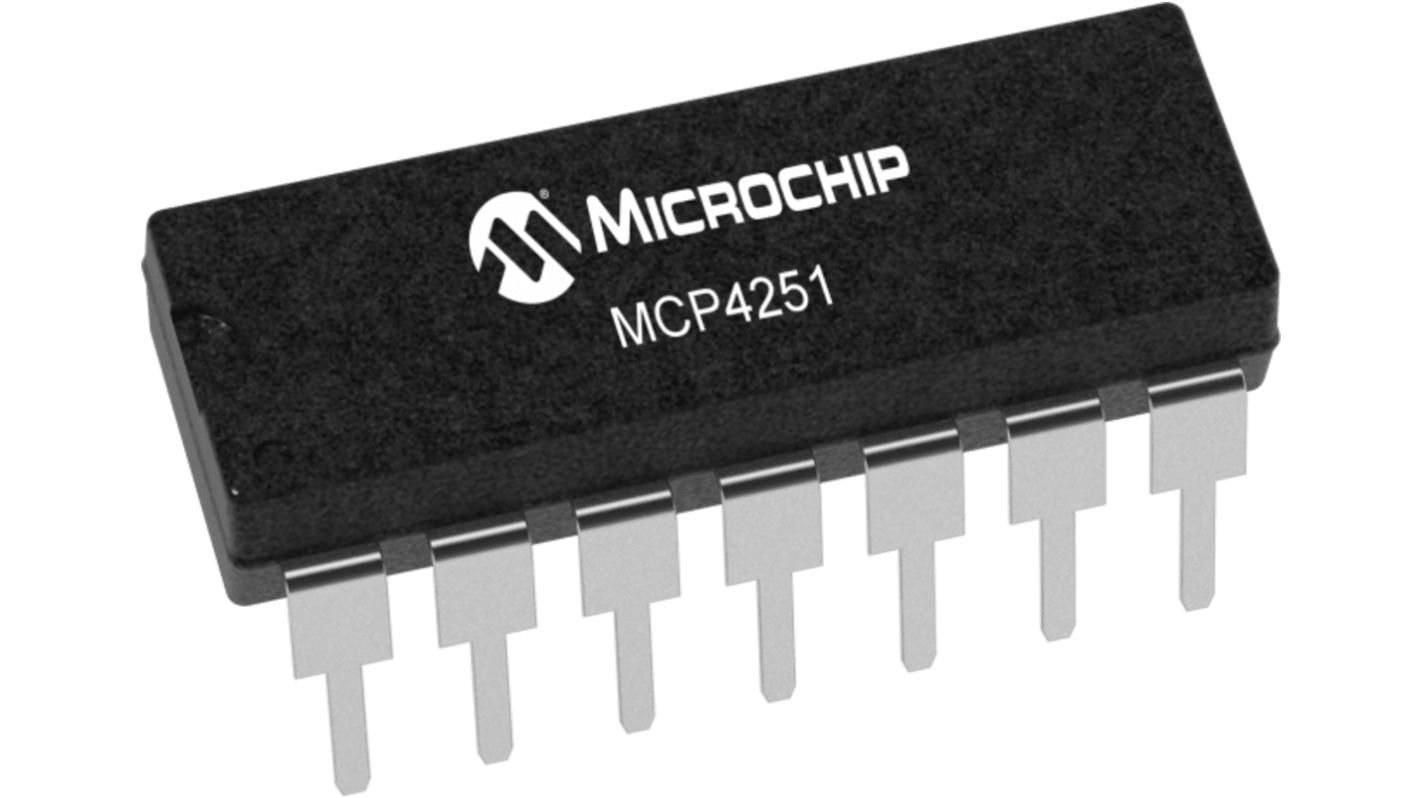

Microchip MCP4251-502E/P Digital Potentiometer 257-Position 5 kΩ Linear 2-Channel 14-Pin PDIP-14
- RS Stock No.:
- 598-990
- Mfr. Part No.:
- MCP4251-502E/P
- Brand:
- Microchip
Subtotal (1 box of 360 units)*
£272.88
(exc. VAT)
£327.60
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Box* |
|---|---|---|
| 360 + | £0.758 | £272.88 |
*price indicative
- RS Stock No.:
- 598-990
- Mfr. Part No.:
- MCP4251-502E/P
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Product Type | Digital Potentiometer | |
| Resistance | 5kΩ | |
| Taper Type | Linear | |
| Temperature Coefficient | 150 ppm/°C | |
| Memory Type | Volatile | |
| Number of Pots per Package | 2 | |
| Mount Type | PCB | |
| Interface Type | 3 Wire | |
| Package Type | PDIP-14 | |
| Pin Count | 14 | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Height | 3.3mm | |
| Length | 19.3mm | |
| Standards/Approvals | RoHS Compliant | |
| Series | MCP4251 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Product Type Digital Potentiometer | ||
Resistance 5kΩ | ||
Taper Type Linear | ||
Temperature Coefficient 150 ppm/°C | ||
Memory Type Volatile | ||
Number of Pots per Package 2 | ||
Mount Type PCB | ||
Interface Type 3 Wire | ||
Package Type PDIP-14 | ||
Pin Count 14 | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Height 3.3mm | ||
Length 19.3mm | ||
Standards/Approvals RoHS Compliant | ||
Series MCP4251 | ||
Automotive Standard No | ||
The Microchip Digital Potentiometer is designed for precise adjustment and control in a myriad of electronic applications. The device integrates seamlessly into circuits requiring tuning or calibration, offering a reliable and user-friendly solution for both novice and experienced engineers alike. Its robust architecture allows for application in varied environments, providing optimal performance across multiple platforms. The inclusion of a simple serial interface makes integration into existing designs straightforward, enabling users to achieve optimal results without the need for extensive modifications. The sophisticated engineering behind this component ensures it meets the rigorous demands of modern electronic designs, thus making it an essential addition to your toolkit.
Delivers adjustable resistance for precise tuning in circuits
Integrates a simple serial interface for easy control
Supports a wide range of applications from audio to industrial
Offers high reliability and durability under demanding conditions
Features a compact design saving space in your projects
Ensures consistent performance reducing the need for recalibration
Facilitates quick prototyping and testing due to its versatile nature
