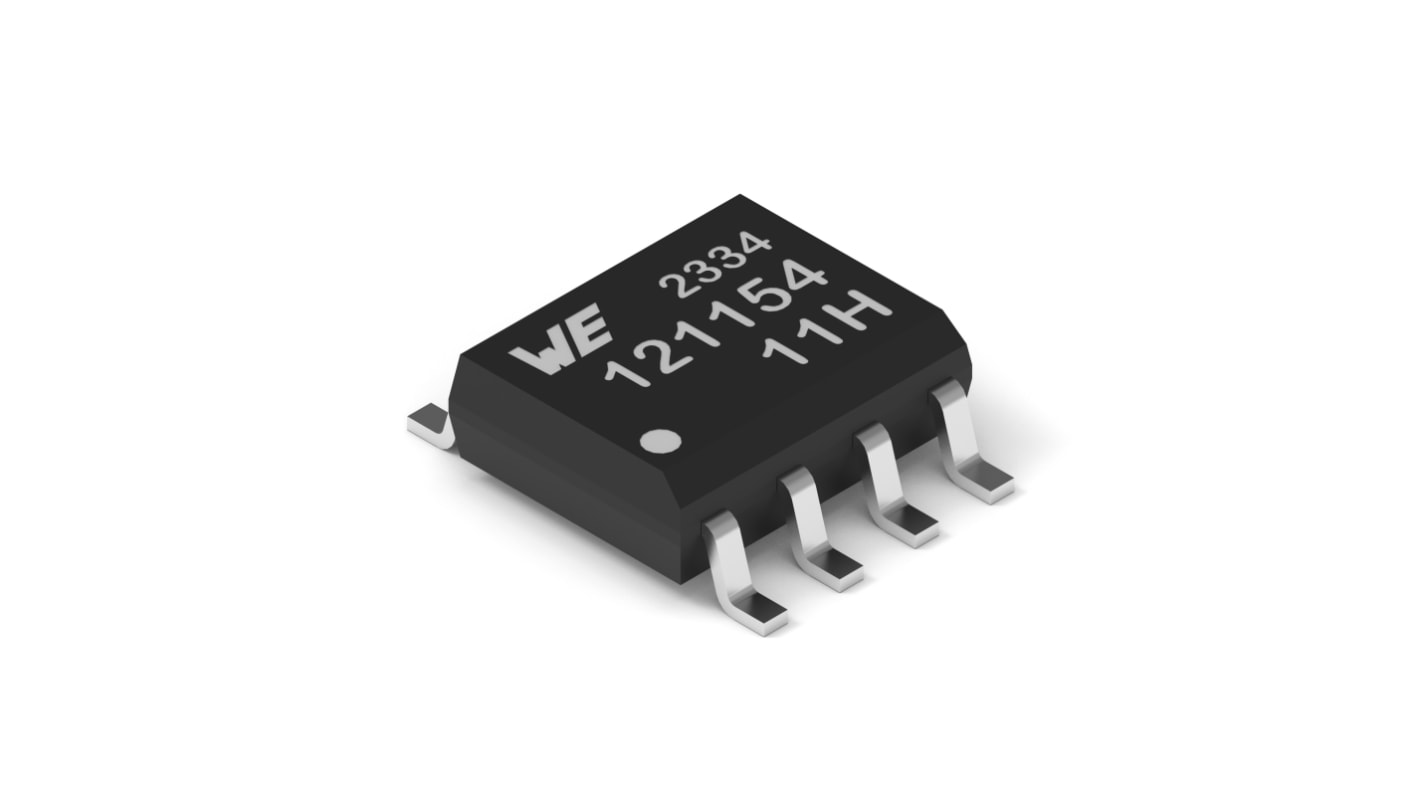

18012115411H Wurth Elektronik, 2-Channel Digital Isolator 150 Mbps, 3.75 kV, 2.375 to 5.5 V, 8-Pin SOIC-8 NB
- RS Stock No.:
- 288-0545
- Mfr. Part No.:
- 18012115411H
- Brand:
- Wurth Elektronik
Subtotal (1 reel of 2500 units)*
£2,790.00
(exc. VAT)
£3,347.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 02 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £1.116 | £2,790.00 |
*price indicative
- RS Stock No.:
- 288-0545
- Mfr. Part No.:
- 18012115411H
- Brand:
- Wurth Elektronik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wurth Elektronik | |
| Product Type | Digital Isolator | |
| Number of Channels | 2 | |
| Maximum Data Rate | 150Mbps | |
| Package Type | SOIC-8 NB | |
| Data Rate | 150Mbps | |
| Maximum Forward Voltage | 5.5V | |
| Maximum Input Current | 20μA | |
| Propagation Delay Time | 15ns | |
| Isolation Voltage | 3.75kV | |
| Rise Time | 4ns | |
| Number of Pins | 8 | |
| Mount Type | Surface | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -40°C | |
| Depth | 1.5mm | |
| Standards/Approvals | UL1577, RoHS, REACH, IEC 60747-17 pending | |
| Series | WPME-CDIS | |
| Length | 4.9mm | |
| Package Style | SOIC | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Wurth Elektronik | ||
Product Type Digital Isolator | ||
Number of Channels 2 | ||
Maximum Data Rate 150Mbps | ||
Package Type SOIC-8 NB | ||
Data Rate 150Mbps | ||
Maximum Forward Voltage 5.5V | ||
Maximum Input Current 20μA | ||
Propagation Delay Time 15ns | ||
Isolation Voltage 3.75kV | ||
Rise Time 4ns | ||
Number of Pins 8 | ||
Mount Type Surface | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -40°C | ||
Depth 1.5mm | ||
Standards/Approvals UL1577, RoHS, REACH, IEC 60747-17 pending | ||
Series WPME-CDIS | ||
Length 4.9mm | ||
Package Style SOIC | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Wurth Elektronik 2 Channel Capacitive Digital Isolator provides capacitive isolation between the primary and secondary sides of the device. The digital isolator requires two supplies, one for the primary side and one for the secondary side. This digital isolator ensures fast time to market and low development costs.
UL1577 certified
RoHS and REACH compliant
Data rate up to 150 Mbps
Low propagation delay 12 ns typical
High default channel output status
