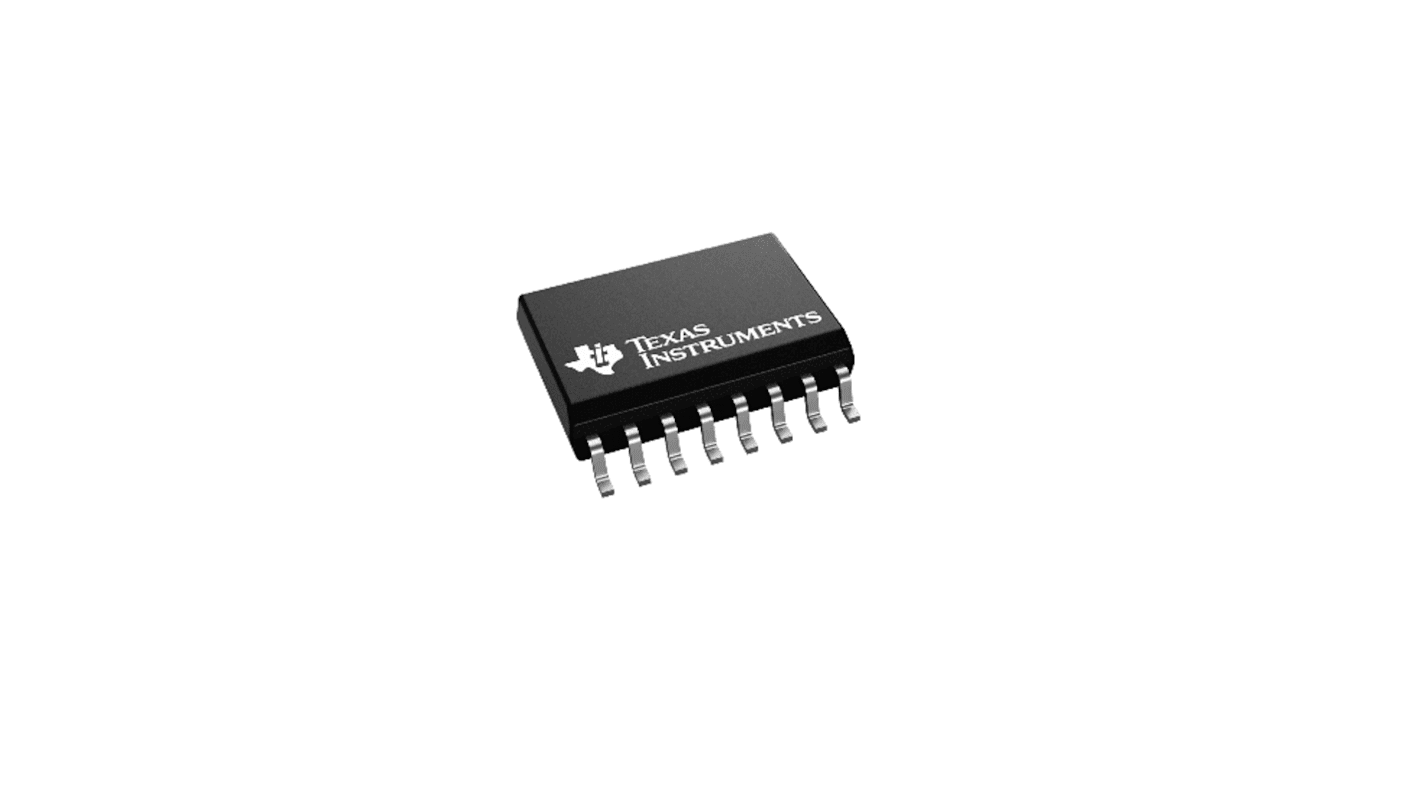

ISO7230MDW Texas Instruments, 3-Channel Digital Isolator 150 Mbps, 2.5 kVrms, 3.3/5 V, 16-Pin SOIC

View all Digital Isolator ICs
Bulk discount available

Subtotal (1 pack of 2 units)*

£13.69

(exc. VAT)

£16.428

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 22 unit(s), ready to ship

Units
Per unit
Per Pack*
2 - 8£6.845£13.69
10 +£6.155£12.31

*price indicative

Packaging Options:
RS Stock No.:
268-7496
Mfr. Part No.:
ISO7230MDW
Brand:
Texas Instruments
Find similar products by selecting one or more attributes.
Select all

Brand

Texas Instruments

Maximum Data Rate

150Mbps

Product Type

Digital Isolator

Number of Channels

3

Package Type

SOIC

Data Rate

150Mbps

Maximum Forward Voltage

5.5V

Maximum Input Current

10μA

Propagation Delay Time

2ns

Isolation Voltage

2.5kVrms

Number of Pins

16

Mount Type

Through Hole

Maximum Operating Temperature

125°C

Minimum Operating Temperature

-40°C

Standards/Approvals

DIN V VDE V 0884-10, IEC 60950-1, UL 1577, CSA Component Acceptance Notice 5A

Series

ISO7230

Automotive Standard

No

The Texas Instrument digital isolators are triple channel digital isolators each with multiple channel configurations and output enable functions. These devices have logic input and output buffers separated by TIs silicon dioxide isolation barrier. Used in conjunction with isolated power supplies. These devices Block high voltage, isolate grounds and prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry.

High electromagnetic immunity

Low channel to channel output skew

IEC 60950 1 end equipment standard

Low jitter content
