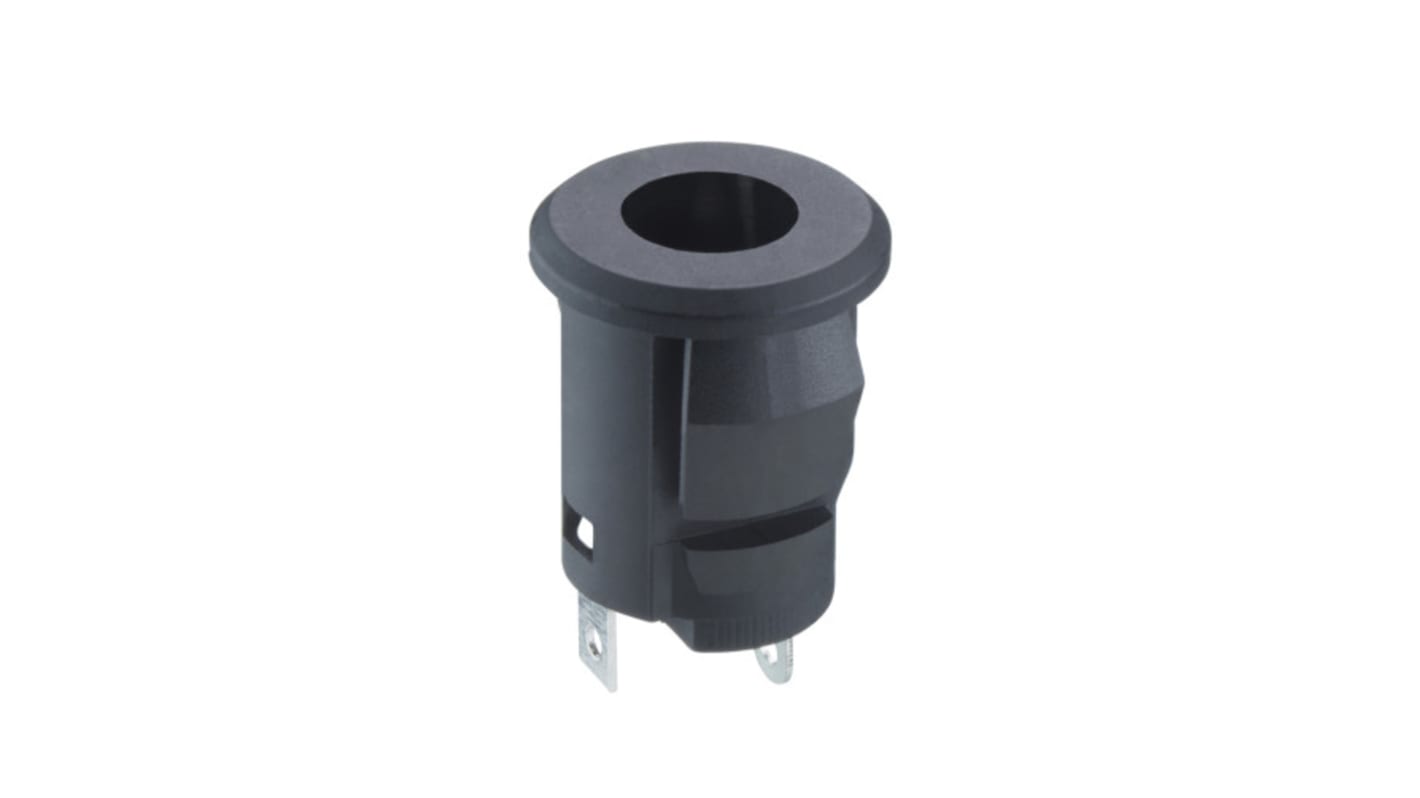

Lumberg, 1610 DC Socket Rated At 2A, 30 V, Snap-In, length 14.4mm, Tin
- RS Stock No.:
- 285-6721
- Mfr. Part No.:
- 1610 06
- Brand:
- Lumberg
Save 11% when you buy 100 units
Subtotal (1 pack of 2 units)*
£2.06
(exc. VAT)
£2.48
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 214 unit(s) ready to ship
- Plus 34 unit(s) ready to ship from another location
- Plus 172 unit(s) shipping from 08 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £1.03 | £2.06 |
| 10 - 48 | £1.00 | £2.00 |
| 50 - 98 | £0.96 | £1.92 |
| 100 + | £0.915 | £1.83 |
*price indicative
- RS Stock No.:
- 285-6721
- Mfr. Part No.:
- 1610 06
- Brand:
- Lumberg
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lumberg | |
| DC Power Connector Type | DC Socket | |
| Current Rating | 2A | |
| Inner Diameter | 2mm | |
| Outer Diameter | 5.8mm | |
| Body Orientation | Straight | |
| Voltage Rating | 30 V | |
| Width | 12mm | |
| Length | 14.4mm | |
| Mounting Type | Snap-In | |
| Contact Plating | Tin | |
| Series | 1610 | |
Select all | ||
|---|---|---|
Brand Lumberg | ||
DC Power Connector Type DC Socket | ||
Current Rating 2A | ||
Inner Diameter 2mm | ||
Outer Diameter 5.8mm | ||
Body Orientation Straight | ||
Voltage Rating 30 V | ||
Width 12mm | ||
Length 14.4mm | ||
Mounting Type Snap-In | ||
Contact Plating Tin | ||
Series 1610 | ||
- COO (Country of Origin):
- CN
The Lumberg power supply chassis socket, designed for snap-in front side mounting, comes in a straight version with solder eyes for easy installation and reliable connectivity.
Temperature range -25 to +85 °C
Insulating body PA, V-0 according to UL94
Insulating body PA, V-0 according to UL94
