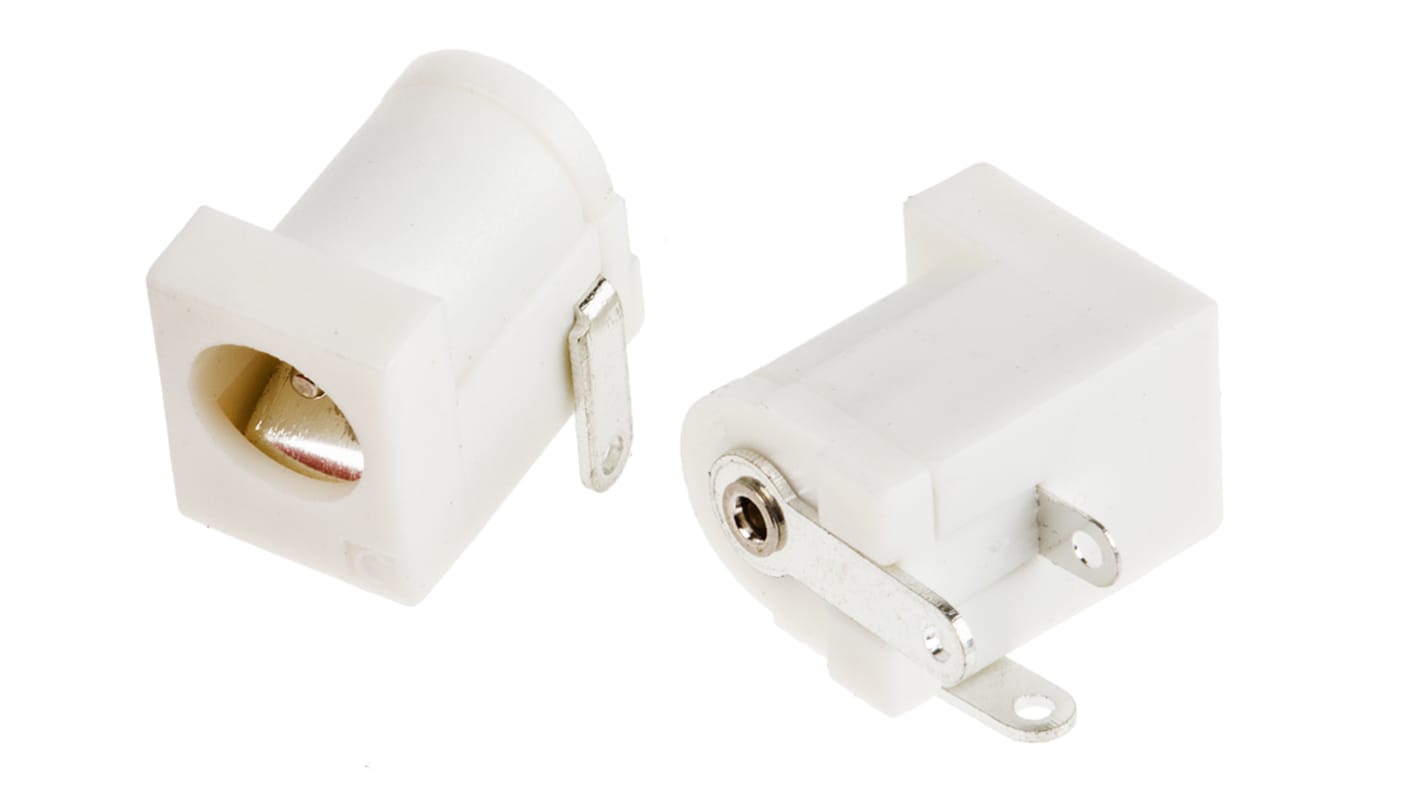

RS PRO Right Angle DC Socket Rated At 5.0A, 12.0 V, PCB Mount, length 14.5mm, Tin
- RS Stock No.:
- 143-8915
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£12.98
(exc. VAT)
£15.575
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 95 unit(s) shipping from 22 October 2025
- Plus 25 unit(s) shipping from 22 October 2025
- Plus 80 unit(s) shipping from 24 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
5 - 20 | £2.596 | £12.98 |
25 - 45 | £2.464 | £12.32 |
50 - 95 | £2.334 | £11.67 |
100 + | £2.202 | £11.01 |
*price indicative
- RS Stock No.:
- 143-8915
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
DC Power Connector Type | DC Socket | |
Current Rating | 5.0A | |
Body Orientation | Right Angle | |
Voltage Rating | 12.0 V | |
Length | 14.5mm | |
Width | 9mm | |
Mounting Type | PCB Mount | |
Pin Diameter | 2.1 mm, 2.5 mm | |
Contact Plating | Tin | |
Contact Material | Copper Alloy | |
Select all | ||
---|---|---|
Brand RS PRO | ||
DC Power Connector Type DC Socket | ||
Current Rating 5.0A | ||
Body Orientation Right Angle | ||
Voltage Rating 12.0 V | ||
Length 14.5mm | ||
Width 9mm | ||
Mounting Type PCB Mount | ||
Pin Diameter 2.1 mm, 2.5 mm | ||
Contact Plating Tin | ||
Contact Material Copper Alloy | ||
Dual DC Power Socket, RS Pro
A series of Dual DC Sockets from RS Pro, Each power connector is PCB mounted and right angled for easy convenience. Typical applications for these sockets include signal processors and power supplies. All models are highly reliable and excellent quality.
Features & Benefits
Accepts 2.1 mm/2.5 mm Plugs
PBT Body Material
Solder Termination
