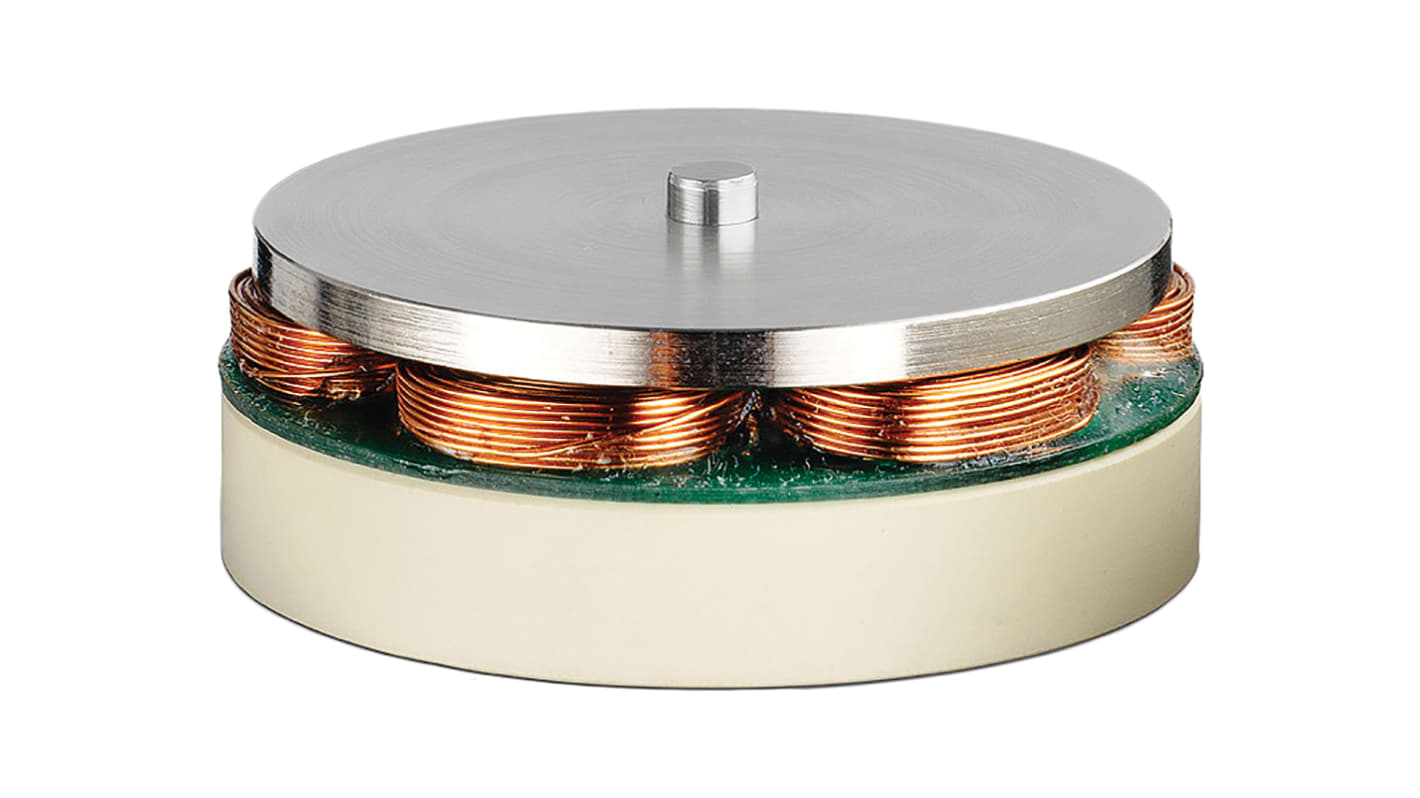

Portescap Brushless DC Motor, 40 W, 12 V dc, 13 mNm, 13600 rpm, 3mm Shaft Diameter

  • RS Stock No. 892-9205
  • Mfr. Part No. 32BF 8B K 10
  • Brand Portescap
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Portescap Series Brushless DC Motors


Brushless DC motors
High ratio Power/Volume
Negligible cogging
Ball bearing
High reliability and maintenance-free
Different types and voltage versions available

DC Brushless Motors

A range of Brushless DC Motors with integrated communication electronics.
Speed control feedback via hall sensors.

Specifications
Attribute Value
Supply Voltage 12 V dc
DC Motor Type Brushless
Power Rating 40 W
Output Speed 13600 rpm
Shaft Diameter 3mm
Maximum Output Torque 13 mNm
Length 21.6mm
Width 30mm
Dimensions 30 (Dia.) x 21.6 mm
Current Rating 1.5 A
Core Construction Ironless
2 In stock for FREE next working day delivery
Price Each
Was £171.74
£ 83.48
(exc. VAT)
£ 100.18
(inc. VAT)
Units
Per unit
1 +
£83.48
