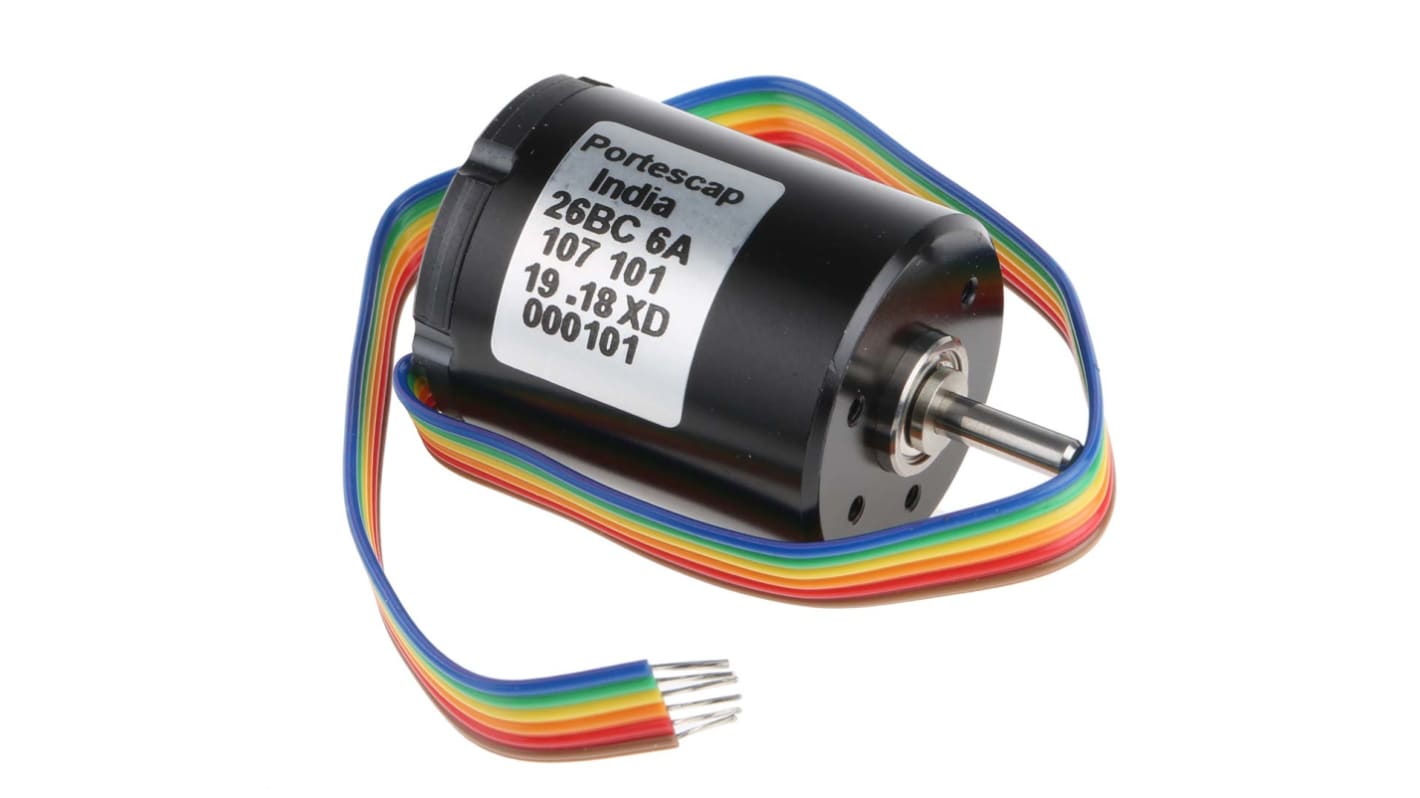

Portescap Brushless DC Motor, 4.2 W, 15 V dc, 4 mNm, 4700 rpm, 3mm Shaft Diameter

  • RS Stock No. 892-9202
  • Mfr. Part No. 26BC-6A-107.101
  • Brand Portescap
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): IN
Product Details

Portescap Series Brushless DC Motors


Brushless DC motors
High ratio Power/Volume
Negligible cogging
Ball bearing
High reliability and maintenance-free
Different types and voltage versions available

DC Brushless Motors

A range of Brushless DC Motors with integrated communication electronics.
Speed control feedback via hall sensors.

Specifications
Attribute Value
Supply Voltage 15 V dc
DC Motor Type Brushless
Power Rating 4.2 W
Output Speed 4700 rpm
Shaft Diameter 3mm
Maximum Output Torque 4 mNm
Length 44.8mm
Width 26mm
Dimensions 26 (Dia.) x 44.8 mm
Current Rating 200 mA
Core Construction Ironless
12 In stock - FREE next working day delivery available
Price Each
£ 163.23
(exc. VAT)
£ 195.88
(inc. VAT)
Units
Per unit
1 +
£163.23
