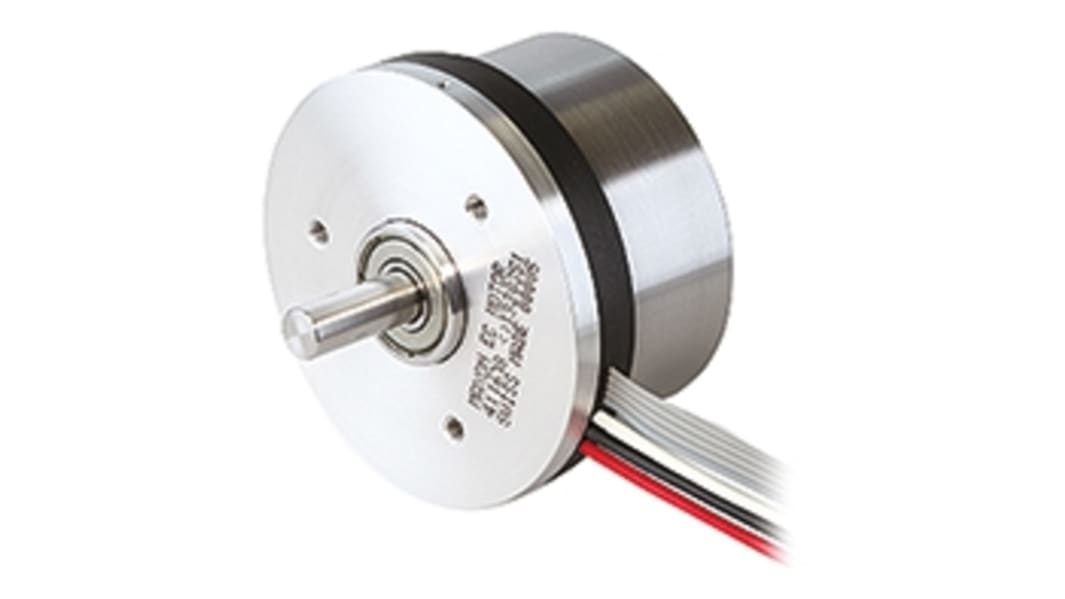

Maxon Brushless DC Motor, 100 W, 24 V, 227 mNm, 4250 rpm, 8mm Shaft Diameter

  • RS Stock No. 833-2825
  • Mfr. Part No. 408057
  • Brand Maxon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

EC 60 Flat Brushless Motor

The brushless EC flat motors with cover are a perfect fit for many applications due to their flat design.The motors well conceived, simple engineering allows mainly automated production.

Brushless DC motors with flat design
Speed constant: 179 rpm/V

DC Drives - Brushless

Specifications
Attribute Value
Supply Voltage 24 V
DC Motor Type Brushless
Power Rating 100 W
Output Speed 4250 rpm
Shaft Diameter 8mm
Maximum Output Torque 227 mNm
Length 43mm
Width 68mm
Dimensions 68 (Dia.) x 43 mm
Current Rating 4.43 A
6 In stock for FREE next working day delivery
Price Each
£ 248.63
(exc. VAT)
£ 298.36
(inc. VAT)
Units
Per unit
1 +
£248.63
