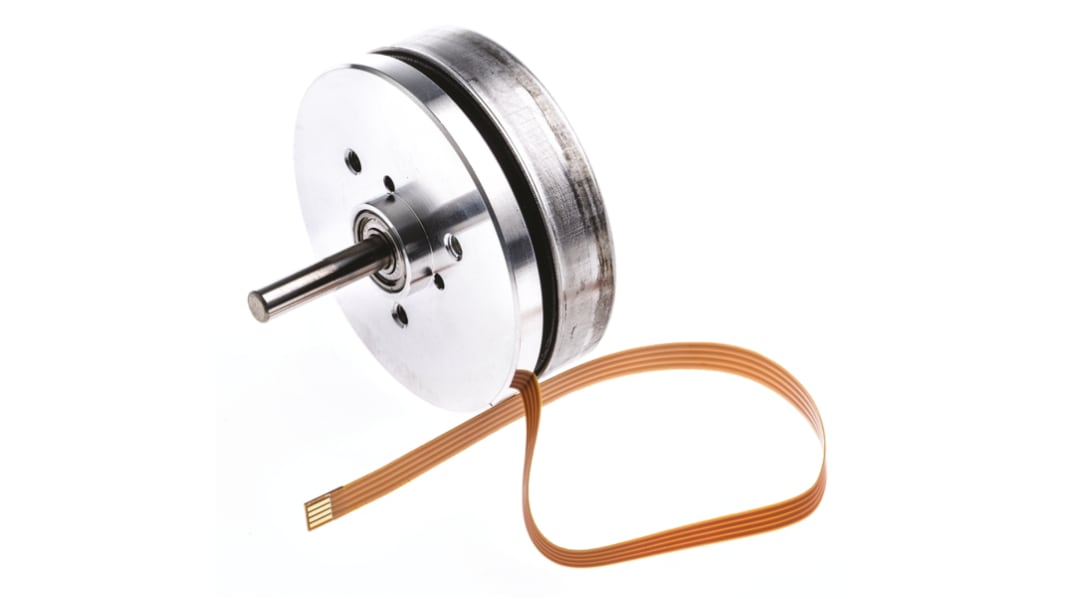

Maxon Brushless DC Motor, 30 W, 12 V dc, 54.3 mNm, 4360 rpm, 4mm Shaft Diameter

  • RS Stock No. 420-4997
  • Mfr. Part No. 200189
  • Brand Maxon
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CH
Product Details

45mm Miniature dc Motor, Model EC45 Flat

Brushless DC motors of flat design with a low profile body
Speed constant: 374rpm/V
Available in 2 versions: Standard, stock no. 420-4997, or with Hall effect sensors, stock nos. 420-5192 and 495-063
Standard version is suitable for conventional voltage dependent applications
Hall effect versions ideal for feedback speed controlled applications
Suitable controller for the standard version Maxon controller AECS35-3 (stock no. 418-4051)
Suitable controller for the Hall effect versions Maxon controller DEC50-5 (stock no. 418-4045)
To facilitate connection of the motor to the controller, the use of a motor connection unit is recommended
Utilise the 4 way unit (stock no. 420-5091) for the standard motor 420-4997 and the 8 way unit (stock no. 420-5108) for motor (stock no. 420-5192)

Specifications
Attribute Value
Supply Voltage 12 V dc
DC Motor Type Brushless
Power Rating 30 W
Output Speed 4360 rpm
Shaft Diameter 4mm
Maximum Output Torque 54.3 mNm
Length 16.4mm
Dimensions 42.9 (Dia.) x 16.4 mm
Current Rating 2 A
4 In stock - FREE next working day delivery available
Price Each
£ 67.46
(exc. VAT)
£ 80.95
(inc. VAT)
Units
Per unit
1 - 2
£67.46
3 - 4
£65.45
5 +
£63.41
