- RS Stock No.:
- 181-7551
- Mfr. Part No.:
- 515458
- Brand:
- Maxon
Available to back order for despatch 02/05/2024
Added
Price Each
£228.61
(exc. VAT)
£274.33
(inc. VAT)
Units | Per unit |
1 + | £228.61 |
- RS Stock No.:
- 181-7551
- Mfr. Part No.:
- 515458
- Brand:
- Maxon
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details

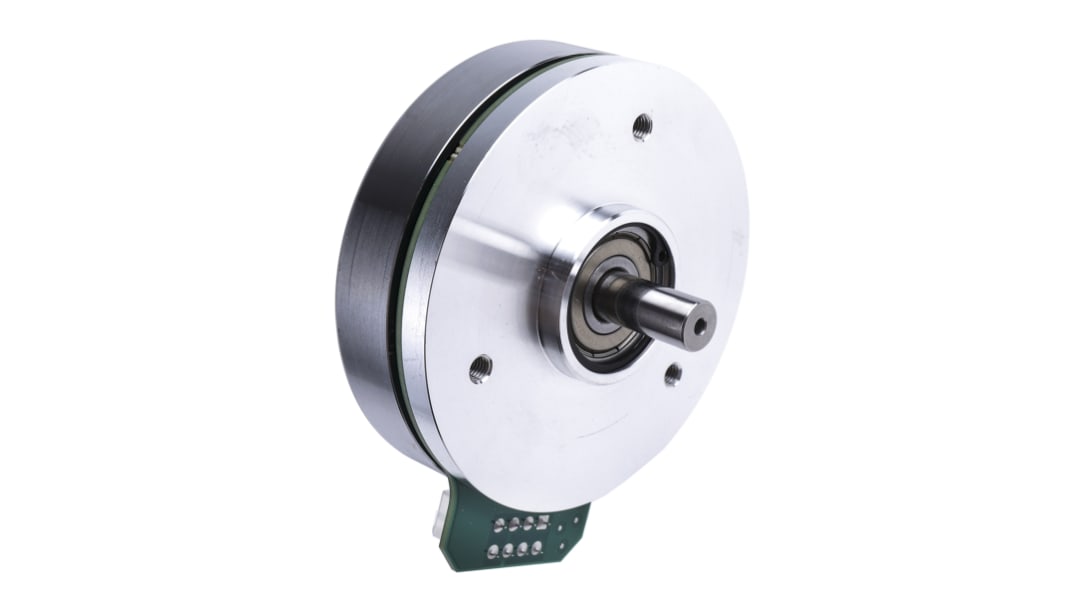

Maxon Brushless DC Motor
The Maxon brushless EC flat DC motor drives the rotary motion of the motor shaft and is controlled by varying the supply voltage. It requires 24V supply voltage with an output current rating of 111A. It has an output speed of 5000rpm. DC motors are widely used where reliability and sharpness are required.
Features and Benefits
High efficiency
High torque
Less maintenance
Longer life
Quick starting, stopping, reversing and acceleration actions
Speed control over a wide range
Speed torque curve is linear
High torque
Less maintenance
Longer life
Quick starting, stopping, reversing and acceleration actions
Speed control over a wide range
Speed torque curve is linear
Applications
Air compressors
Electrical vehicles
Industrial machinery
Electrical vehicles
Industrial machinery
Specifications
Attribute | Value |
---|---|
Supply Voltage | 24 V dc |
DC Motor Type | Brushless |
Power Rating | 160 W |
Output Speed | 5000 rpm |
Shaft Diameter | 10mm |
Maximum Output Torque | 457 mNm, 7910 mNm |
Dimensions | 90 (Dia.) x 27.4 mm |
Current Rating | 111 A |
Length | 27.4mm |
Width | 90mm |
