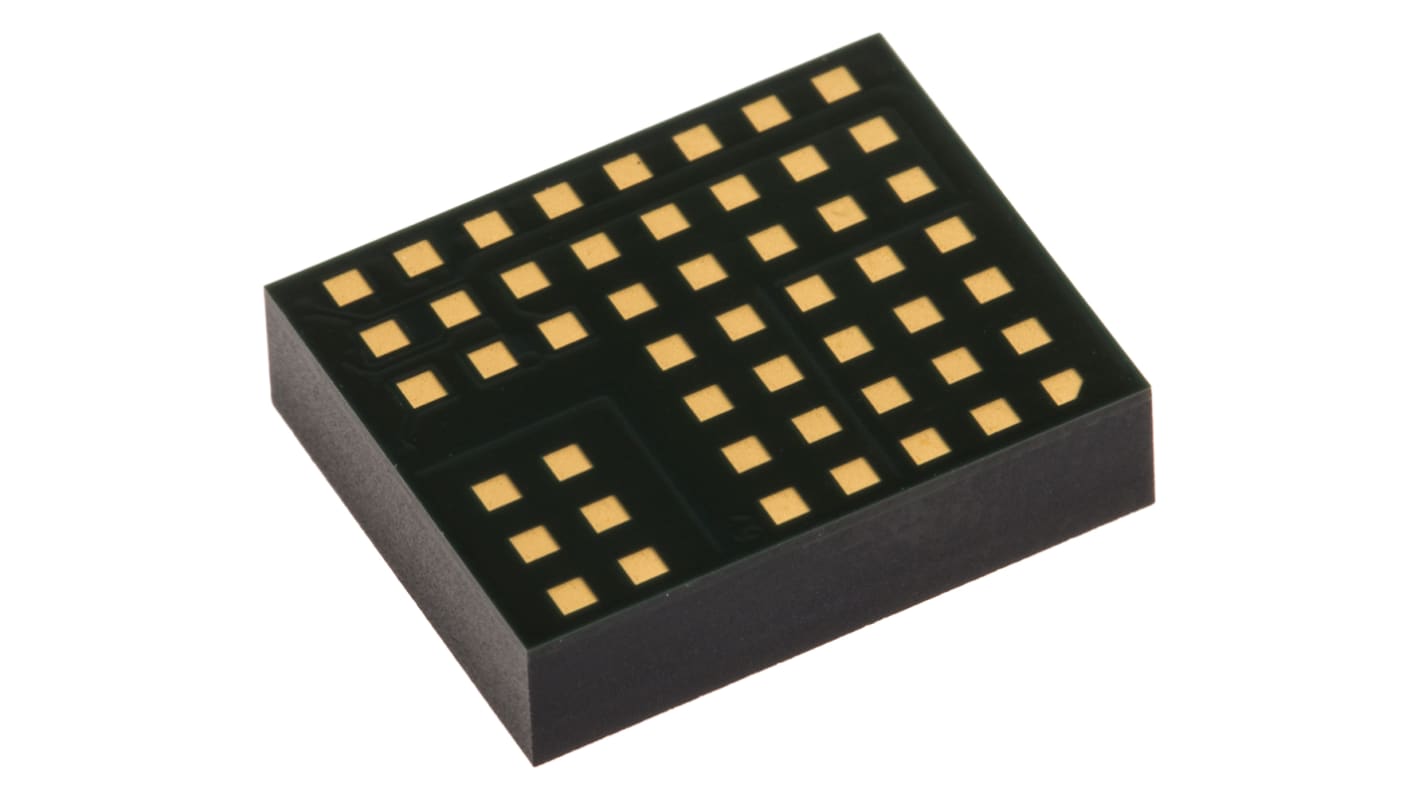

Analog Devices LTM8022EV#PBF, DC-DC Power Supply Module 1A 2.4 Mhz 50-Pin, LGA
- RS Stock No.:
- 471-392
- Mfr. Part No.:
- LTM8022EV#PBF
- Brand:
- Analog Devices
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 471-392
- Mfr. Part No.:
- LTM8022EV#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Analog Devices | |
Maximum Output Current | 1A | |
Number of Outputs | 1 | |
Maximum Switching Frequency | 2.4 Mhz | |
Line Regulation | 0.1 % | |
Load Regulation | 0.4 % | |
Mounting Type | Surface Mount | |
Package Type | LGA | |
Pin Count | 50 | |
Dimensions | 11.25 x 7.62 x 2.92mm | |
Height | 2.92mm | |
Length | 11.25mm | |
Maximum Operating Temperature | +85 °C | |
Width | 7.62mm | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand Analog Devices | ||
Maximum Output Current 1A | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 2.4 Mhz | ||
Line Regulation 0.1 % | ||
Load Regulation 0.4 % | ||
Mounting Type Surface Mount | ||
Package Type LGA | ||
Pin Count 50 | ||
Dimensions 11.25 x 7.62 x 2.92mm | ||
Height 2.92mm | ||
Length 11.25mm | ||
Maximum Operating Temperature +85 °C | ||
Width 7.62mm | ||
Minimum Operating Temperature -40 °C | ||
μModule Regulators, Single Output
Linear Technologys DC/DC μModule (micro-module) regulators offer a complete system-in-package (SiP) power management solution. These step-down (buck) modules incorporate an integrated DC/DC controller, compensation components, power transistors, inductor and input and output capacitors. They offer a low EMI compliant solution with EN55022 class B standards in some products, along with output source and sink current capabilities. The compact design and high efficiency of these μModule regulators make them ideal for use in a multitude of applications such as telecom and networking equipment, Industrial equipment and ATCA cards/servers.
Switching Voltage Regulators, Linear Technology
Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.
