TRACOPOWER TND 5WI DC-DC Converter, 24V dc/ 210mA Output, 9 → 36 V dc Input, 5W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 899-8318
- Mfr. Part No.:
- TDN 5-2415WI
- Brand:
- TRACOPOWER
43 In stock - FREE next working day delivery available
Price Each
£20.37
(exc. VAT)
£24.44
(inc. VAT)
Units | Per unit |
---|---|
1 - 4 | £20.37 |
5 - 9 | £19.76 |
10 - 24 | £19.15 |
25 - 49 | £18.33 |
50 + | £17.52 |
- RS Stock No.:
- 899-8318
- Mfr. Part No.:
- TDN 5-2415WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

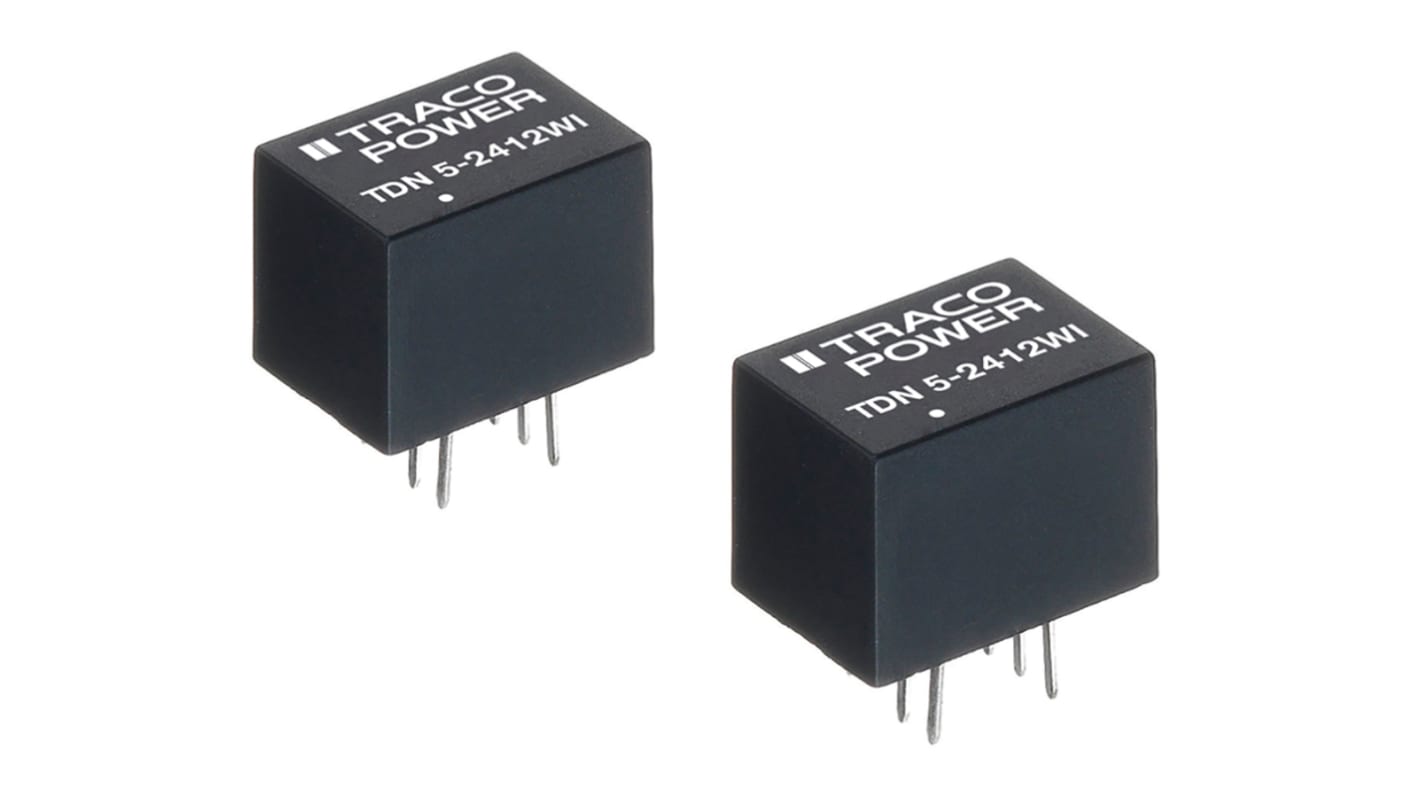

Traco 5W TDN 5WI Series Isolated DC/DC Converters
The TDN 5WI series of isolated DC/DC converters is a range of 5 Watt regulated dc/dc converters. They come in a very small compact DIP package measuring 13.2 x 9 x 10 mm.
Ultra compact DIP package 0.52 x 0.36 x 0.40 inch
I/O-isolation 1'500VDC
Fully regulated outputs
Operating temperature range -40°C to +75°C without derating
Short circuit protection
Remote on/off
I/O-isolation 1'500VDC
Fully regulated outputs
Operating temperature range -40°C to +75°C without derating
Short circuit protection
Remote on/off
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 5W |
Input Voltage Nominal | 24 V dc |
Output Current | 210mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Output Voltage Adjustment Range | ±1% |
Package | DIP |
Isolation Voltage | 1.5kV dc |
Depth | 10.2mm |
Width | 9.1mm |
Length | 13.2mm |
Series | TND 5WI |
Load Regulation | 0.01 |
Minimum Temperature | -40°C |
Standards Met | EN 55022, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, REACH, RoHS Compliant, UL 60950-1 |
Maximum Temperature | +75°C |
Efficiency | 83% |
