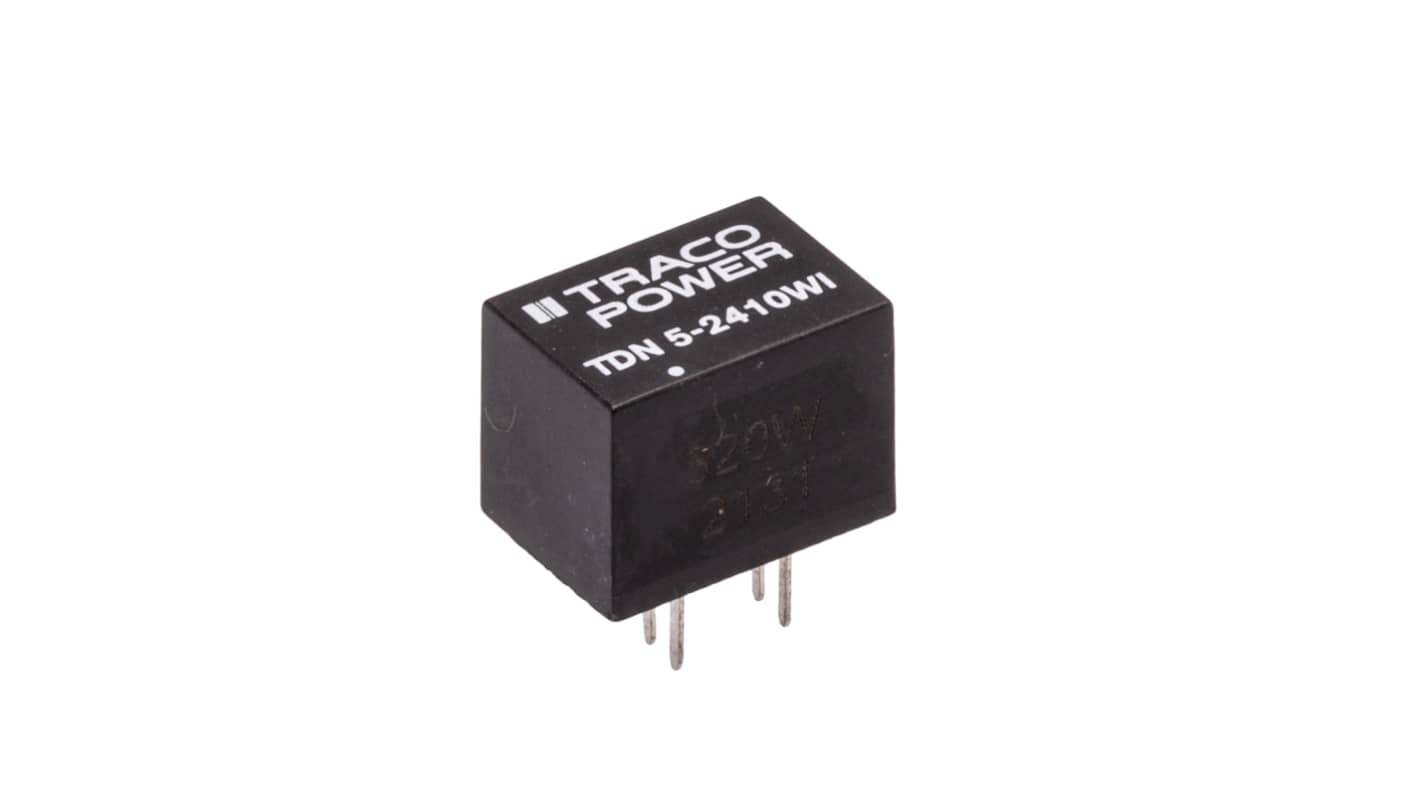

TRACOPOWER TDN 5WI DC/DC Converter, 3.3V dc/ 1 A, 36V dc Input, 9V Input 5 W, Through Hole, 75 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£22.61

(exc. VAT)

£27.13

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£22.61
5 - 9£21.93
10 - 24£21.26
25 - 49£20.35
50 +£19.45

*price indicative

Packaging Options:
RS Stock No.:
899-8309
Mfr. Part No.:
TDN 5-2410WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Product Type

DC/DC Converter

Output Voltage 1

3.3V dc

Maximum Input Voltage

36V dc

Minimum Input Voltage

9V

Output Current 1

1A

Mount Type

Through Hole

Input Ratio

4:1

MTBF

2960000h

Number of Outputs

1

Output Voltage Adjustment Range

±1 %

Isolation Voltage

1.6kV dc

Number of Pins

6

Package Type

DIP

Maximum Output Power

5W

Length

13.2mm

Depth

10.2mm

Width

9.1mm

Standards/Approvals

No

Series

TDN 5WI

Maximum Operating Temperature

75°C

Minimum Operating Temperature

-40°C

Efficiency

76%

TRACOPOWER TDN 5WI Series DC-DC Converter, 3.3V DC Output Voltage, 3.3W Power Rating - TDN 5-2410WI


This Compact DC-DC converter is designed for high-performance applications where space is limited. The isolated design provides a 3.3V output power with efficient performance, making it suitable for a variety of electronic projects, automation systems, and industrial controls. Its features ensure consistent operation over a wide temperature range, complying with industry standards for safety and performance.

Features & Benefits


• Ultra-compact DIP package minimises PCB footprint

• Fully regulated outputs allow stable voltage delivery

• Short circuit protection automatically safeguards the device

• Remote On/Off function for flexible control

• Typical efficiency of 76% enhances power operation

Applications


• Suitable for automation and control systems

• Ideal for electrical and mechanical control

• Powers sensors and telemetry devices

• Utilised in test and measurement equipment

• Applicable in embedded systems requiring Compact power solutions

How does the safety isolation rating impact the installation?


The 1600V DC isolation allows for safe deployment in sensitive environments or when interfacing with higher voltage systems.

What is the maximum permissible ambient temperature during operation?


It effectively operates within a temperature range from -40 to +75°C, with specific derating above 50°C.

What happens in the event of a short circuit?


The device features continuous short circuit protection, ensuring automatic recovery once the fault is resolved.
