TRACOPOWER TMV 2HI DC-DC Converter, 3.3V dc/ 500mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +80°C Max

RS Stock No.:: 898-7113
Mfr. Part No.:: TMV 2-2403SHI
Brand:: TRACOPOWER

TRACOPOWER TMV 2HI DC-DC Converter, 3.3V dc/ 500mA Output, 21.6 → 26.4 V dc Input, 2W, Through Hole, +80°C Max

Available to back order for despatch 05/09/2024

Price Each

£9.47

(exc. VAT)

£11.36

(inc. VAT)

Units	Per unit
1 - 4	£9.47
5 - 9	£9.19
10 - 24	£8.90
25 - 49	£8.52
50 +	£8.14

RS Stock No.:: 898-7113
Mfr. Part No.:: TMV 2-2403SHI
Brand:: TRACOPOWER

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

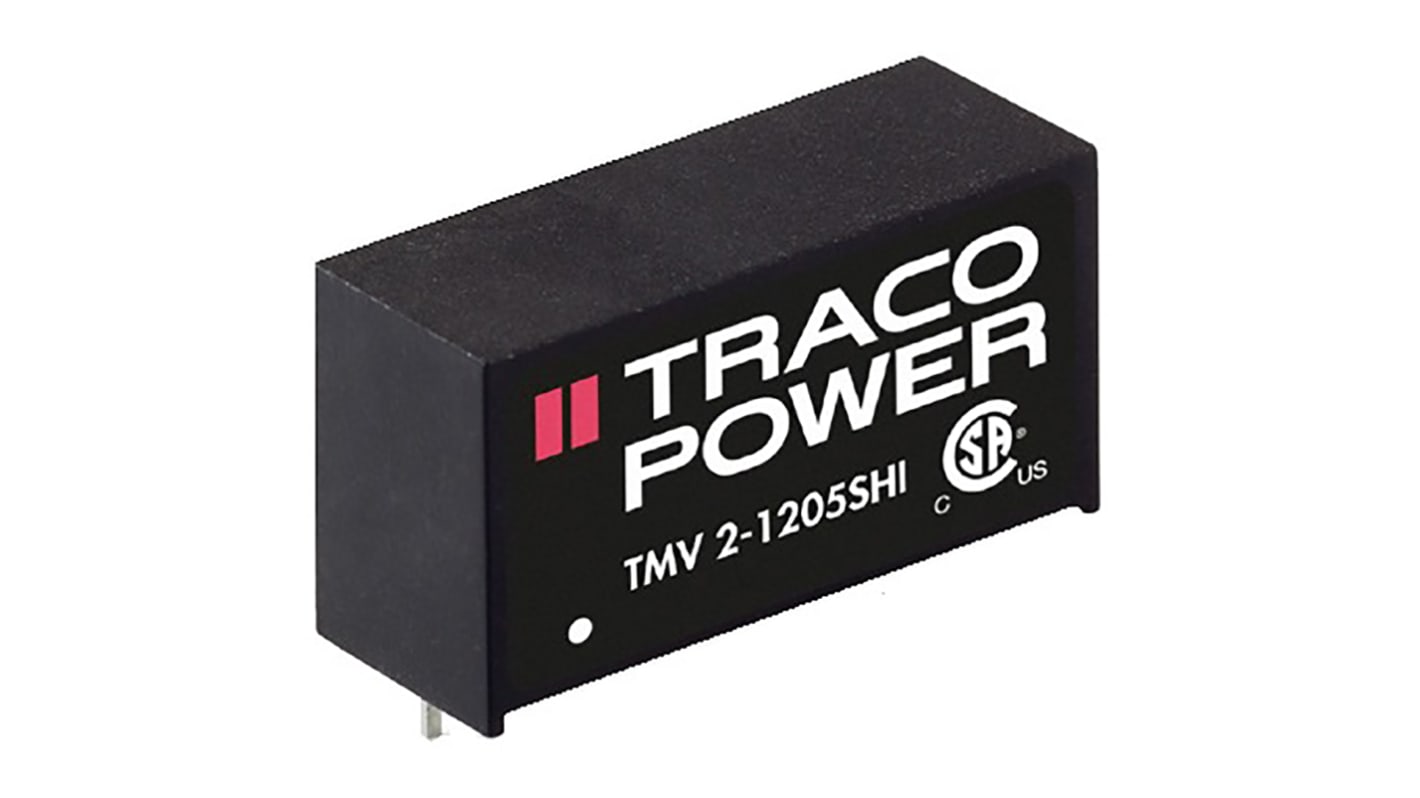

Traco 2W SIP Unregulated Isolated DC-DC Converter - TMV 2HI Series

The Traco Power TMV 2HI series is a range of miniature isolated, 2 Watt, DC/DC converters in a SIP-7 package. The TMV 2HI DC-DC converters feature an operating temperature of -40°C to +80°C, without derating and continuous short-circuit protection. The small size and high isolation to 5700Vdc of the TMV 2HI Series make them an ideal solution for many space critical IGBT applications that are used in today’s modern appliances and transportation.

Ultra compact SIP-7 package
Very high I/O-isolation 5’700 VDC
Dedicated for IGBT applications
Operating temperature range -40°C to +80°C
Industry standard pinout

Standards

CAN/CSA-C22.2 No 60950-1-07, 2nd ed; A1:2011
ANSI/UL No. 60950-1, 2nd ed.; A1:2011
IEC 60950-1:2005 (2nd edition); Am 1:2009
EN 60950-1:2006/A11:2009/A1:2010/A12:2011

Approvals

CAN/CSA, ANSI/UL, cULus, IEC, EN

Specifications

Attribute	Value
Output Voltage	3.3V dc
Input Voltage Range	21.6 → 26.4 V dc
Power Rating	2W
Input Voltage Nominal	24 V dc
Output Current	500mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±5%
Package	SIP 7
Isolation Voltage	5.2kV dc
Depth	10.2mm
Length	19.5mm
Width	7.1mm
Series	TMV 2HI
Load Regulation	<20%
Maximum Temperature	+80°C
Minimum Temperature	-40°C
Efficiency	70%
Standards Met	A1:2010, A1:2011, A11:2009, A12:2011, Am 1:2009, ANSI/UL No. 60950-1 2nd ed., CAN/CSA-C22.2 No 60950-1-07 2nd ed, CB, cSAus, EN 60950-1:2006, IEC 60950-1:2005 (2nd edition), REACH, ROHS
