Murata Power Solutions NCS3 DC-DC Converter, 3.3V dc/ 700mA Output, 18 → 75 V dc Input, 2.31W, Through Hole,

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
Packaging Options:
RS Stock No.:
876-2469
Mfr. Part No.:
NCS3S4803SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

3.3V dc

Input Voltage Range

18 → 75 V dc

Power Rating

2.31W

Input Voltage Nominal

48 V dc

Output Current

700mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Output Voltage Adjustment Range

±2%

Isolation Voltage

1.5kV dc

Depth

11.25mm

Width

9.45mm

Length

21.95mm

Series

NCS3

Load Regulation

±1%

Maximum Temperature

+85°C

Minimum Temperature

-40°C

Standards Met

cULus Certified, RoHS Compliant

Efficiency

74%

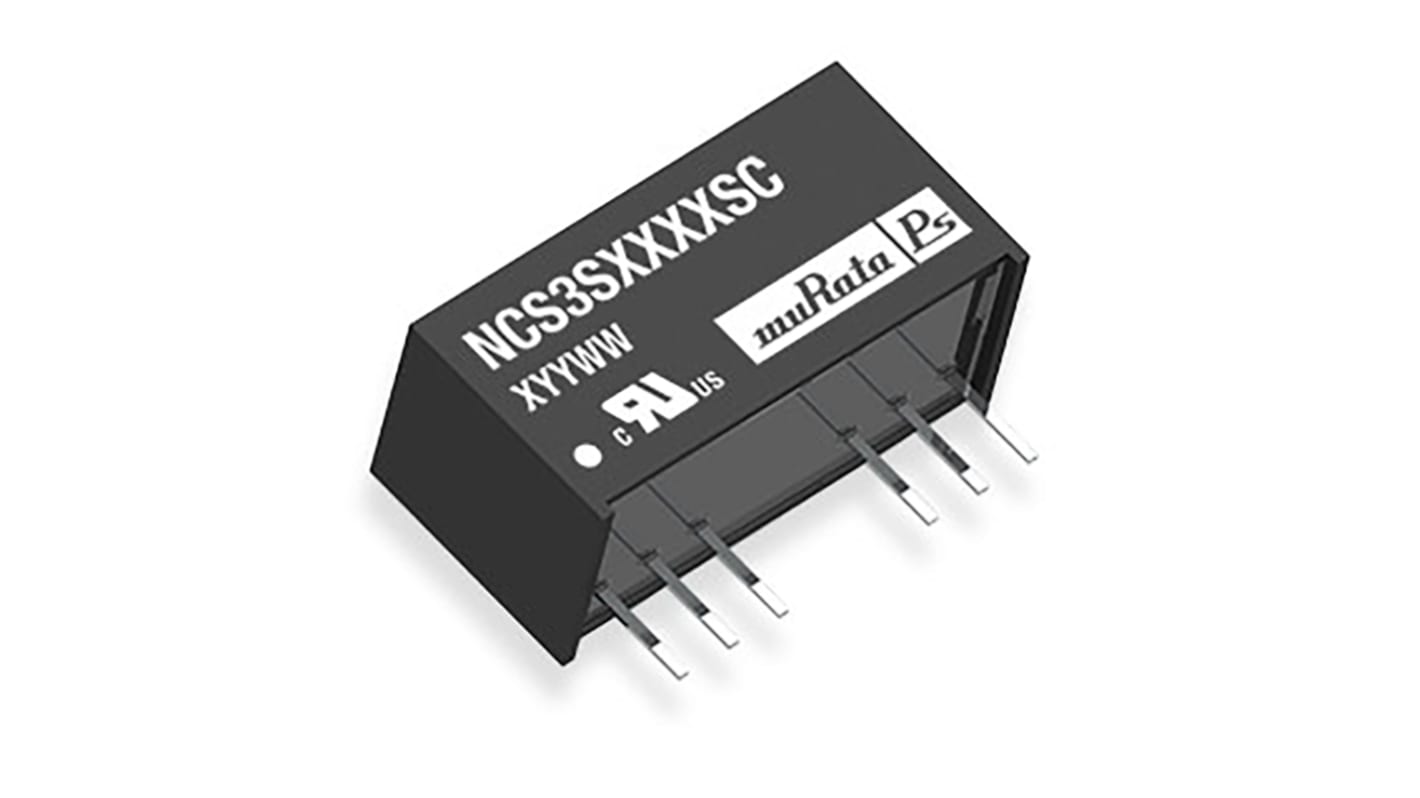

Murata 3W SIP Single Output Regulated Isolated DC-DC Converter - NCS3 Series


The Murata PS NCS3 series of DC/DC converters offers single output voltage from input voltage ranges of 9-36V and 18-75V. This power converter is housed in an industry standard package with a standard pinout. The DC/DC converter is encapsulated for superior thermal performance. Applications of the NCS3 isolated DC-DC power supplies include telecommunications, battery powered systems, process control and distributed power systems.

4:1 Wide range voltage input

Operating temperature range -40°C to 85°C with derating

1.5 k Vdc Isolation

3.3V, 5V, 12 and 15V outputs

No electrolytic capacitors

Continuous short circuit protection

Murata Power Solutions - SIP


Approvals

UL60950
