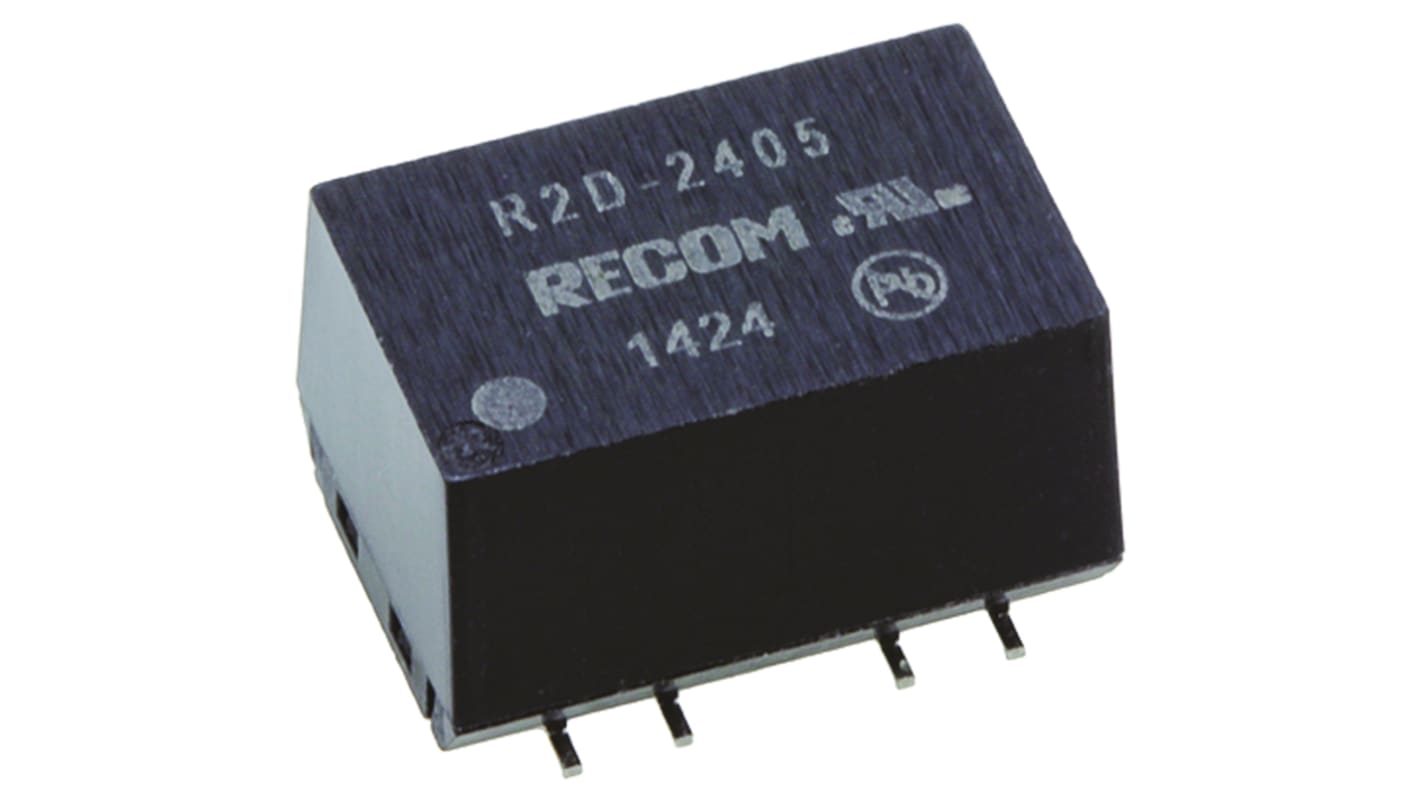

Recom R2D DC-DC Converter, ±5V dc/ ±200mA Output, 21.6 → 26.4 V dc Input, 2W, Surface Mount, +100°C Max Temp
- RS Stock No.:
- 843-9437
- Mfr. Part No.:
- R2D-2405
- Brand:
- Recom
Available to back order for despatch 10/09/2024
Added
Price Each (In a Pack of 33)
£11.799
(exc. VAT)
£14.159
(inc. VAT)
| Units | Per unit | Per Pack* |
| 33 - 132 | £11.799 | £389.367 |
| 165 - 297 | £11.445 | £377.685 |
| 330 - 792 | £11.091 | £366.003 |
| 825 - 1617 | £10.737 | £354.321 |
| 1650 + | £10.383 | £342.639 |
| *price indicative | ||
- RS Stock No.:
- 843-9437
- Mfr. Part No.:
- R2D-2405
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 2W SMD Single/Dual Output Unregulated Isolated DC-DC Converter - R2S & R2D Series
Enclosed un-potted open frame type converters
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Full power at 100°C ambient temperature
1kVdc isolation voltage
Short circuit protection
High efficiency up to 85%
Note
Operating temperature is without derating.
MTBF to MIL-HDBK 217F (+25°C).
MTBF to MIL-HDBK 217F (+25°C).
Standards
UL60950-1, EN-60950-1
Approvals
CB, CSA, UL recognised component
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 2W |
| Input Voltage Nominal | 24 V dc |
| Output Current | ±200mA |
| Mounting Type | Surface Mount |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SMD |
| Isolation Voltage | 3kV dc |
| Depth | 8.7mm |
| Length | 15.24mm |
| Width | 10.7mm |
| Series | R2D |
| Load Regulation | 0.15 |
| Minimum Temperature | -40°C |
| Efficiency | 75 → 80% |
| Maximum Temperature | +100°C |
