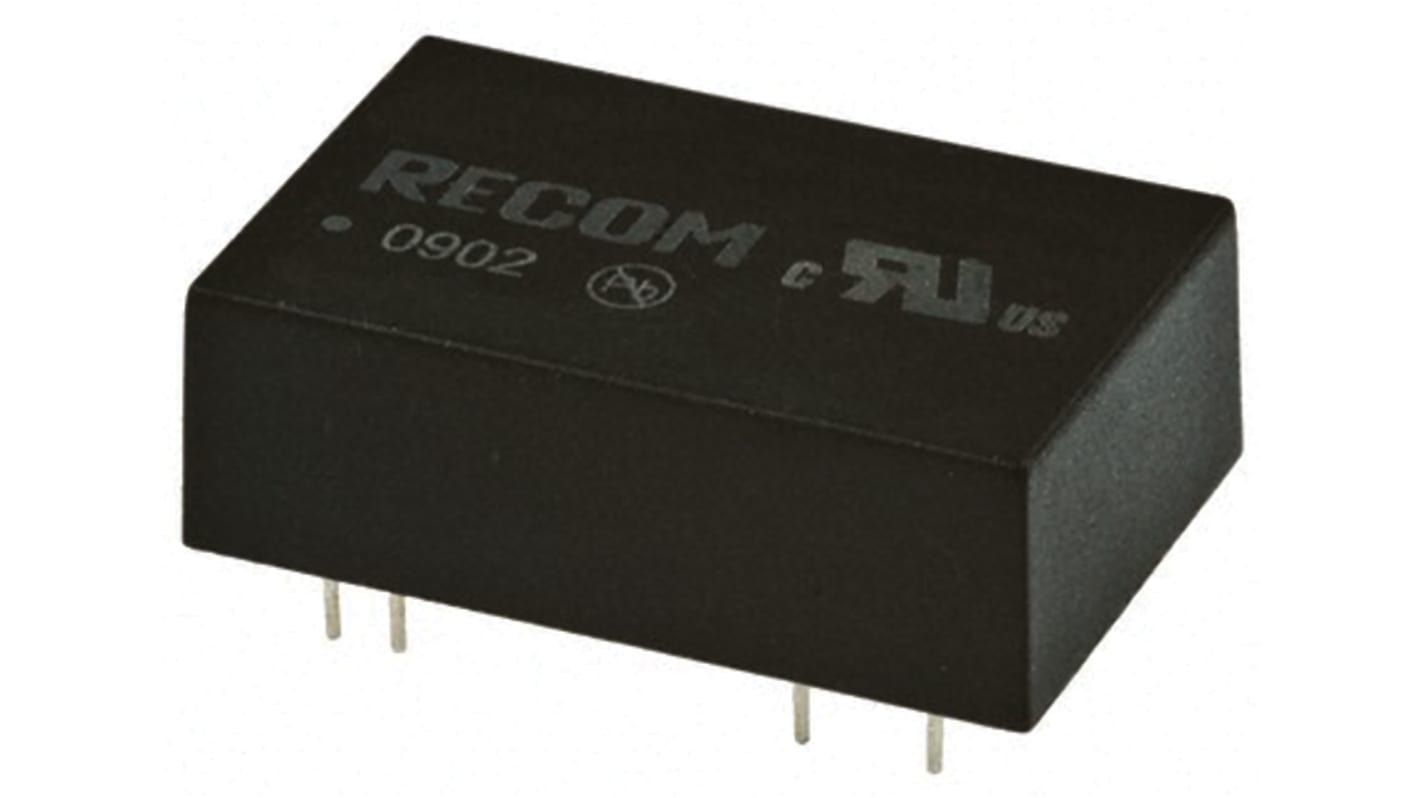

Recom DC/DC Converter, 15V/ 340 mA, 36V Input, 9V Input 5 W, Through Hole, 75 °C Max Temp -40 °C Min Temp, 24-Pin Tube

RS Stock No.:: 843-9333
Mfr. Part No.:: REC5-2415SRWZ/H2/A
Brand:: Recom

Recom DC/DC Converter, 15V/ 340 mA, 36V Input, 9V Input 5 W, Through Hole, 75 °C Max Temp -40 °C Min Temp, 24-Pin Tube

Bulk discount available

View bulk pricing options

Subtotal (1 pack of 15 units)*

£346.56

(exc. VAT)

£415.875

(inc. VAT)

FREE delivery for orders over £60.00

Stocked by manufacturer

Ready to ship from 19 January 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Pack*
15 - 60	£23.104	£346.56
75 - 135	£22.411	£336.17
150 - 360	£21.718	£325.77
375 - 735	£21.025	£315.38
750 +	£20.331	£304.97

*price indicative

RS Stock No.:: 843-9333
Mfr. Part No.:: REC5-2415SRWZ/H2/A
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage 1	15V
	Product Type	DC/DC Converter
	Minimum Input Voltage	9V
	Maximum Input Voltage	36V
	Output Current 1	340mA
	Mount Type	Through Hole
	Number of Outputs	5
	MTBF	206000h
	Output Voltage Adjustment Range	9/36 V
	Number of Pins	24
	Isolation Voltage	2kV
	Maximum Output Power	5W
	Package Type	Tube
	Standards/Approvals	No
	Length	32mm
	Depth	10.2mm
	Width	20.3mm
	Maximum Operating Temperature	75°C
	Minimum Operating Temperature	-40°C
	Efficiency	86%

	Select all
	Brand Recom
	Output Voltage 1 15V
	Product Type DC/DC Converter
	Minimum Input Voltage 9V
	Maximum Input Voltage 36V
	Output Current 1 340mA
	Mount Type Through Hole
	Number of Outputs 5
	MTBF 206000h
	Output Voltage Adjustment Range 9/36 V
	Number of Pins 24
	Isolation Voltage 2kV
	Maximum Output Power 5W
	Package Type Tube
	Standards/Approvals No
	Length 32mm
	Depth 10.2mm
	Width 20.3mm
	Maximum Operating Temperature 75°C
	Minimum Operating Temperature -40°C
	Efficiency 86%

REC5-SRW_DRW_Z_Hx Data Sheet

COO (Country of Origin):: TW

Recom 5W DIP Single Output Medical Approved Regulated Isolated DC-DC Converter - REC5-H2/A Series

Feedback regulated output

Medical safety approval EN-60601-1

2kVdc isolation

Continuous short circuit protection

Wide inputs 2:1 and 4:1

Efficiency up to 86%

DIP24 package

Note

MTBF is to MIL-HDBK 217F.
Derate output when operating temperature above 75°C.

Approvals

UL recognised

Standards

EN-60950-1, UL-60950-1, EN60601-01
