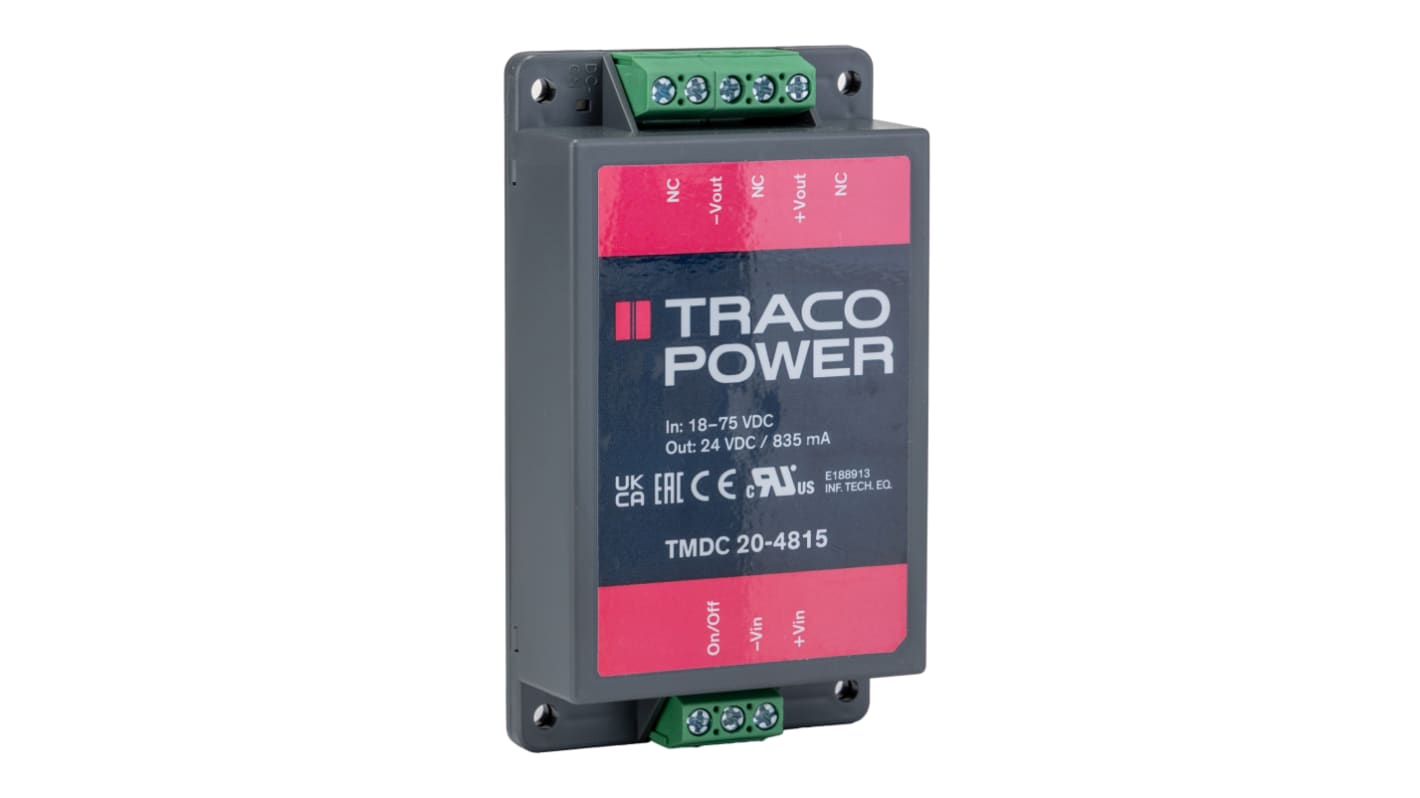

TRACOPOWER TMDC 20 DC-DC Converter, 24V dc/ 835mA Output, 18 → 75 V dc Input, 20W, Chassis Mount, +90°C Max Temp
- RS Stock No.:
- 843-1698
- Mfr. Part No.:
- TMDC 20-4815
- Brand:
- TRACOPOWER
Available to back order for despatch 13/06/2024
Added
Price Each
£54.63
(exc. VAT)
£65.56
(inc. VAT)
Units | Per unit |
1 - 4 | £54.63 |
5 - 9 | £52.99 |
10 - 24 | £51.35 |
25 - 49 | £49.17 |
50 + | £46.98 |
- RS Stock No.:
- 843-1698
- Mfr. Part No.:
- TMDC 20-4815
- Brand:
- TRACOPOWER
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, LED Indicator, Plastic Case - TMDC 20 Series - TMDC 20-4815
Even out the power supply to your electronic appliances with this DC-DC converter from Traco Power. Its 4:1 input voltage range shows that it's a versatile control solution that operates over a wide supply threshold. This piece of kit regulates DC voltages from the energy source ranging between 18 and 75V to deliver a balanced 24V DC output for components like battery chargers. Its Pi-type filter reliably rids the signal of interference, giving you noiseless transmission. For enhanced safety, this converter puts a 2500V isolation barrier between the input and output, preventing damage caused by surges.
Features & Benefits
• Durable plastic case withstands wear and impact to offer long-lasting service
• Chassis mounting method for efficient heat dissipation during operation
• Power rating of 20W makes it suitable for medium-duty applications
• Integrated power good LED indicator for easy monitoring and troubleshooting
• Screw termination doesn't need complex tools, saving time and hassle
• Chassis mounting method for efficient heat dissipation during operation
• Power rating of 20W makes it suitable for medium-duty applications
• Integrated power good LED indicator for easy monitoring and troubleshooting
• Screw termination doesn't need complex tools, saving time and hassle
Applications
• Medical equipment
• Process and packaging industry
• Electrical workshops
• Process and packaging industry
• Electrical workshops
What size is this DC-DC converter?
This unit has a low-profile design with compact dimensions of 54 (L) x 96 (W) x 23.3mm (H). This makes it a space-efficient choice for busy panel setups.
Traco - 20W to 60W - TMDC Series
Specifications
Attribute | Value |
---|---|
Output Voltage | 24V dc |
Input Voltage Range | 18 → 75 V dc |
Power Rating | 20W |
Input Voltage Nominal | 48 V dc |
Output Current | 835mA |
Mounting Type | Chassis Mount |
Isolated | Yes |
Number of Outputs | 1 |
Isolation Voltage | 2.5kV dc |
Width | 96mm |
Depth | 23.3mm |
Length | 54mm |
Series | TMDC 20 |
Load Regulation | 0.5% |
Maximum Temperature | +90°C |
Standards Met | CE, EN 60950-1, UL/CSA 60950-1 |
Efficiency | 91% |
Minimum Temperature | -40°C |
Medical Approved | No |
