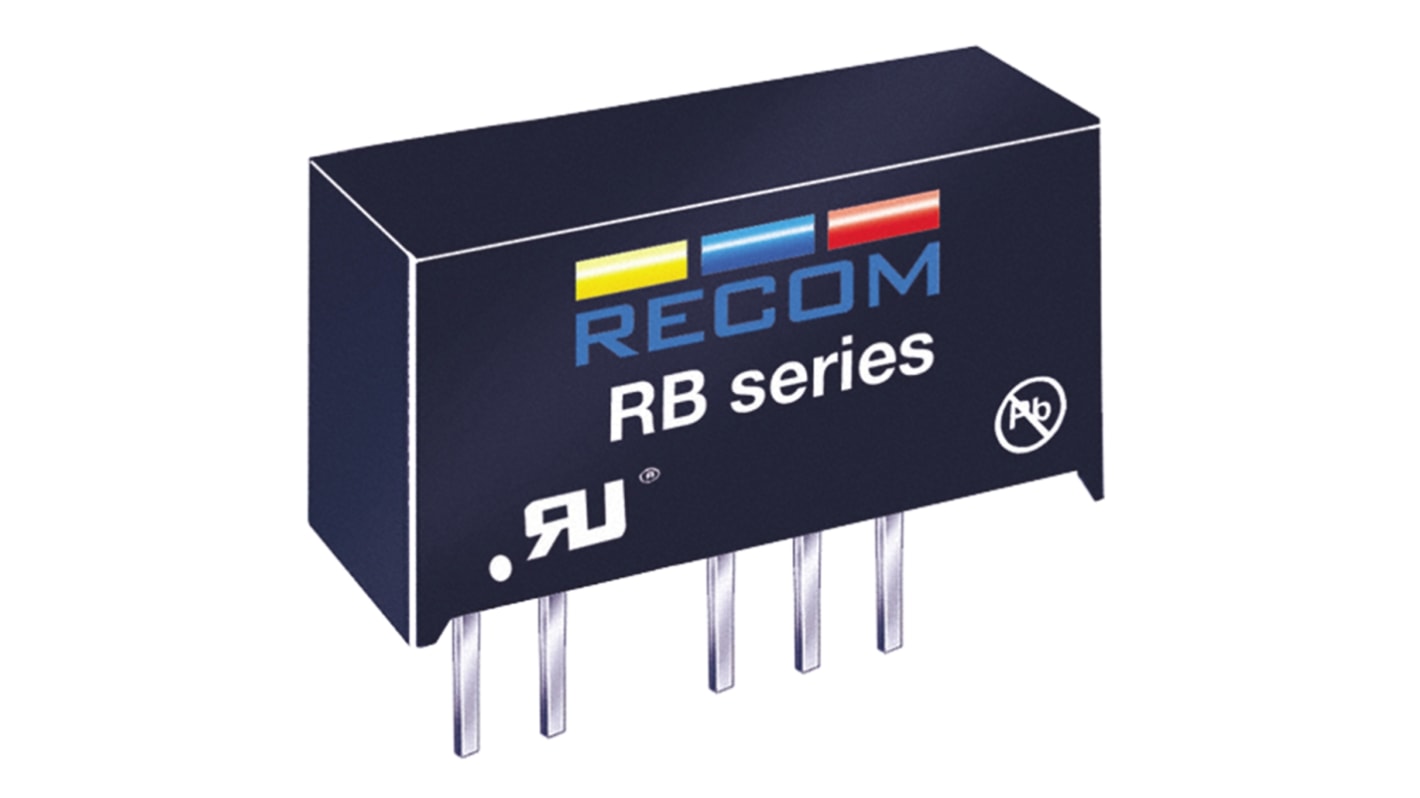

Recom RB DC-DC Converter, ±12V dc/ ±42mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 830-3745
- Mfr. Part No.:
- RB-2412D/P
- Brand:
- Recom
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 830-3745
- Mfr. Part No.:
- RB-2412D/P
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | ±42mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Length | 19.6mm | |
| Series | RB | |
| Load Regulation | 0.1 | |
| Minimum Temperature | -40°C | |
| Efficiency | 78 → 82% | |
| Maximum Temperature | +85°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage ±12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±42mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Length 19.6mm | ||
Series RB | ||
Load Regulation 0.1 | ||
Minimum Temperature -40°C | ||
Efficiency 78 → 82% | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
