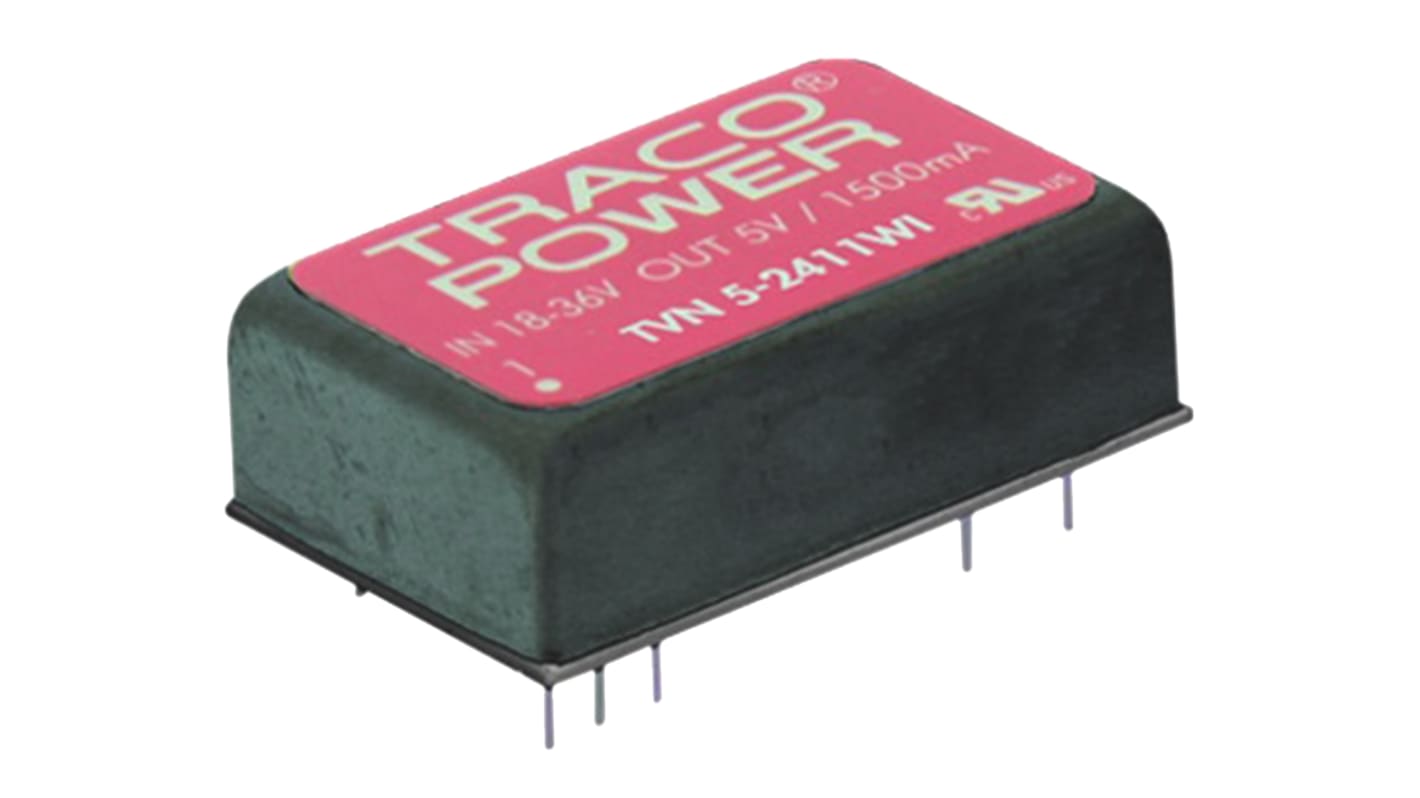

TRACOPOWER TVN 5WI DC/DC Converter, 5V dc/ 500 mA, 36V dc Input, 9V Input 5 W, Through Hole, 90 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£51.08

(exc. VAT)

£61.30

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 1 unit(s) shipping from 27 April 2026
  • Plus 5 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£51.08
5 - 9£49.55
10 - 24£48.02
25 - 49£45.97
50 +£43.92

*price indicative

Packaging Options:
RS Stock No.:
828-9059
Distrelec Article No.:
300-08-663
Mfr. Part No.:
TVN 5-2421WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

36V dc

Output Current 1

500mA

Output Current 2

500mA

Output Voltage 2

-5V dc

Mount Type

Through Hole

MTBF

4400000h

Number of Outputs

2

Output Voltage Adjustment Range

4.5/5.5 V dc

Number of Pins

24

Isolation Voltage

1.5kV dc

Maximum Output Power

5W

Package Type

DIP-24

Width

20.3mm

Standards/Approvals

No

Depth

10.2mm

Series

TVN 5WI

Length

31.8mm

Maximum Operating Temperature

90°C

Efficiency

78%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
TW

Traco Power DC-DC Converter, 9 to 36V DC Input Voltage, +5V DC Output Voltage - TVN 5WI Series -TVN 5-2421WI


Keen to supply a steady output voltage to your devices? This Traco Power DC-DC converter puts the power in your hands. It takes an input voltage between 9 and 36V DC and converts it to an output of ±5V DC, so it's a safe bet for use with low-power equipment. As the converter is encapsulated inside a shielded metal package, there's minimal electrical noise to ensure crisp, clear signals. A remote on/off feature means you have total control at your fingertips.

Features & Benefits


• Isolation voltage of 1.6kV DC for protection against electrical hazards

• Measuring just 32 (L) x 20 (W) x 10.2mm (D) means it slots into your setup easily

• Broad operating temperature range between -40°C and +90°C for use in demanding environments

• Efficiency of 84%, so it wastes little energy in the form of heat

• Light weight of 15.3g, so your equipment will hardly notice it

Applications


• Measurement devices

• Audio recording

• Robotics systems

How do I mount this DC-DC converter?


This device uses through-hole mounting for secure installation directly onto your PCB.
