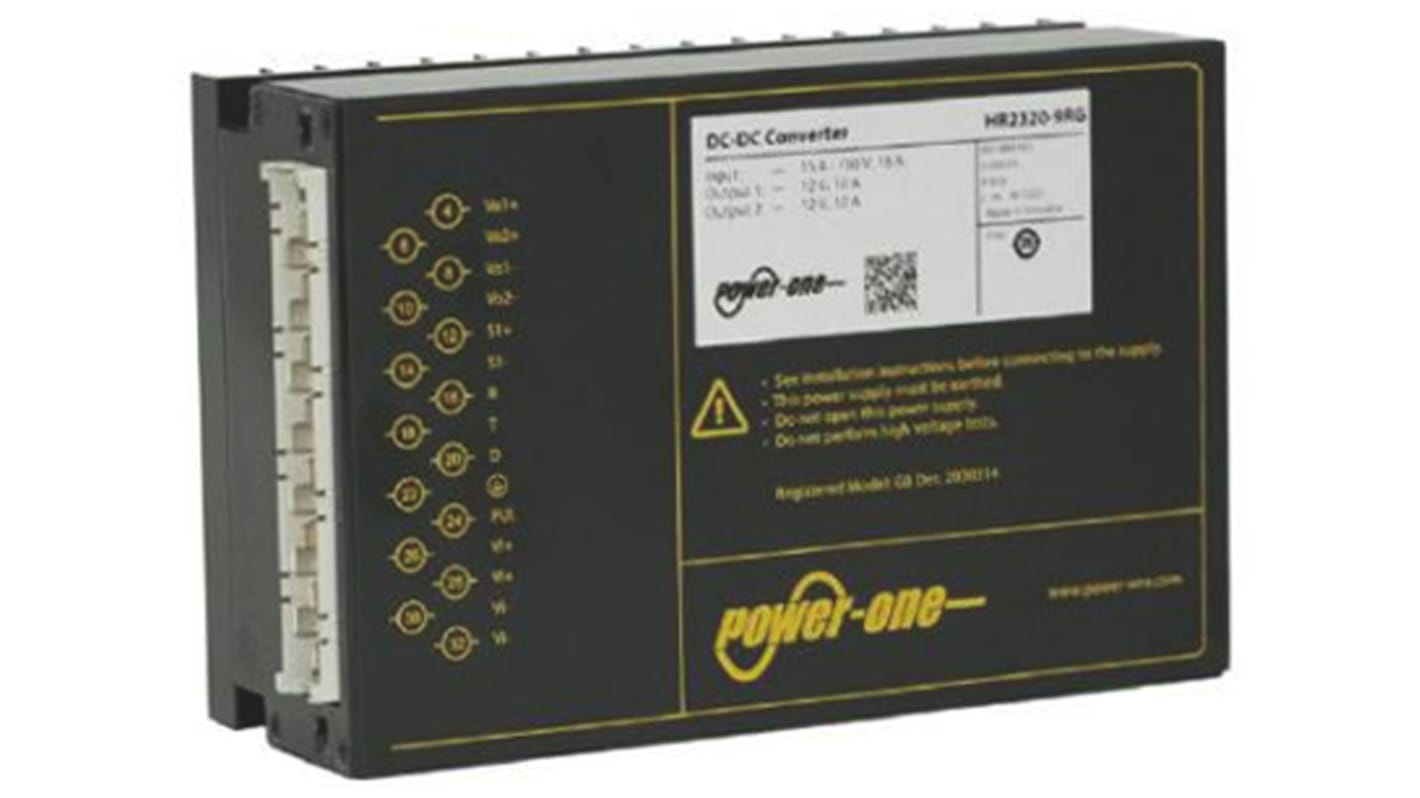

BEL POWER SOLUTIONS INC HR Isolated DC-DC Converter, 12V dc/ 12A Output, 16.8 → 150 V dc Input, 288W, Rack
- RS Stock No.:
- 819-3995
- Mfr. Part No.:
- HRP2320-9RG
- Brand:
- BEL POWER SOLUTIONS INC
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 819-3995
- Mfr. Part No.:
- HRP2320-9RG
- Brand:
- BEL POWER SOLUTIONS INC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BEL POWER SOLUTIONS INC | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 16.8 → 150 V dc | |
| Power Rating | 288W | |
| Input Voltage Nominal | 110 V dc | |
| Output Current | 12A | |
| Mounting Type | Rack Mount | |
| Number of Outputs | 1 | |
| Isolation Voltage | 2 kV ac, 2.8 kV dc | |
| Length | 80mm | |
| Depth | 171.9mm | |
| Railway Approved | Yes | |
| Series | HR | |
| Load Regulation | ±120mV | |
| Medical Approved | No | |
| Maximum Temperature | +71°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand BEL POWER SOLUTIONS INC | ||
Output Voltage 12V dc | ||
Input Voltage Range 16.8 → 150 V dc | ||
Power Rating 288W | ||
Input Voltage Nominal 110 V dc | ||
Output Current 12A | ||
Mounting Type Rack Mount | ||
Number of Outputs 1 | ||
Isolation Voltage 2 kV ac, 2.8 kV dc | ||
Length 80mm | ||
Depth 171.9mm | ||
Railway Approved Yes | ||
Series HR | ||
Load Regulation ±120mV | ||
Medical Approved No | ||
Maximum Temperature +71°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- SK
144W to 288W Railway Standard Isolated DC-DC Converter HR Series
The Power-One HR Series of DC-DC converters offers a range of railway power supplies for use in transportation and other advanced electronic systems. These DC-DC converters feature a wide input voltage, very high efficiency, high reliability, low output voltage noise and excellent dynamic response to load/line changes. The HR series of DC-DC power supplies can be connected to all conventional railway batteries. LED indicators display the status of the DC-DC converter and allow for visual monitoring of the system at any time. The Power supply can be plugged into a 19 inch rack system or be chassis mounted. The DC-DC converters are particularly suitable for railway applications and can be supplied by all common railway batteries.
Extremely wide input voltage range from 12 to 168 VDC in the same model
RoHS compliant
Class I equipment
Compliant with EN 50155 and EN 50121-3-2
Input over- and programmable under-voltage lockout
Shutdown function
Inrush current limitation
10 ms hold-up time
Adjustable output voltages
2 independent, isolated outputs: no load, overload, and short-circuit proof
Rectangular current limiting characteristic
Parallel operation with active current sharing
Very high efficiency up to 94%
Immunity according to IEC 61000-4-2, -3, -4, -5, -6
ALL PCB boards protected by lacquer
Very high reliability
RoHS compliant
Class I equipment
Compliant with EN 50155 and EN 50121-3-2
Input over- and programmable under-voltage lockout
Shutdown function
Inrush current limitation
10 ms hold-up time
Adjustable output voltages
2 independent, isolated outputs: no load, overload, and short-circuit proof
Rectangular current limiting characteristic
Parallel operation with active current sharing
Very high efficiency up to 94%
Immunity according to IEC 61000-4-2, -3, -4, -5, -6
ALL PCB boards protected by lacquer
Very high reliability
Approvals
IEC/EN 60950-1, UL/CSA 60950-1 2nd Ed.
Power-One - Euro Cassette, Isolated DC/DC Converters
