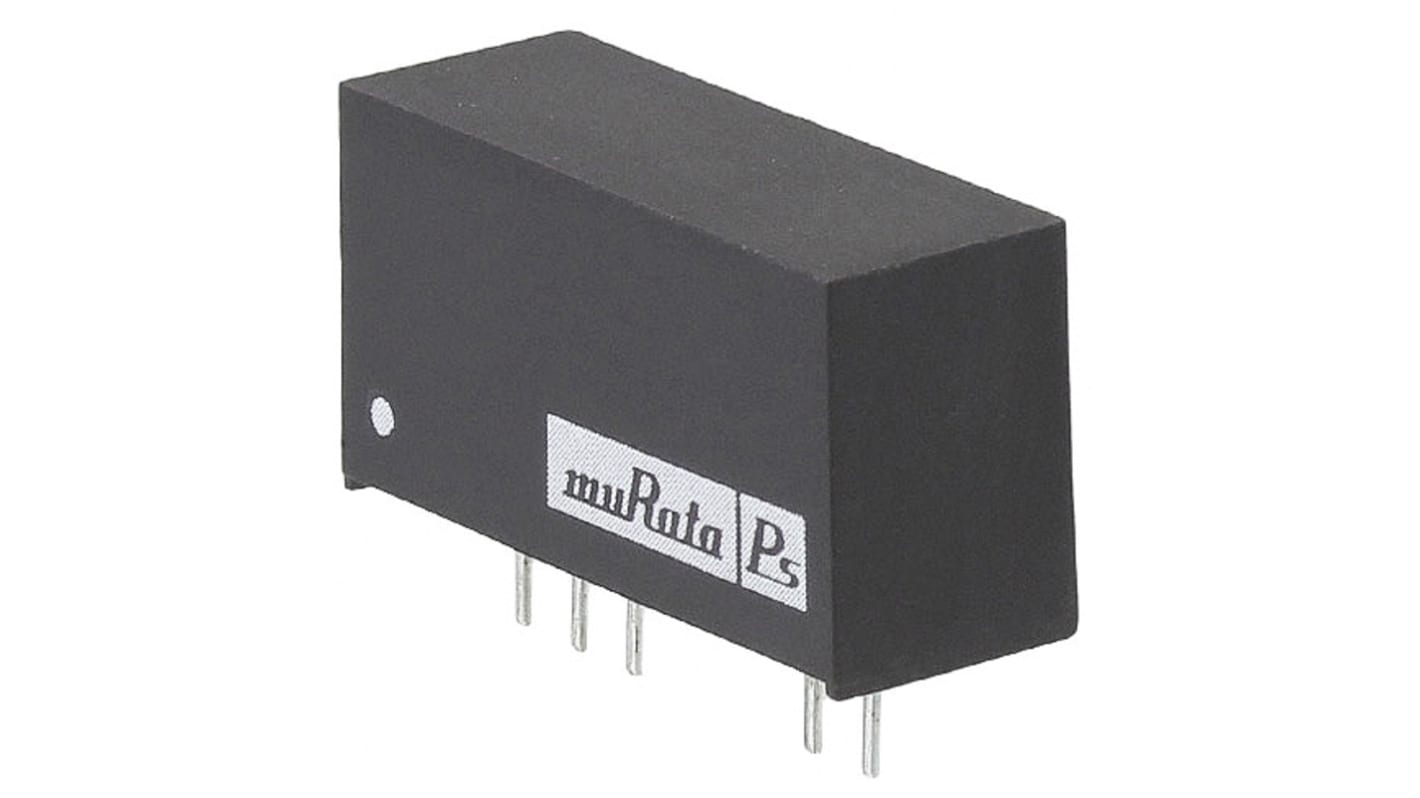

Murata Power Solutions NCS1 DC-DC Converter, 12V dc/ 83mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +105°C

RS Stock No.:: 816-3483
Mfr. Part No.:: NCS1S1212SC
Brand:: Murata Power Solutions

Murata Power Solutions NCS1 DC-DC Converter, 12V dc/ 83mA Output, 4.5 → 18 V dc Input, 1W, Through Hole, +105°C

30 In stock - FREE next working day delivery available

Price Each

£4.39

(exc. VAT)

£5.27

(inc. VAT)

Units	Per unit
1 +	£4.39

RS Stock No.:: 816-3483
Mfr. Part No.:: NCS1S1212SC
Brand:: Murata Power Solutions

Technical Reference

Datasheet

Legislation and Compliance

Product Details

Murata 1W SIP Single Output Regulated Isolated DC-DC Converter - NCS1 Series

The Murata PS NCS1 series of DC/DC converters offers single & dual output voltages from input voltage ranges of 4.5-18V and 9-36V. This power converter is housed in an industry standard package with a standard pinout. The DC/DC converter is encapsulated for superior thermal performance. Applications include telecommunications, battery powered systems, process control and distributed power systems.

4:1 Wide range voltage input
Operating temperature range -40°C to 105°C
Typical load regulation from 0.05%
1 k VDC Isolation
3.3V, 5V and 12V outputs
No electrolytic capacitors
Continuous short circuit protection

Approvals

UL60950

Murata Power Solutions - SIP

Specifications

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	4.5 → 18 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	83mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Isolation Voltage	1kV dc
Length	21.87mm
Depth	11.3mm
Series	NCS1
Load Regulation	0.005
Efficiency	79%
Minimum Temperature	-40°C
Maximum Temperature	+105°C
