Recom R78-T DC/DC Converter, 12V dc/, 12V dc Input 1 A, 12V dc Input, Surface, Screw, 85 °C Max Temp -40 °C Min Temp SIP

View all DC-DC Converters

Subtotal (1 unit)*

£8.82

(exc. VAT)

£10.58

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 8 unit(s) shipping from 27 April 2026
  • Plus 7 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£8.82

*price indicative

RS Stock No.:
811-1432
Mfr. Part No.:
R-78T12-1.0/AL-TRAY
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Minimum Input Voltage

12V dc

Maximum Input Voltage

12V dc

Mount Type

Surface, Screw

Number of Outputs

1

MTBF

367000h

Ripple and Noise

100mV Pk-Pk

Output Current 1

1A

Package Type

SIP

Depth

10mm

Length

23mm

Weight

4.5g

Standards/Approvals

RoHS, 2011/65/EU 6/6

Series

R78-T

Width

25mm

Maximum Operating Temperature

85°C

Minimum Operating Temperature

-40°C

Efficiency

95%

COO (Country of Origin):
TW

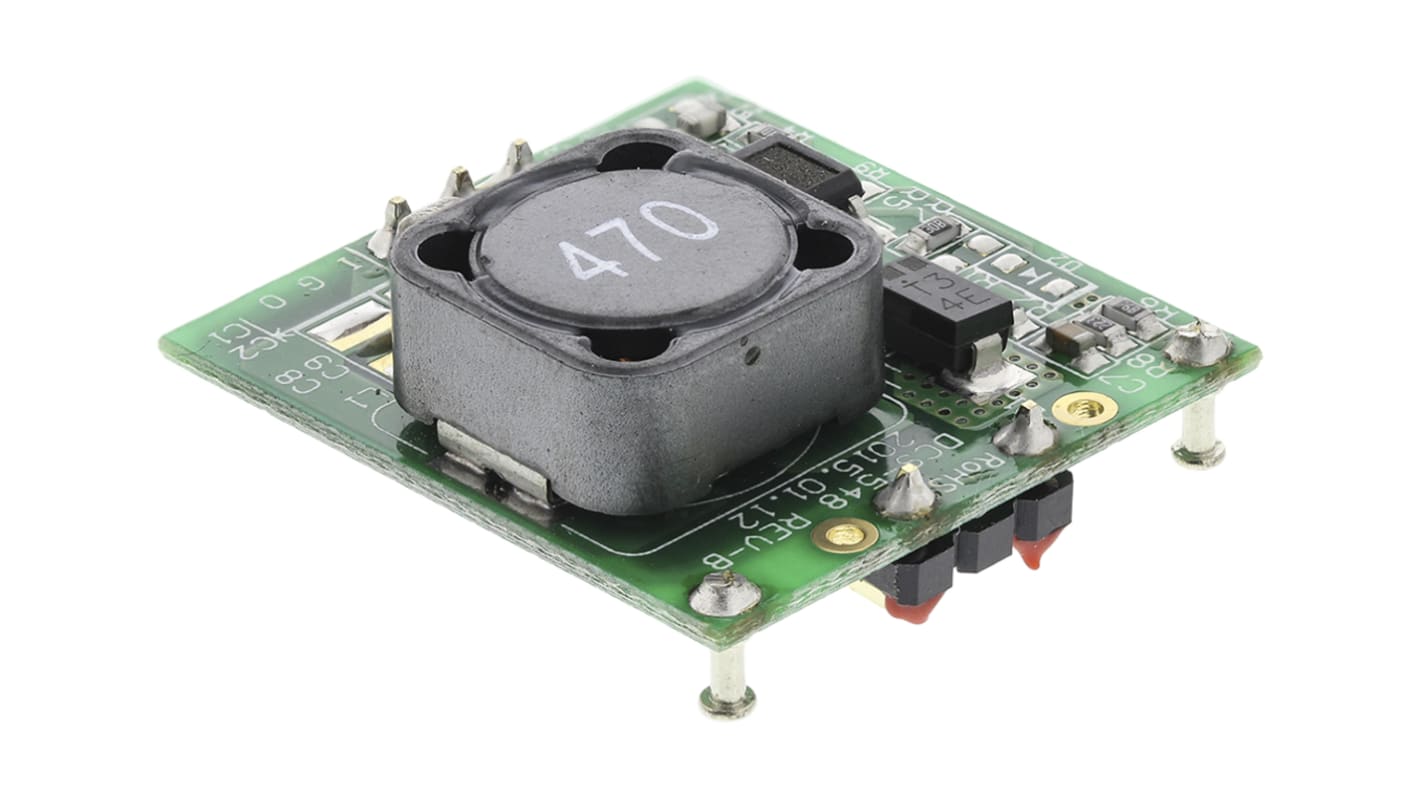

R-78Txx 1.0 Series Single Output DC/DC Converter


The Recom R-78T series of DC-DC converters are compact, low profile SMD switching regulators. They have 3 standard pinning options: AC, AL and FC.

The R-78T series has a high efficiency of up to 95%, which means that these DC-DC converters do not require heatsinks or fans. The switching regulator can operate reliably between -40°C and 85°C without derating. These DC-DC converters are the ideal space-saving solution for portable battery-operated applications.

Efficiency up to 95%

No need for heatsinks

Industry standard Pin-out

1.5A start-up overload capacity

Wide input range 7V-42V

Operating temperature range -40°C to 85°C

Short circuit protection

350kHz fixed switching frequency, shielded magnetics

Low profile

Low cost
