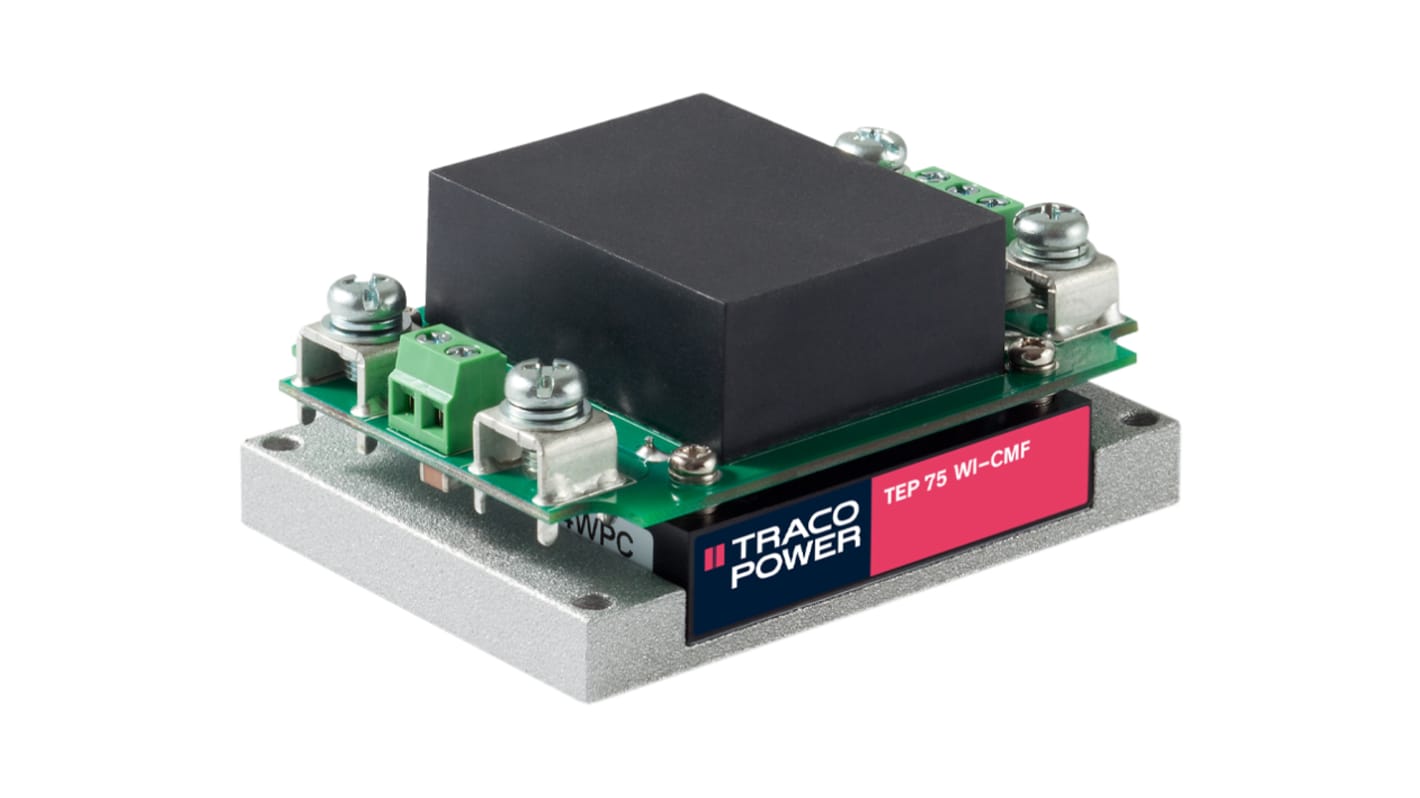

TRACOPOWER TEP 75WI DC-DC Converter, 12V dc/ 6.3A Output, 43 → 160 V dc Input, 75W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 781-6950
- Mfr. Part No.:
- TEP 75-7212WI-CMF
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 unit)*
£217.08
(exc. VAT)
£260.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £217.08 |
| 5 - 9 | £210.56 |
| 10 - 24 | £204.05 |
| 25 - 49 | £195.37 |
| 50 + | £186.69 |
*price indicative
- RS Stock No.:
- 781-6950
- Mfr. Part No.:
- TEP 75-7212WI-CMF
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 75W | |
| Input Voltage Nominal | 72 V dc | |
| Output Current | 6.3A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 2.25kV dc | |
| Depth | 37.3mm | |
| Length | 85mm | |
| Series | TEP 75WI | |
| Load Regulation | 0.001 | |
| Minimum Temperature | -40°C | |
| Efficiency | 91% | |
| Maximum Temperature | +75°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 75W | ||
Input Voltage Nominal 72 V dc | ||
Output Current 6.3A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 2.25kV dc | ||
Depth 37.3mm | ||
Length 85mm | ||
Series TEP 75WI | ||
Load Regulation 0.001 | ||
Minimum Temperature -40°C | ||
Efficiency 91% | ||
Maximum Temperature +75°C | ||
- COO (Country of Origin):
- TW
Traco 75W Single Output Regulated Isolated DC-DC Converter - TEP-75WI Series
75W single output regulated isolated high performance PCB mount dc-dc converter modules in a rugged, sealed metal case with four threaded M3 inserts for attachment of a heatsink (see 706-6420 for suitable heatsink). These single output regulated isolated high performance dc-dc converters have a high efficiency allowing an operating temperature up to +60°C with natural convection cooling without power derating, output voltage trimming and remote On/Off.
Ultra wide 4:1 input voltage range
Soft start
Full load operation up to 60°C with convection cooling
Remote On/Off
Output current limitation
Under voltage lockout
Reverse input voltage protection
Over temperature, over voltage and short circuit protection
Soft start
Full load operation up to 60°C with convection cooling
Remote On/Off
Output current limitation
Under voltage lockout
Reverse input voltage protection
Over temperature, over voltage and short circuit protection
Note
Standards
UL 60950-1, IEC 60950-1, EN 60950-1
