Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	TRACOPOWER
	Output Voltage	±12V dc
	Input Voltage Range	9 → 18 V dc
	Power Rating	6W
	Input Voltage Nominal	12 V dc
	Output Current	±250mA
	Mounting Type	Through Hole
	Isolated	Yes
	Number of Outputs	2
	Package	DIP 24
	Isolation Voltage	1.5kV dc
	Width	20.3mm
	Length	31.8mm
	Depth	10.2mm
	Series	TEN 6N
	Load Regulation	±3%
	Standards Met	UL 60950-1
	Minimum Temperature	-40°C
	Maximum Temperature	+85°C
	Efficiency	82%

	Select all
	Brand TRACOPOWER
	Output Voltage ±12V dc
	Input Voltage Range 9 → 18 V dc
	Power Rating 6W
	Input Voltage Nominal 12 V dc
	Output Current ±250mA
	Mounting Type Through Hole
	Isolated Yes
	Number of Outputs 2
	Package DIP 24
	Isolation Voltage 1.5kV dc
	Width 20.3mm
	Length 31.8mm
	Depth 10.2mm
	Series TEN 6N
	Load Regulation ±3%
	Standards Met UL 60950-1
	Minimum Temperature -40°C
	Maximum Temperature +85°C
	Efficiency 82%

COO (Country of Origin):: TW

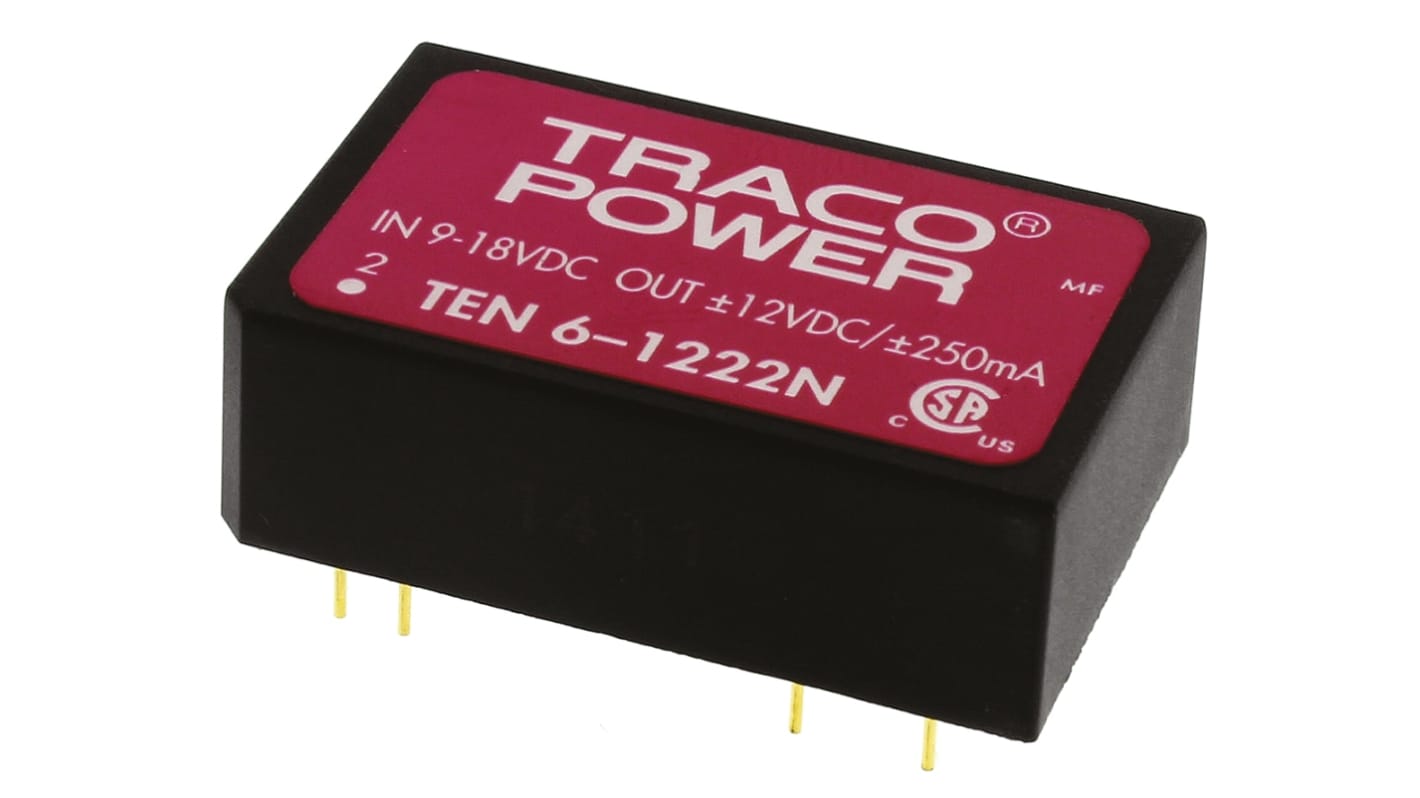

Traco Power TEN 6N Series DC-DC Converter, 82% Efficiency, Through Hole Mount - TEN 6-1222N

This Traco Power is an efficient and versatile isolated DC-DC converter designed for a wide input voltage range of 12V DC. With a power rating of 6W, this converter offers high efficiency and reliability, making it ideal for applications in the fields of automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Dual output converter with ±12V DC output voltage
• Through hole mounting for easy installation
• DIP 24 package for compatibility with various applications
• High efficiency of 82% for energy saving operation
• Isolated design ensures safety and protection
• Wide input voltage range of 9 18V DC for flexibility in usage
• Load regulation of ±3% for stable performance
• Operating temperature range of 40°C to +85°C for versatile applications
• Overload protection for added safety measures
• No minimum load required for convenience

Applications

• Suitable for use in Industrial automation systems
• Ideal for electronic control modules and power supplies
• Perfect for Electrical equipment and machinery
• Used in mechanical systems for reliable power conversion
• Suitable for applications requiring high efficiency and stable performance

Can it operate in extreme temperature conditions?

Yes, the Traco Power TEN 6-1222N can operate in a wide temperature range from -40°C to +85°C.

Will it provide stable output voltage under varying loads?

Yes, this converter offers excellent load regulation of ±3% for a stable output.

Is it compatible with different input voltage requirements?

Yes, this converter supports a wide input voltage range of 9-18V DC providing flexibility in usage.

Can it be used for applications requiring dual output voltages?

Yes, it is a dual output converter with ±12V DC output voltages.

Does it offer overload protection for added safety?

Yes, this converter comes with overload protection to ensure the safety of your equipment.

Units	Per unit
1 - 4	£19.43
5 - 9	£18.85
10 - 24	£18.27
25 - 49	£17.49
50 +	£16.72

TRACOPOWER TEN 6N DC-DC Converter, ±12V dc/ ±250mA Output, 9 → 18 V dc Input, 6W, Through Hole, +85°C Max Temp
