Murata Power Solutions MEE3 DC-DC Converter, 9V dc/ 333mA Output, 4.5 → 5.5 V dc Input, 3W, Through Hole, +85°C
- RS Stock No.:
- 751-1443
- Mfr. Part No.:
- MEE3S0509SC
- Brand:
- Murata Power Solutions
42 In stock - FREE next working day delivery available
Added
Price Each
£8.96
(exc. VAT)
£10.75
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £8.96 |
| 5 - 9 | £8.70 |
| 10 - 24 | £8.42 |
| 25 - 49 | £8.16 |
| 50 + | £7.88 |
- RS Stock No.:
- 751-1443
- Mfr. Part No.:
- MEE3S0509SC
- Brand:
- Murata Power Solutions
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

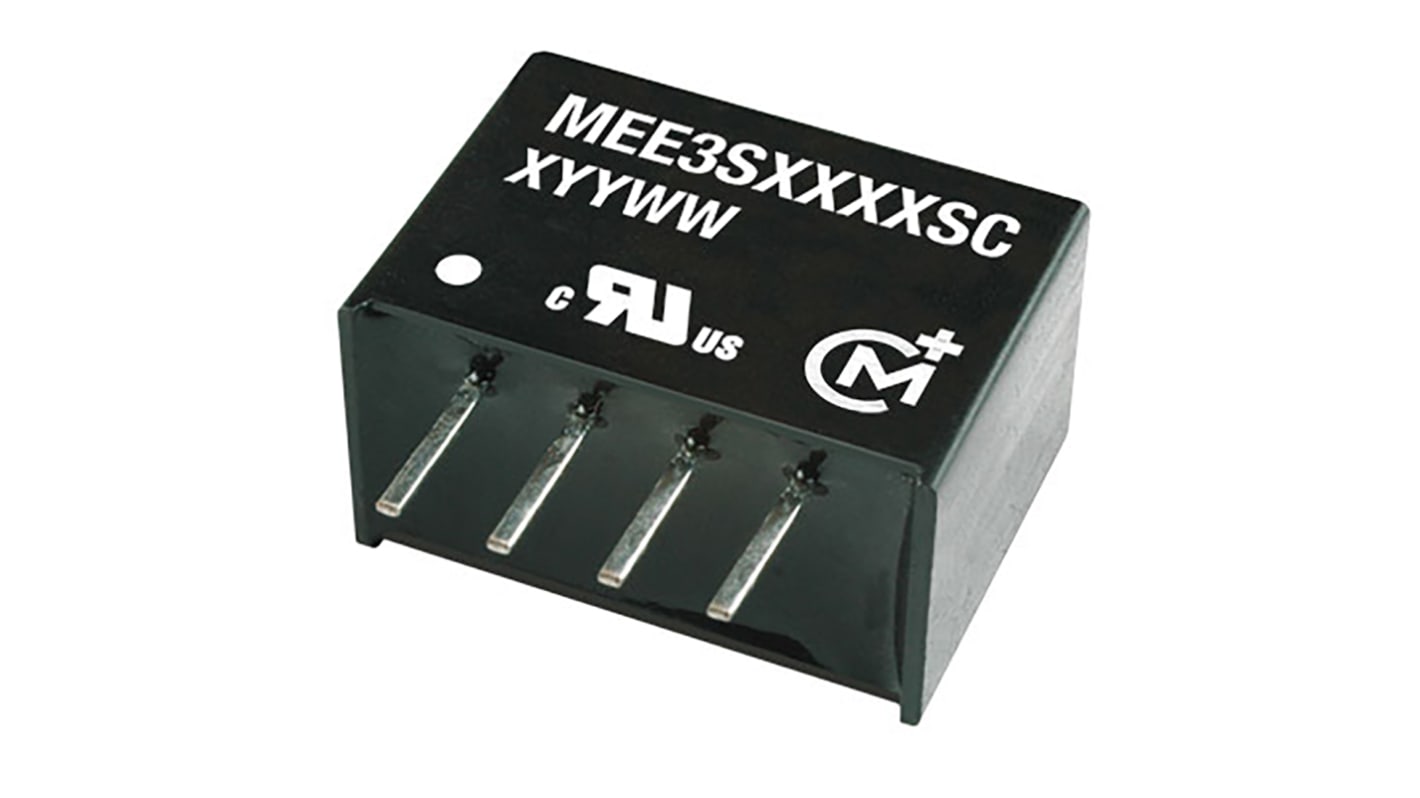

Murata Isolated 3W Single Output DC/DC Converter - MEE3 Series
MEE3 series isolated 3W single output DC/DC converters with an industry standard SIP package. These 3W single output isolated DC/DC converters have a high efficiency and power density and offer a full 3W load performance under a wide temperature range. Typical applications this MEE3 series of DC/DC converters include providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation.
High efficiency of up to 89% typically
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material
High power density of 2.68W/cm3
Industry standard pinout
Performance at full load at wide temperature range of -40°C to 85°C
Fully encapsulated with toroidal magnetics
No heatsink or external components required
No electrolytic or tantalum capacitors
UL 94V-0 package material
Note
MTBF to MIL-HDBK-217F FN2 with nominal input voltage at full load
Standards
UL 60950
Approvals
cULus
Murata Power Solutions - SIP
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 9V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 5 V dc |
| Output Current | 333mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Package | SIP |
| Isolation Voltage | 1kV dc |
| Length | 14.15mm |
| Depth | 10.15mm |
| Series | MEE3 |
| Load Regulation | ±6.5% |
| Efficiency | 87% |
| Minimum Temperature | -40°C |
| Maximum Temperature | +85°C |
