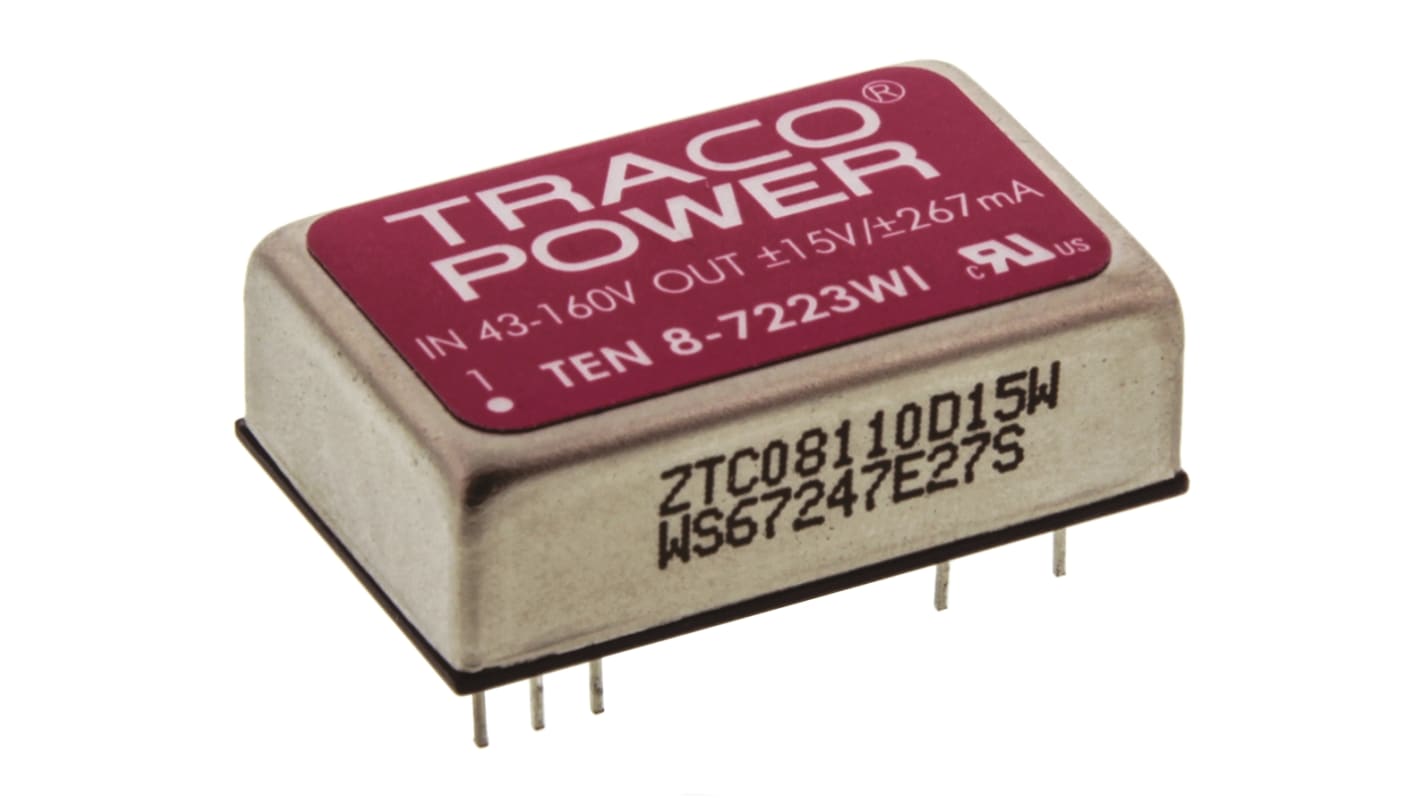

TRACOPOWER TEN 8WI DC-DC Converter, ±15V dc/ ±267mA Output, 43 → 160 V dc Input, 8W, Through Hole, +85°C Max
- RS Stock No.:
- 733-1819
- Mfr. Part No.:
- TEN 8-7223WI
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£39.33
(exc. VAT)
£47.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £39.33 |
*price indicative
- RS Stock No.:
- 733-1819
- Mfr. Part No.:
- TEN 8-7223WI
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 43 → 160 V dc | |
| Power Rating | 8W | |
| Input Voltage Nominal | 72 V dc | |
| Output Current | ±267mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP 24 | |
| Isolation Voltage | 1.5kV dc | |
| Length | 32mm | |
| Depth | 10.2mm | |
| Width | 20.3mm | |
| Railway Approved | Yes | |
| Series | TEN 8WI | |
| Load Regulation | ±5% | |
| Minimum Temperature | -40°C | |
| Medical Approved | No | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 43 → 160 V dc | ||
Power Rating 8W | ||
Input Voltage Nominal 72 V dc | ||
Output Current ±267mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP 24 | ||
Isolation Voltage 1.5kV dc | ||
Length 32mm | ||
Depth 10.2mm | ||
Width 20.3mm | ||
Railway Approved Yes | ||
Series TEN 8WI | ||
Load Regulation ±5% | ||
Minimum Temperature -40°C | ||
Medical Approved No | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Traco 6.6W & 8W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 8WI Series
The Traco Power TEN 8WI series is a range of isolated, 8 Watt, DC-DC converters in a DIP-24 package with industry-standard footprint. With their high efficiency these regulated converters allows an operating temperature range of -40°C to +85°C. The TEN 8WI series feature excellent EMC characteristics and EN 50155 approval making these high performance DC-DC converters the best choice for applications in railway and transportation systems, as well as wireless networks, telecom/datacom, industry control systems and measurement equipments.
DIP-24 metal package
Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC
EN 50155 approval for railway applications
Thermal shock and vibration resistant according EN 61373
High efficiency up to 88 %
No minimum load required
Operating temperature range –40°C to +85°C
Remote On/Off
Under voltage lock-out circuit
Shielded metal case with insulated base plate
Lead free design, RoHS compliant
Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC
EN 50155 approval for railway applications
Thermal shock and vibration resistant according EN 61373
High efficiency up to 88 %
No minimum load required
Operating temperature range –40°C to +85°C
Remote On/Off
Under voltage lock-out circuit
Shielded metal case with insulated base plate
Lead free design, RoHS compliant
Standards
UL/cUL 60950-1, IEC/EN 60950-1, EN 50155
Approvals
UL/cUL, Raylway
