Murata Power Solutions NKA DC-DC Converter, ±5V dc/ ±100mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C
- RS Stock No.:
- 689-4955
- Mfr. Part No.:
- NKA0505SC
- Brand:
- Murata Power Solutions
Available to back order for despatch 24/06/2024
Added
Price Each
£6.64
(exc. VAT)
£7.97
(inc. VAT)
| Units | Per unit |
| 1 - 4 | £6.64 |
| 5 - 9 | £6.44 |
| 10 - 24 | £6.24 |
| 25 - 49 | £6.04 |
| 50 + | £5.84 |
Alternatives
This product is not currently available. Here are our alternative recommendations.
- RS Stock No.:
- 689-4955
- Mfr. Part No.:
- NKA0505SC
- Brand:
- Murata Power Solutions
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

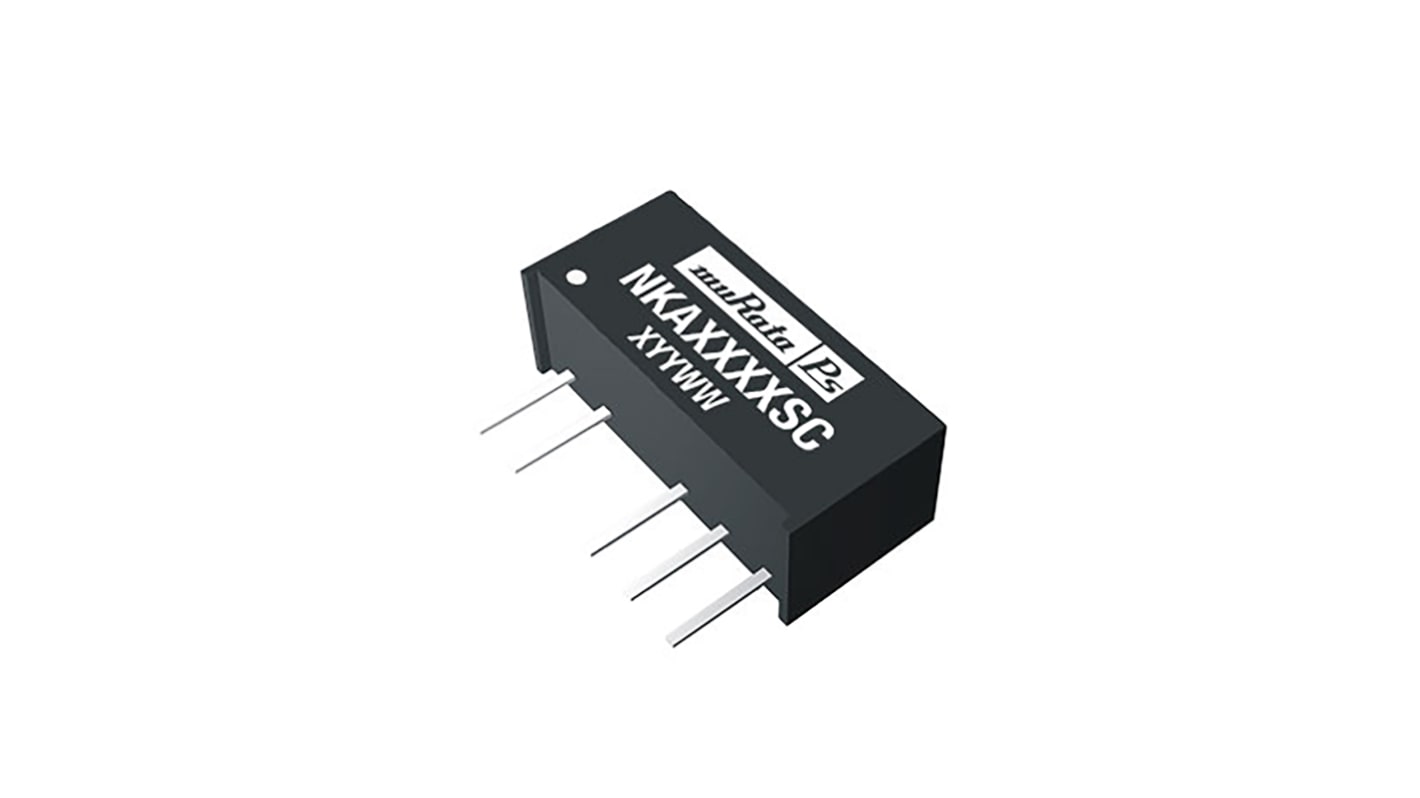

Murata 1W SIP Dual Output Unregulated Isolated DC-DC Converter - NKA Series
Isolated SIP7 module
3kVdc isolation
Fully encapsulated
UL 94V-0 package material
MTTF up to 1.6 million hours
3kVdc isolation
Fully encapsulated
UL 94V-0 package material
MTTF up to 1.6 million hours
Murata Power Solutions - SIP
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±5V dc |
| Input Voltage Range | 4.5 → 5.5 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 5 V dc |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | SIP |
| Isolation Voltage | 3kV dc |
| Length | 16.5mm |
| Depth | 7.55mm |
| Series | NKA |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
