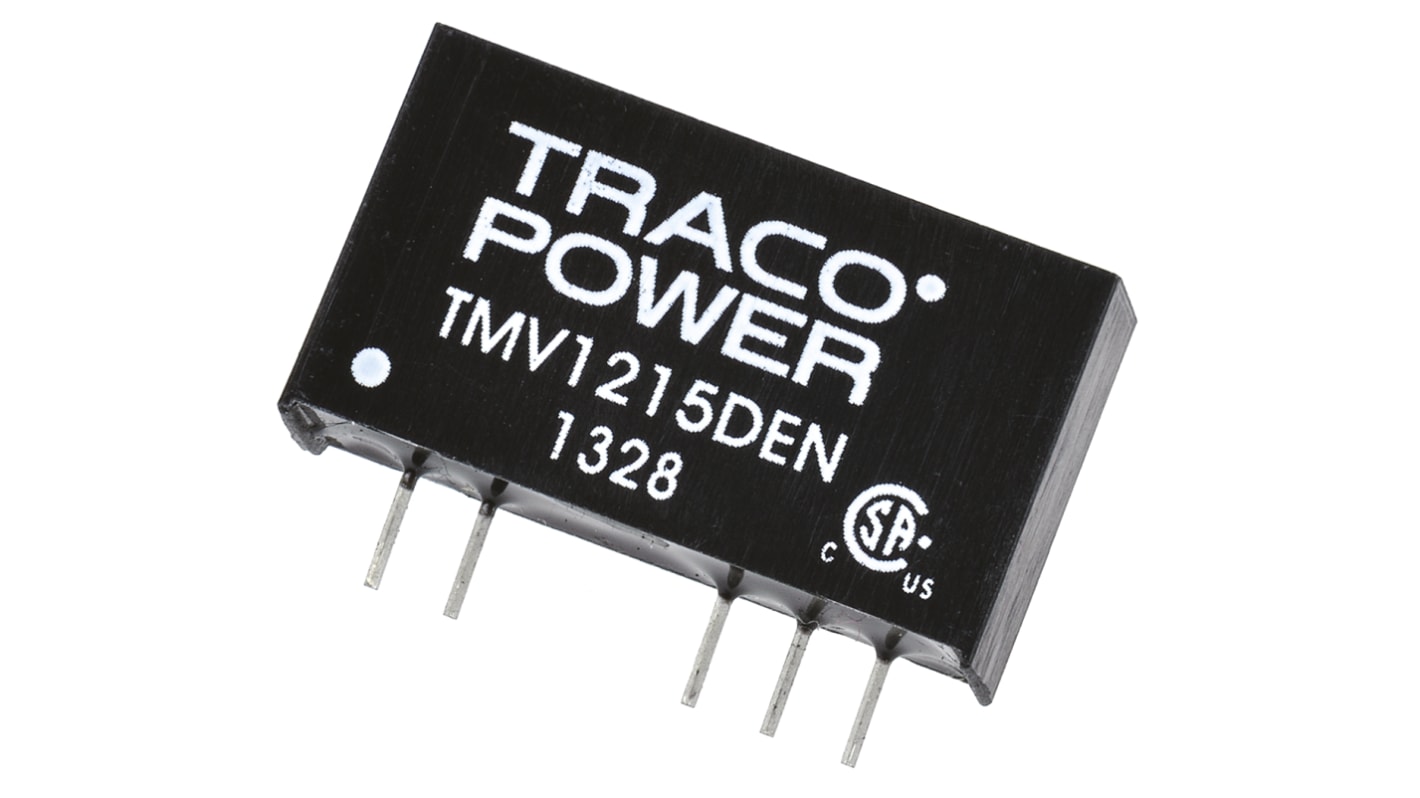

TRACOPOWER TMV EN DC-DC Converter, ±15V dc/ ±30mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max
- RS Stock No.:
- 666-4118
- Mfr. Part No.:
- TMV 1215DEN
- Brand:
- TRACOPOWER
Subtotal (1 unit)*
£10.45
(exc. VAT)
£12.54
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 30 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £10.45 |
*price indicative
- RS Stock No.:
- 666-4118
- Mfr. Part No.:
- TMV 1215DEN
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±30mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 6kV dc | |
| Length | 22mm | |
| Depth | 12.5mm | |
| Series | TMV EN | |
| Load Regulation | ±10% | |
| Efficiency | 74% | |
| Minimum Temperature | -40°C | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±30mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 6kV dc | ||
Length 22mm | ||
Depth 12.5mm | ||
Series TMV EN | ||
Load Regulation ±10% | ||
Efficiency 74% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Traco Power DC-DC Converter, 75% Efficiency, SIP Format - TMV EN Series - TMV 1215DEN
Level out the voltage supply to your circuit using this DC-DC converter from Traco Power. It steps up an input voltage between 10.8 and 13.2V DC to a stable output of ±15V DC. High isolation of 6,000V DC between the input and output shields the system from electrical hazards. Dual outputs mean the unit pulls double duty by supplying power to a pair of devices at once. Thanks to integrated short-circuit protection with automatic recovery, you can trust it to pick up right where it left off if there's a glitch.
Features & Benefits
• Tough nickel iron pins feature tin plating for corrosion resistance
• Efficiency rating of 75% for minimal energy waste
• Start-up time of up to 270ms ensures rapid conversion
• Mean time between failures of 2 million hours for reliable performance
• Efficiency rating of 75% for minimal energy waste
• Start-up time of up to 270ms ensures rapid conversion
• Mean time between failures of 2 million hours for reliable performance
Applications
• Energy industry
• Consumer electronics
• Robotics
• HVAC systems
• Consumer electronics
• Robotics
• HVAC systems
How accurate is this converter?
A voltage set accuracy of ±3% means you can be sure of minimal output errors with this converter.
Is the unit insulated?
Yes, this converter has robust non-conductive plastic housing that acts as an insulator. This means you can safely handle it without risking an electric shock.
