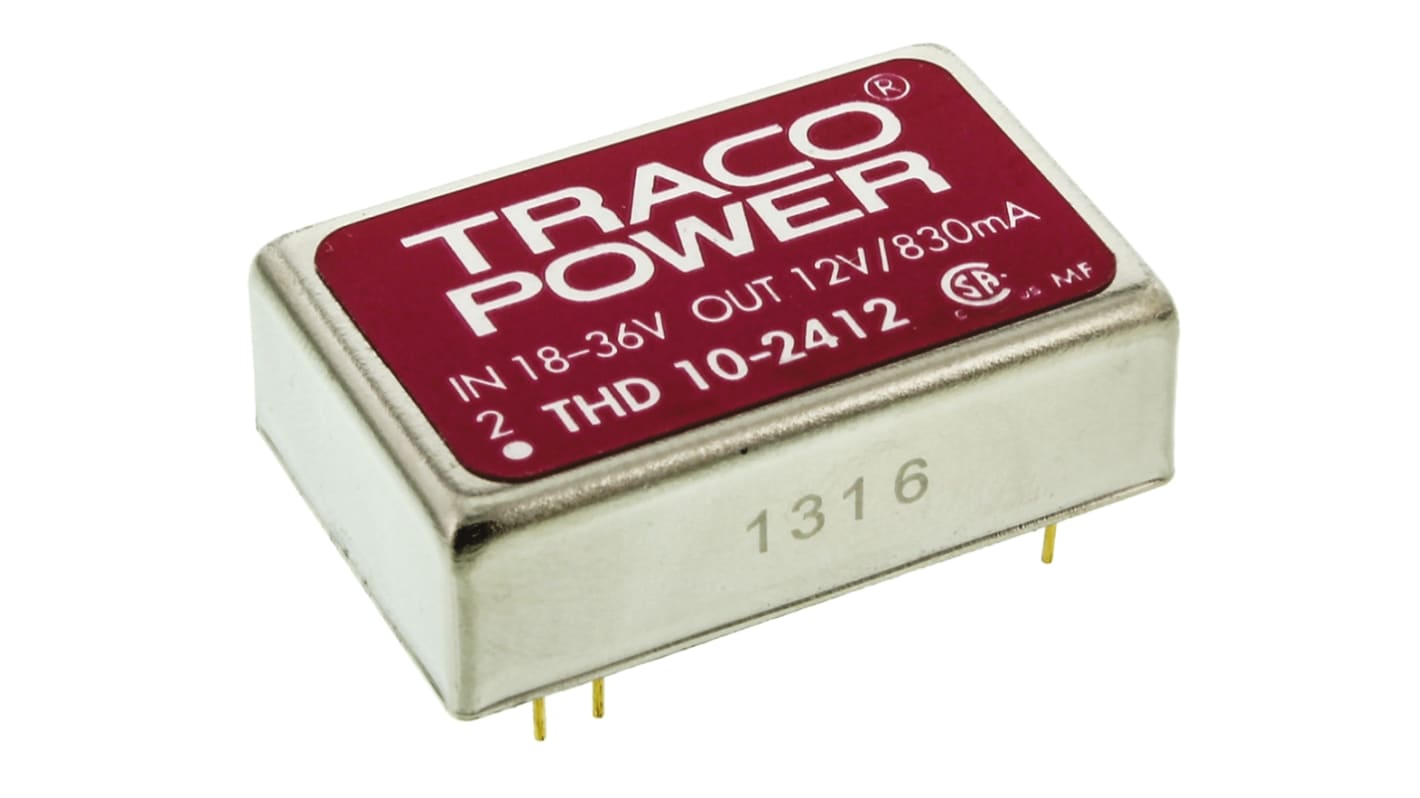

TRACOPOWER THD 10 DC-DC Converter, 12V dc/ 830mA Output, 18 → 36 V dc Input, 10W, Through Hole, +71°C Max Temp

RS Stock No.:: 510-5992
Mfr. Part No.:: THD 10-2412
Brand:: TRACOPOWER

TRACOPOWER THD 10 DC-DC Converter, 12V dc/ 830mA Output, 18 → 36 V dc Input, 10W, Through Hole, +71°C Max Temp

Price Each**

£36.51

(exc. VAT)

£43.81

(inc. VAT)

140 In stock - FREE next working day delivery available*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Units	Per unit
1 - 4	£36.51
5 - 9	£35.42
10 - 24	£34.32
25 - 49	£32.87
50 +	£31.40

**price indicative

RS Stock No.:: 510-5992
Mfr. Part No.:: THD 10-2412
Brand:: TRACOPOWER

Datasheet

Traco 10W Regulated Isolated DC-DC Converter - THD10 Series

The Traco Power THD 10 series is a range of 10W, single output, regulated, isolated, high performance DC-DC converters with a low profile package and wide input voltage range. These isolated high performance DC-DC converters have an internal EMI filter to EN55022 class A and a full SMD-design using ceramic capacitors for reliability and long life. Typical applications for these DC-DC converters include industrial electronics, instrumentation, data communication systems and battery operated equipment.

Products not recommended for new designs please refer to the alternative at the bottom of the page
Very high power density in DIP–24 package
Wide 2:1 input range
Very high efficiency up to 87%
I/O isolation 1500V
Input filter to meet EN 55022, class A without ext. components
Low ripple and noise
Continuous short circuit protection
Operating temp. range –40°C to +71°C

Standards

UL/cUL 60950-1, EN 60950-1, IEC 60950-1

Approvals

CSA certified for Canada and US, CB

TRACOPOWER THD 10 Series DC-DC Converter, 12V DC Output Voltage, 10W Power Rating - THD 10-2412

This DC-DC converter effectively converts a 24V DC input to a stable 12V DC output. With a power rating of 10W and a compact design, it serves as an efficient and isolated power supply solution for various projects.

Features & Benefits

• Provides a consistent output voltage of 12V DC for dependable performance
• Accepts input voltages from 18V to 36V DC for versatility
• Achieves an efficiency rating of 87% to enhance performance
• Offers an isolation voltage of 1.5kV DC for user safety
• Supports load regulation of ±1.2% for accurate output
• Compact through hole package simplifies installation in limited space

Applications

• Power supply for embedded systems
• Suitable for industrial control equipment
• Ideal for battery-operated devices requiring voltage reduction
• Employed in measurement and automation tasks
• Utilised in communication systems that need reliable voltage conversion

What input voltage range is compatible with this device?

It accepts input voltages from 18V to 36V DC, providing flexibility across various applications.

How does the efficiency impact overall system performance?

The 87% efficiency minimises energy loss, enhancing overall system effectiveness and reliability.

Is it possible to mount this converter in a confined space?

Yes, the compact through hole design allows for easy installation in tight areas.

What precautions should be taken during installation?

Ensure proper handling to maintain the isolation voltage and prevent potential damage during setup.

Can this unit be used in sensitive electronic systems?

Yes, the isolated output makes it suitable for powering sensitive devices without the risk of interference.

Attribute	Value
Output Voltage	12V dc
Input Voltage Range	18 → 36 V dc
Power Rating	10W
Input Voltage Nominal	24 V dc
Output Current	830mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	1.5kV dc
Length	31.8mm
Depth	10.2mm
Width	20.3mm
Railway Approved	No
Series	THD 10
Load Regulation	±1.2%
Standards Met	IEC/UL 60950-1
Medical Approved	No
Efficiency	87%
Minimum Temperature	-40°C
Maximum Temperature	+71°C
