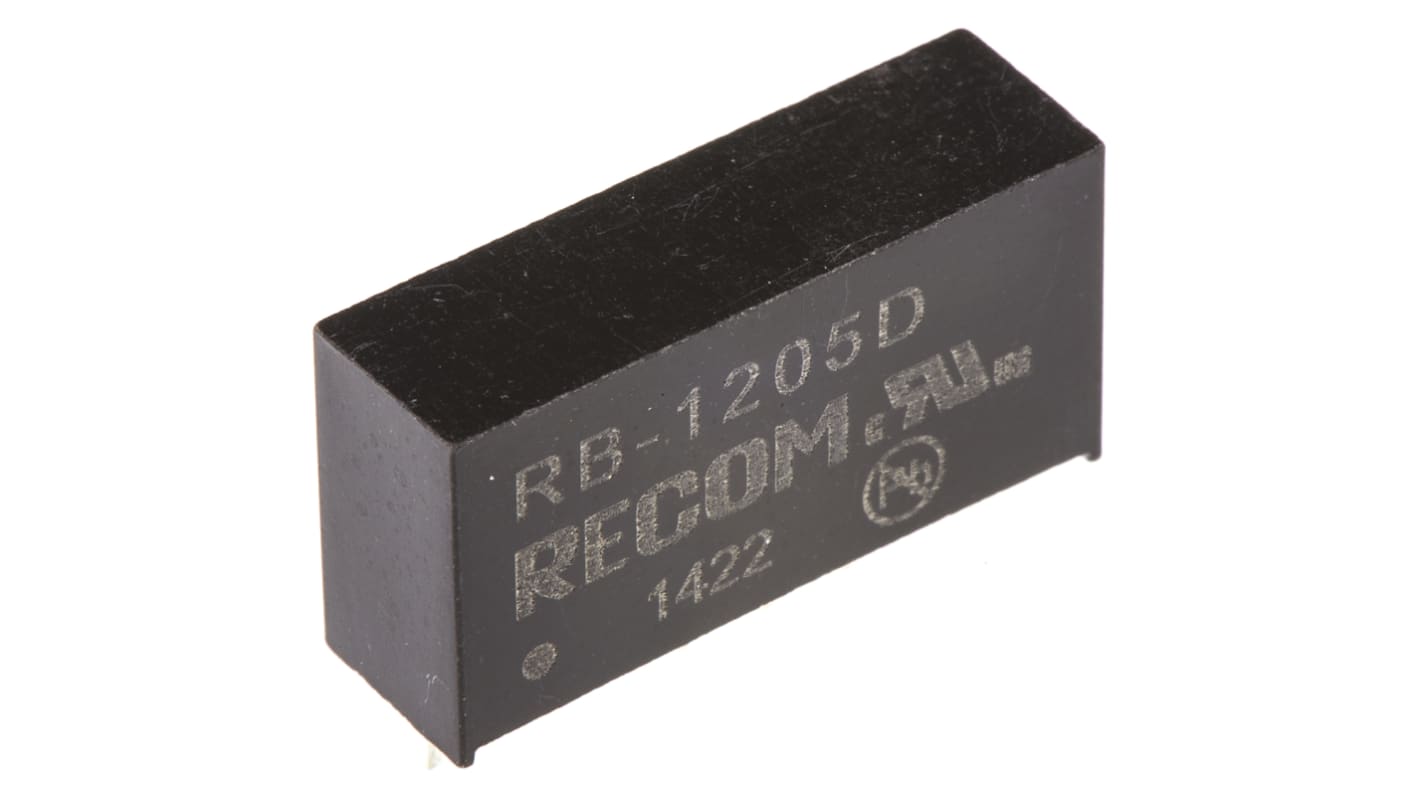

Recom RB DC-DC Converter, ±5V dc/ ±100mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 473-4943
- Mfr. Part No.:
- RB-1205D
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£5.95
(exc. VAT)
£7.14
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 25 unit(s) ready to ship
- Plus 999,999,974 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £5.95 |
| 5 - 9 | £5.78 |
| 10 - 24 | £5.59 |
| 25 - 49 | £5.42 |
| 50 + | £5.24 |
*price indicative
- RS Stock No.:
- 473-4943
- Mfr. Part No.:
- RB-1205D
- Brand:
- Recom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | ±5V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | ±100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP | |
| Isolation Voltage | 500V ac | |
| Length | 19.6mm | |
| Width | 6mm | |
| Depth | 10.2mm | |
| Series | RB | |
| Load Regulation | 10% | |
| Minimum Temperature | -40°C | |
| Standards Met | CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1 | |
| Efficiency | 70 → 78% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage ±5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current ±100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 500V ac | ||
Length 19.6mm | ||
Width 6mm | ||
Depth 10.2mm | ||
Series RB | ||
Load Regulation 10% | ||
Minimum Temperature -40°C | ||
Standards Met CAN/CSA-C22.2 No. 60950-1, IEC60950-1, UL 60950-1 | ||
Efficiency 70 → 78% | ||
Maximum Temperature +85°C | ||
