TRACOPOWER TMR 2 DC/DC Converter, 5V dc/ 400 mA, 18V dc Input, 9V Input 1 W, PCB, 85 °C Max Temp -40 °C Min Temp, 8-Pin
- RS Stock No.:
- 433-8236
- Distrelec Article No.:
- 169-59-829
- Mfr. Part No.:
- TMR 1211
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£12.10
(exc. VAT)
£14.52
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 98 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £12.10 |
| 5 - 9 | £11.74 |
| 10 - 24 | £11.37 |
| 25 - 49 | £10.89 |
| 50 + | £10.40 |
*price indicative
- RS Stock No.:
- 433-8236
- Distrelec Article No.:
- 169-59-829
- Mfr. Part No.:
- TMR 1211
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 18V dc | |
| Output Current 1 | 400mA | |
| Output Current 2 | 400mA | |
| Mount Type | PCB | |
| Input Ratio | 2:1 | |
| MTBF | 1000000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 9/18 V | |
| Isolation Voltage | 1.6kV dc | |
| Number of Pins | 8 | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Series | TMR 2 | |
| Standards/Approvals | No | |
| Length | 21.8mm | |
| Width | 9.1mm | |
| Depth | 11.2mm | |
| Efficiency | 81% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 18V dc | ||
Output Current 1 400mA | ||
Output Current 2 400mA | ||
Mount Type PCB | ||
Input Ratio 2:1 | ||
MTBF 1000000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 9/18 V | ||
Isolation Voltage 1.6kV dc | ||
Number of Pins 8 | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Series TMR 2 | ||
Standards/Approvals No | ||
Length 21.8mm | ||
Width 9.1mm | ||
Depth 11.2mm | ||
Efficiency 81% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- TW

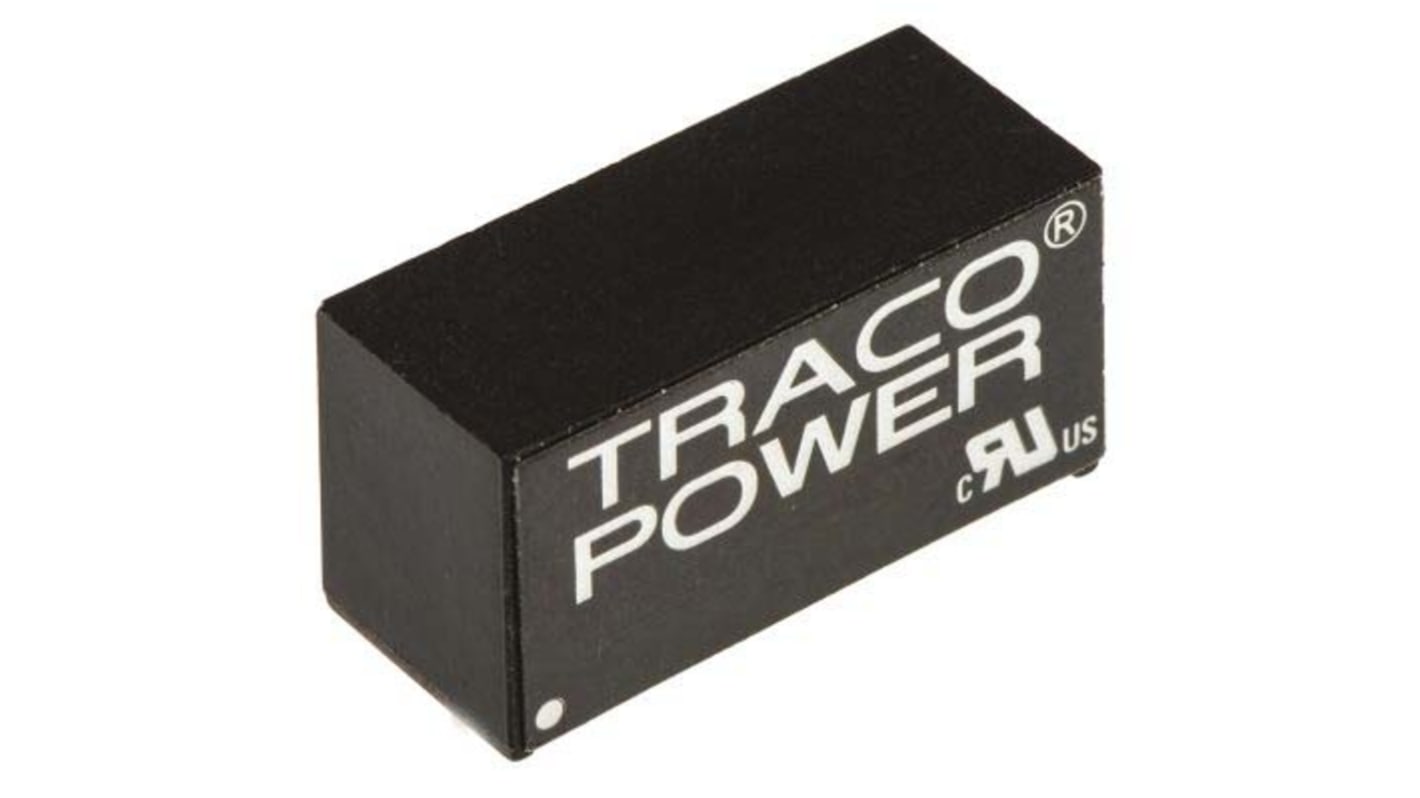

Traco Power DC-DC Converter, 81% Efficiency, SIP-8 Format - TMR 2 Series - TMR 1211
Seeking a space-saving power and conversion solution? The search is over thanks to this DC-DC converter from Traco Power. It takes any voltage from a broad 2:1 input range of 9 to 18V DC and steps it down to a carefully regulated 5V DC output that's just the thing for your sensitive battery-supplied components. You'll find it's a practical pick when you're short on board space too, as its SIP-8 format is super-compact with a footprint of only 2cm². An 81% efficiency rating means it produces little waste heat and doesn't need a heatsink or fan.
Features & Benefits
• Remote On/Off feature lets you control the device from afar
• Low ripple and noise up to 50mVp-p means minimal disruption from EMI
• Comes with indefinite short-circuit protection to shield you and your kit from common current faults
• Shock and vibration resistance for safe use near moving machinery
• Works reliably across a wide -40°C to +85°C operating temperature range
Applications
• Industrial automation
• Telecommunications networks
• Instrumentation
Does this device protect against surges?
Yes. As it's isolated up to 1.6kV DC, you and your equipment are safe from the harmful effects of rogue electrical spikes.
