TRACOPOWER TEN 12 DC/DC Converter, 15V dc/ 400 mA, 36V dc Input, 9V Input 12 W, PCB, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 396-5332
- Mfr. Part No.:
- TEN 12-2423
- Brand:
- TRACOPOWER
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£51.99
(exc. VAT)
£62.39
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £51.99 |
| 5 - 9 | £50.43 |
| 10 - 24 | £48.87 |
| 25 - 49 | £46.79 |
| 50 + | £44.71 |
*price indicative
- RS Stock No.:
- 396-5332
- Mfr. Part No.:
- TEN 12-2423
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 400mA | |
| Output Current 2 | 400mA | |
| Mount Type | PCB | |
| Output Voltage 2 | -15V dc | |
| Input Ratio | 4:1 | |
| MTBF | 700000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | -1 to 1 % | |
| Number of Pins | 5 | |
| Isolation Voltage | 1.5kV dc | |
| Package Type | Surface Mount | |
| Maximum Output Power | 12W | |
| Depth | 10.2mm | |
| Standards/Approvals | No | |
| Width | 25.4mm | |
| Series | TEN 12 | |
| Length | 50.8mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 84% | |
| Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 400mA | ||
Output Current 2 400mA | ||
Mount Type PCB | ||
Output Voltage 2 -15V dc | ||
Input Ratio 4:1 | ||
MTBF 700000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range -1 to 1 % | ||
Number of Pins 5 | ||
Isolation Voltage 1.5kV dc | ||
Package Type Surface Mount | ||
Maximum Output Power 12W | ||
Depth 10.2mm | ||
Standards/Approvals No | ||
Width 25.4mm | ||
Series TEN 12 | ||
Length 50.8mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 84% | ||
- COO (Country of Origin):
- TW

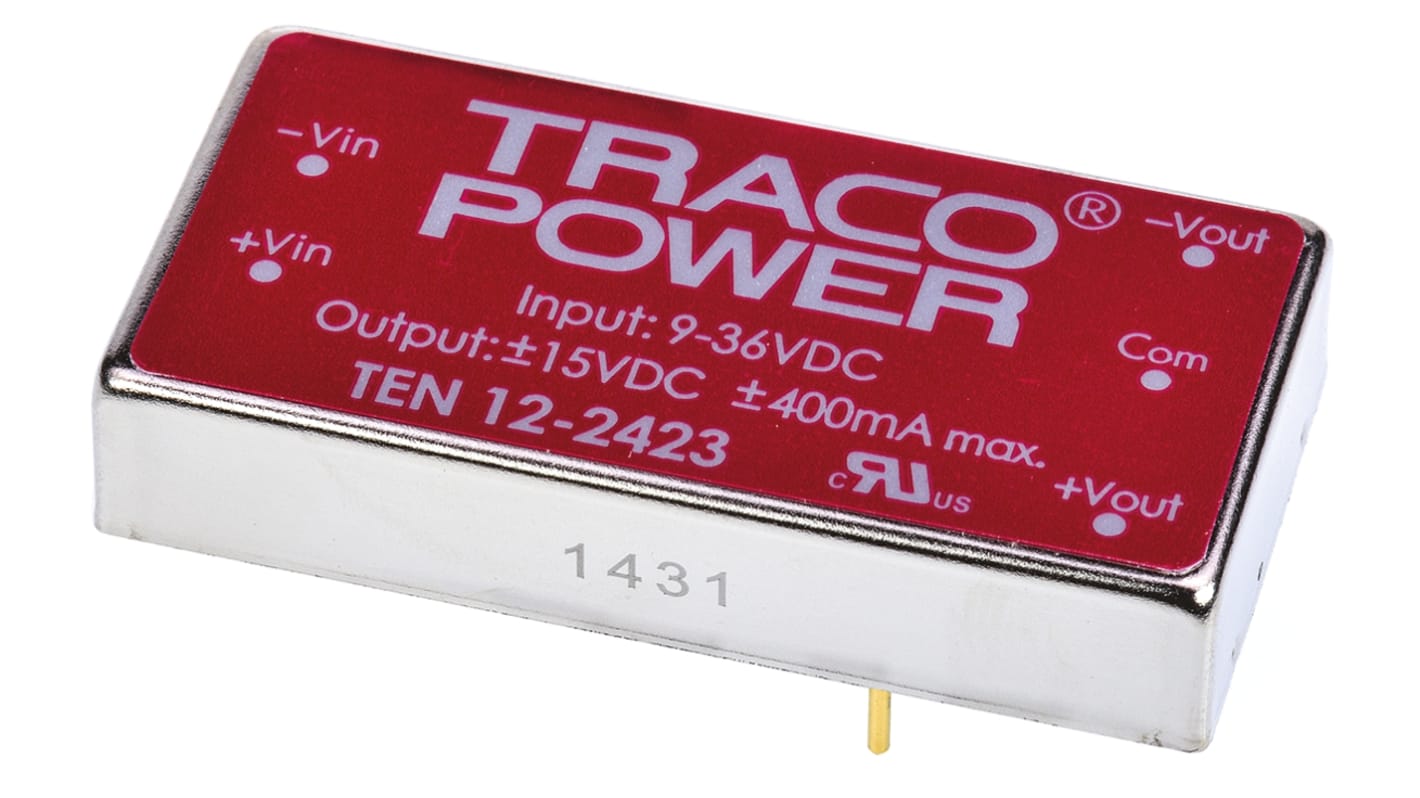

Traco Power DC-DC Converter, Short-Circuit Protection, 1.5kV DC Isolation Voltage - TEN 12 Series - TEN 12-2423
Want a power supply that's always on the level? Trust this DC-DC converter from Traco Power. It adjusts a wide input range between 9 and 36V DC to the steady 15V DC output your system needs for smooth running. As the unit delivers an isolation voltage of up to 1.5kV DC, it puts up a barrier between the input and output sides to prevent electrical hazards. Mount it in a jiffy by soldering the pins to the through holes on your board.
• Integrated continuous short-circuit protection to prevent electrical faults
• Tough nickel-plated steel case resists corrosion, so is safe for use in damp settings
• Low ripple and noise of 50mVpk-pk for reduced electrical disturbance
Applications
• Consumer electronics
• Telecommunications networks
• Security systems
• Computer peripherals
How Durable is this converter?
A mean time between failures of more than 700,000 hours indicates it's built to stand the test of time with no maintenance.
What's the efficiency rating of this converter?
An efficiency rating of 84% indicates this converter produces minimal heat waste during the conversion process. This improves system stability and reduces the risk of component damage.
Approvals
UL Recognised; EN60950; UL1950
