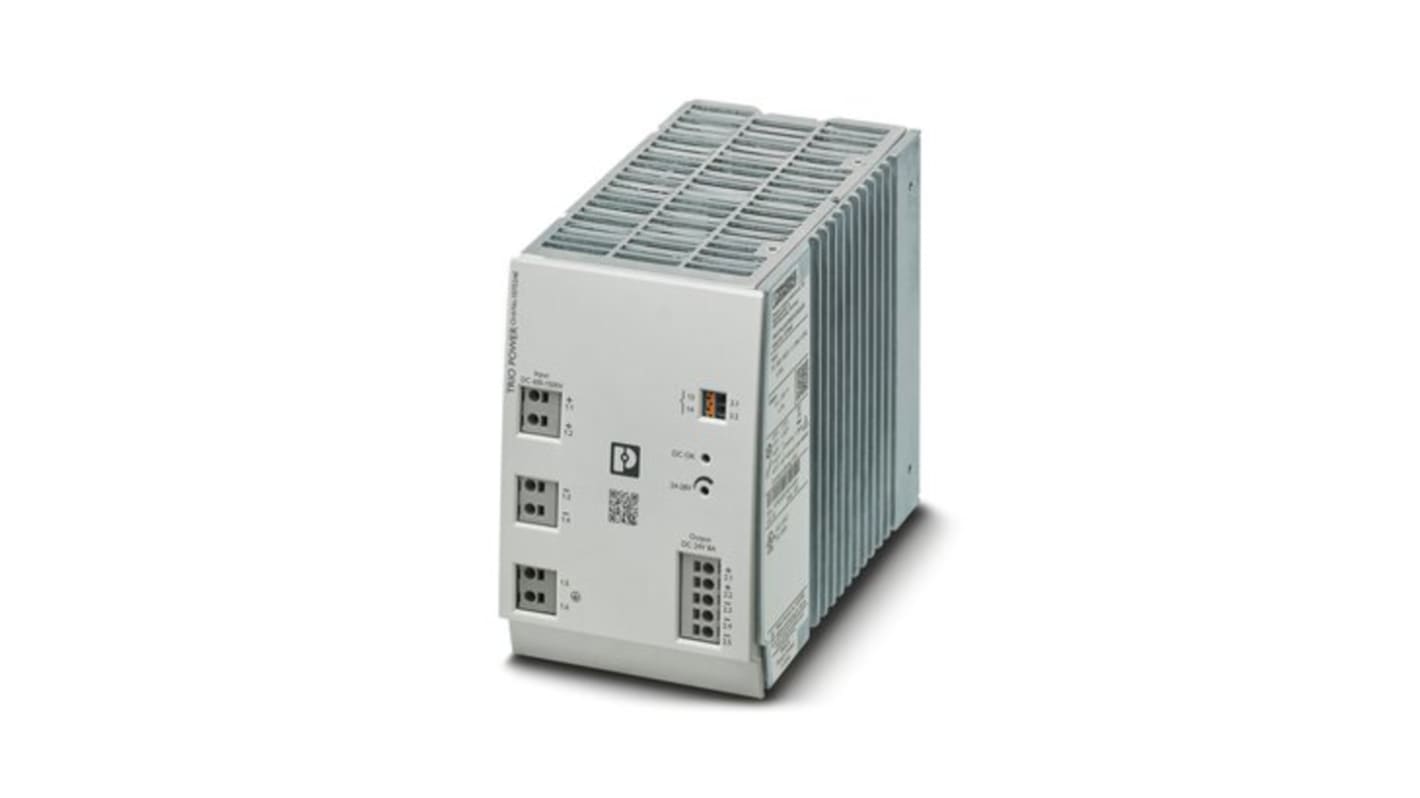

Phoenix Contact TRIO-PS-2G DC/DC Converter, 24V dc/ 8 A, 1500V dc Input, 1500V dc Input, DIN Rail 192 W, 85 °C Max Temp
- RS Stock No.:
- 287-7616
- Distrelec Article No.:
- 303-09-457
- Mfr. Part No.:
- 1075240
- Brand:
- Phoenix Contact
Subtotal (1 unit)*
£488.32
(exc. VAT)
£585.98
(inc. VAT)
FREE delivery for orders over £60.00
- Ready to ship from 19 October 2026
Units | Per unit |
|---|---|
| 1 + | £488.32 |
*price indicative
- RS Stock No.:
- 287-7616
- Distrelec Article No.:
- 303-09-457
- Mfr. Part No.:
- 1075240
- Brand:
- Phoenix Contact
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Output Voltage 1 | 24V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 1500V dc | |
| Maximum Input Voltage | 1500V dc | |
| Output Current 1 | 8A | |
| Output Voltage 2 | 28V | |
| Mount Type | DIN Rail | |
| Ripple and Noise | 50mV | |
| Output Voltage Adjustment Range | 24 to 28 V dc | |
| Isolation Voltage | 4.2kV | |
| Maximum Output Power | 192W | |
| Depth | 160mm | |
| Weight | 1.54g | |
| Standards/Approvals | EN 61000-4-5, EN 55011 (EN 55022), EN 61000-6-4 (Class A), 2014/30/EU, EN 62109-1:2011, EN 61000-4-6, DIN VDE 0100-410, EN 61000-4-4, UL 62109-1:2014, IEC 62109-1:2011 (SELV), EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, 2014/35/EC, EN 55016, EN 61000-6-2:2005 | |
| Width | 88.5mm | |
| Series | TRIO-PS-2G | |
| Length | 160mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Output Voltage 1 24V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 1500V dc | ||
Maximum Input Voltage 1500V dc | ||
Output Current 1 8A | ||
Output Voltage 2 28V | ||
Mount Type DIN Rail | ||
Ripple and Noise 50mV | ||
Output Voltage Adjustment Range 24 to 28 V dc | ||
Isolation Voltage 4.2kV | ||
Maximum Output Power 192W | ||
Depth 160mm | ||
Weight 1.54g | ||
Standards/Approvals EN 61000-4-5, EN 55011 (EN 55022), EN 61000-6-4 (Class A), 2014/30/EU, EN 62109-1:2011, EN 61000-4-6, DIN VDE 0100-410, EN 61000-4-4, UL 62109-1:2014, IEC 62109-1:2011 (SELV), EN 61000-4-11, EN 61000-4-2, EN 61000-4-3, 2014/35/EC, EN 55016, EN 61000-6-2:2005 | ||
Width 88.5mm | ||
Series TRIO-PS-2G | ||
Length 160mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- CN
