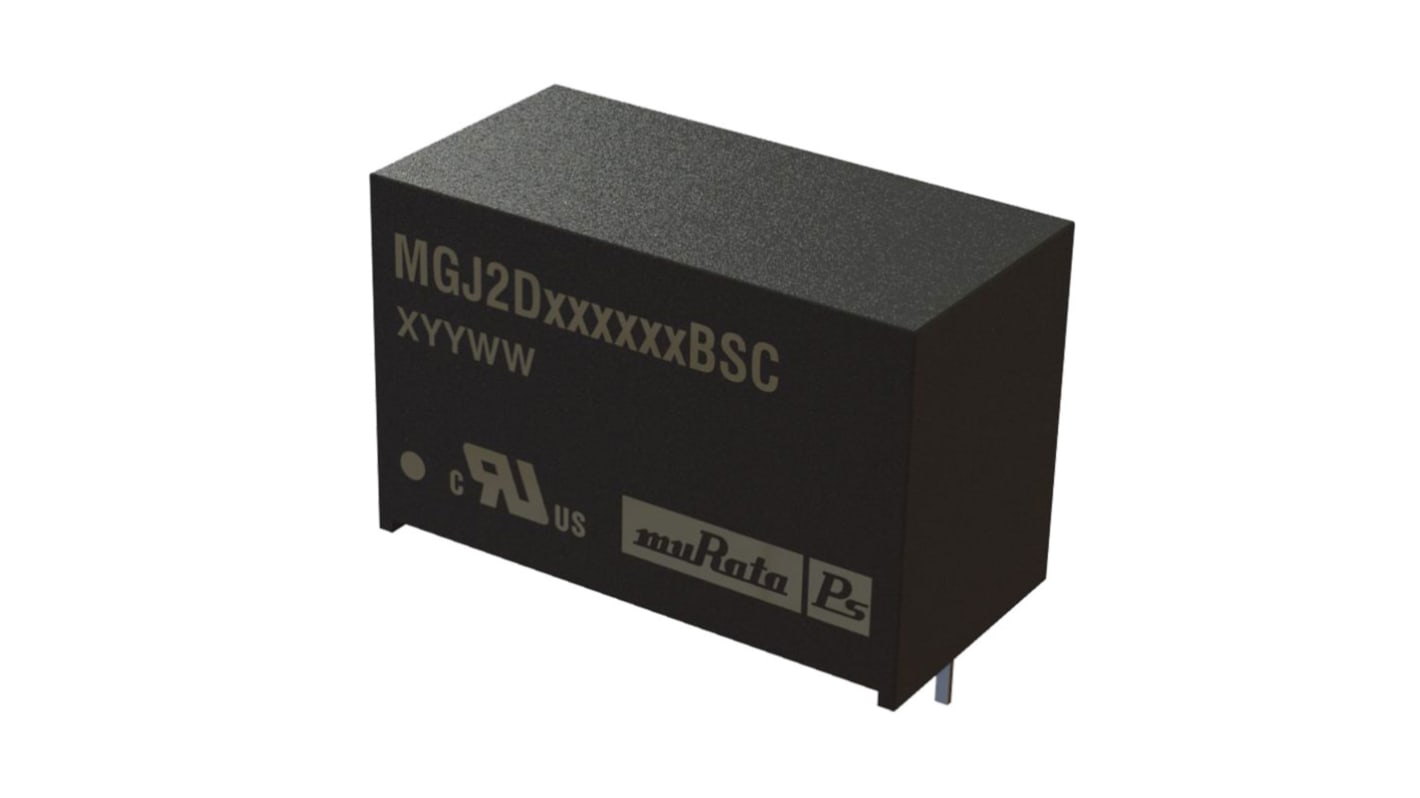

Murata Power Solutions MGJ2B DC-DC Converter, 20V dc/ 40 mA, 80 mA Output, 10.8 → 13.2 V dc Input, 2W, Through

RS Stock No.:: 274-5568
Mfr. Part No.:: MGJ2D122005BSC
Brand:: Murata Power Solutions

Murata Power Solutions MGJ2B DC-DC Converter, 20V dc/ 40 mA, 80 mA Output, 10.8 → 13.2 V dc Input, 2W, Through

50 In stock - FREE next working day delivery available

Price Each (In a Tube of 25)

£4.356

(exc. VAT)

£5.227

(inc. VAT)

Units	Per unit	Per Tube*
25 - 100	£4.356	£108.90
125 - 225	£4.226	£105.65
250 - 600	£4.095	£102.375
625 - 1225	£3.964	£99.10
1250 +	£3.834	£95.85

*price indicative

RS Stock No.:: 274-5568
Mfr. Part No.:: MGJ2D122005BSC
Brand:: Murata Power Solutions

Technical Reference

Datasheet - MGJ2D122005BSC

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

The Murata Power Solutions isolated gate drive DC to DC converter this is ideal for powering high side and low side gate drive circuits for IGBT or SiC and Mosfet gate drives in bridge circuits. A choice of asymmetric output voltages allows optimum drive levels for best system efficiency. It has continuous barrier withstand voltage is 2.4kV and has 6mm creepage and clearance. That comes with minimises coupling of transients across the isolation barrier and reduces system EMI problems, that assures reliable performance in high voltage applications. Suitable for the harsh industrial applications.

Ultra low isolation capacitance
Long service life and reliability
UL62368 reinforced insulation 300Vrms
Suitable for the harsh industrial applications

Specifications

Attribute	Value
Output Voltage	20 V dc, -5 V dcV dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	2W
Input Voltage Nominal	12 V dc
Output Current	40 mA, 80 mA
Mounting Type	Through Hole
Series	MGJ2B
Maximum Temperature	+105°C
Minimum Temperature	-40°C
