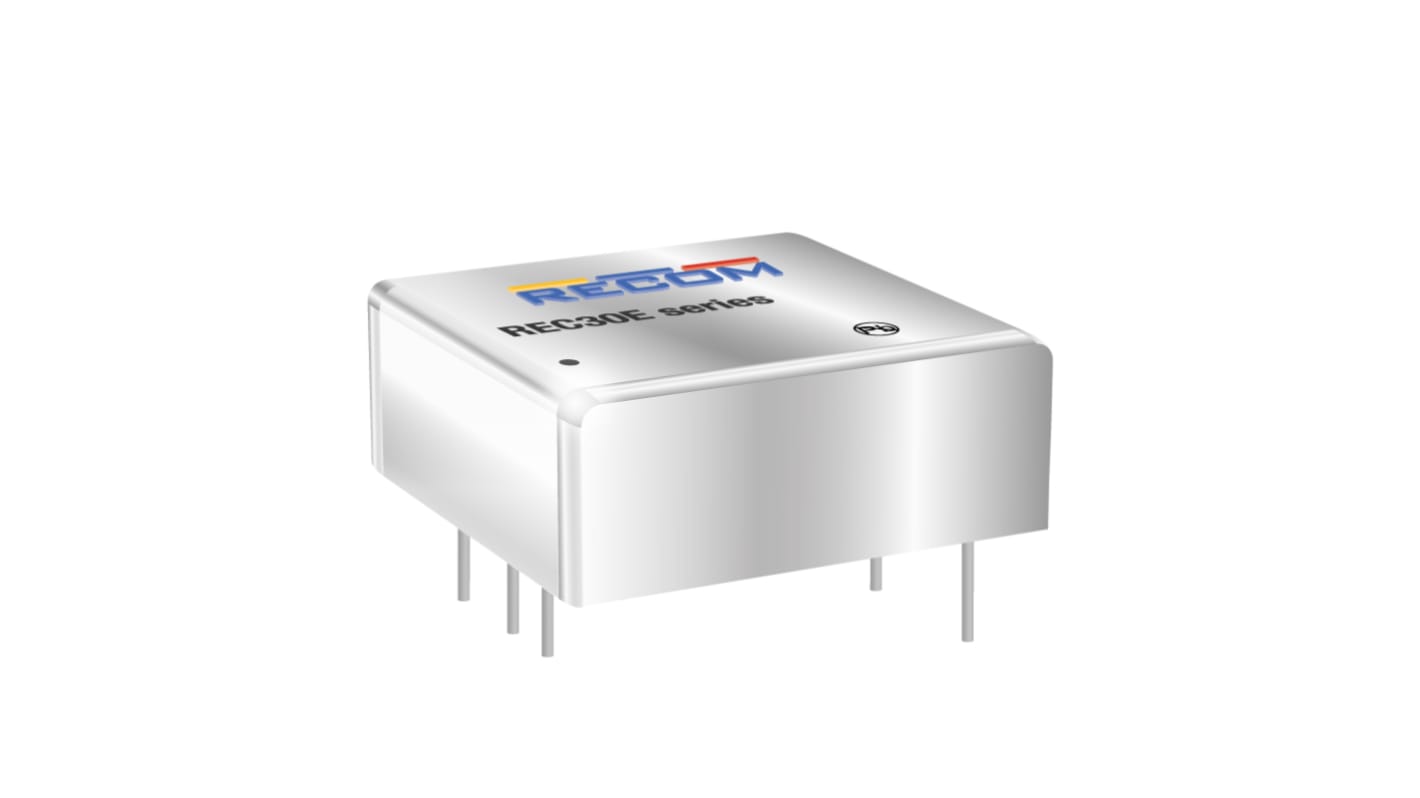

Recom REC30E-Z DC/DC Converter, 3.3V dc/ 7 A, 36V dc Input, 24V dc Input 30 W, Through Hole, 105 °C Max Temp -40 °C Min
- RS Stock No.:
- 274-5441
- Mfr. Part No.:
- REC30E-243.3SZ
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£33.76
(exc. VAT)
£40.51
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 25 unit(s) shipping from 08 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £33.76 |
| 5 - 9 | £32.82 |
| 10 - 24 | £31.93 |
| 25 - 49 | £31.09 |
| 50 + | £30.29 |
*price indicative
- RS Stock No.:
- 274-5441
- Mfr. Part No.:
- REC30E-243.3SZ
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 3.3V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 24V dc | |
| Output Current 1 | 7A | |
| Mount Type | Through Hole | |
| Input Ratio | 4:1 | |
| MTBF | 560000h | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | ±10 Trim range | |
| Ripple and Noise | 75mV Pk-Pk | |
| Isolation Voltage | 1.6V | |
| Number of Pins | 6 | |
| Package Type | Encapsulated Plastic SMD | |
| Maximum Output Power | 30W | |
| Depth | 10mm | |
| Series | REC30E-Z | |
| Width | 25.4mm | |
| Standards/Approvals | IEC/EN62368-1 3rd Edition, EN55032, IEC/EN62368-1 2nd Edition | |
| Weight | 17g | |
| Length | 25.4mm | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 88.5% | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 3.3V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 24V dc | ||
Output Current 1 7A | ||
Mount Type Through Hole | ||
Input Ratio 4:1 | ||
MTBF 560000h | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range ±10 Trim range | ||
Ripple and Noise 75mV Pk-Pk | ||
Isolation Voltage 1.6V | ||
Number of Pins 6 | ||
Package Type Encapsulated Plastic SMD | ||
Maximum Output Power 30W | ||
Depth 10mm | ||
Series REC30E-Z | ||
Width 25.4mm | ||
Standards/Approvals IEC/EN62368-1 3rd Edition, EN55032, IEC/EN62368-1 2nd Edition | ||
Weight 17g | ||
Length 25.4mm | ||
Minimum Operating Temperature -40°C | ||
Efficiency 88.5% | ||
Maximum Operating Temperature 105°C | ||
- COO (Country of Origin):
- TW
The Recom DC/DC Converter is a high power density, wide input voltage range regulated converter. The outputs are also fully protected against over-temperature, short circuits, overcurrent, and overvoltage.
Efficiency over 90 percent
No minimum load
