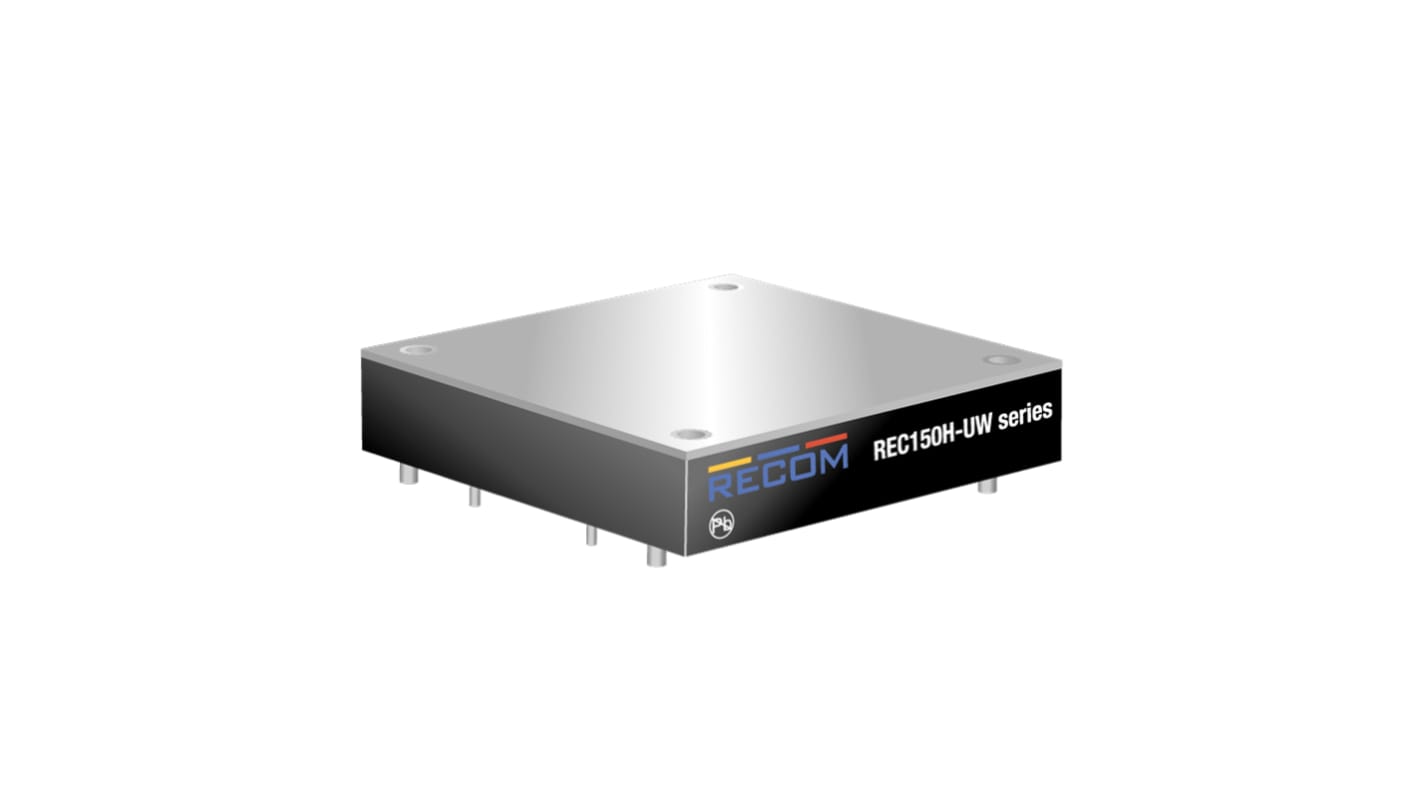

Recom REC150H-UW DC/DC Converter, 24V dc/ 6.25 A, 75V dc Input, 48V dc Input 150 W, Through Hole, 110 °C Max Temp -40 °C
- RS Stock No.:
- 274-5413
- Mfr. Part No.:
- REC150H-4824SUW
- Brand:
- Recom
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 274-5413
- Mfr. Part No.:
- REC150H-4824SUW
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 24V dc | |
| Maximum Input Voltage | 75V dc | |
| Minimum Input Voltage | 48V dc | |
| Output Current 1 | 6.25A | |
| Mount Type | Through Hole | |
| Input Ratio | 9:75 | |
| MTBF | 300000h | |
| Number of Outputs | 2 | |
| Ripple and Noise | 240mV Pk-Pk | |
| Output Voltage Adjustment Range | ±10 % | |
| Isolation Voltage | 2.5kV | |
| Number of Pins | 9 | |
| Package Type | Surface Mount | |
| Maximum Output Power | 150W | |
| Series | REC150H-UW | |
| Weight | 109g | |
| Width | 61mm | |
| Standards/Approvals | IEC/EN62368-1, RoHS 2+ compliant, UL62368-1, IEC/EN/UL62368 | |
| Depth | 12.7mm | |
| Length | 57.9mm | |
| Efficiency | 89.5% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 110°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 24V dc | ||
Maximum Input Voltage 75V dc | ||
Minimum Input Voltage 48V dc | ||
Output Current 1 6.25A | ||
Mount Type Through Hole | ||
Input Ratio 9:75 | ||
MTBF 300000h | ||
Number of Outputs 2 | ||
Ripple and Noise 240mV Pk-Pk | ||
Output Voltage Adjustment Range ±10 % | ||
Isolation Voltage 2.5kV | ||
Number of Pins 9 | ||
Package Type Surface Mount | ||
Maximum Output Power 150W | ||
Series REC150H-UW | ||
Weight 109g | ||
Width 61mm | ||
Standards/Approvals IEC/EN62368-1, RoHS 2+ compliant, UL62368-1, IEC/EN/UL62368 | ||
Depth 12.7mm | ||
Length 57.9mm | ||
Efficiency 89.5% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 110°C | ||
The Recom DC/DC Converter s a half-brick encapsulated converter which delivers up to 150 Watt. Its wide input voltage range makes it flexible to install and it is especially suitable for 12 voltage, 24 voltage or 48 voltage battery supplies.
Fully protected output
Efficient
