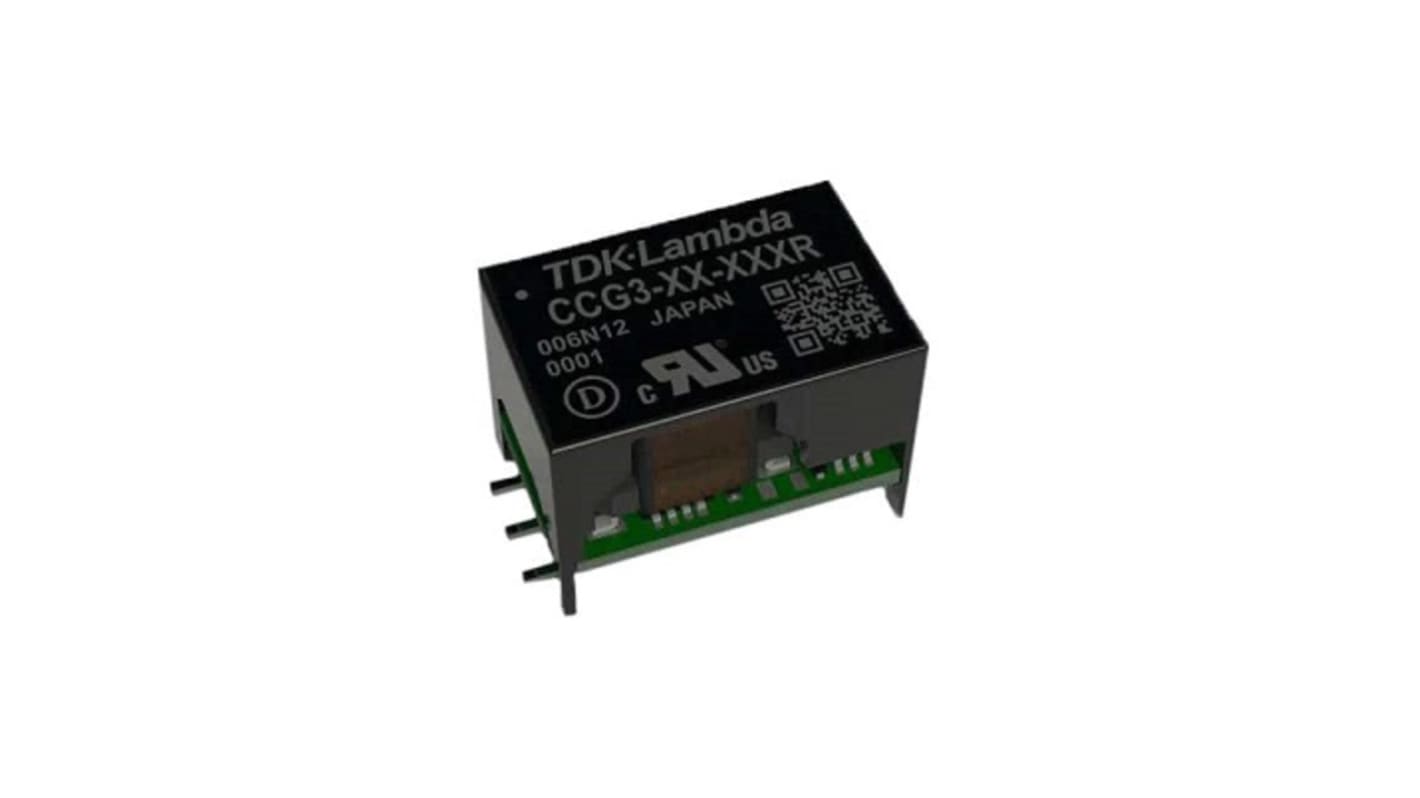

TDK-Lambda CCG Isolated DC-DC Converter, 12V dc/ 0.13 A Output, 18V dc Input, 4.5V Input, 100 °C Max Temp -40 °C Min

View all DC-DC Converters

Subtotal (1 unit)*

£11.89

(exc. VAT)

£14.27

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£11.89

*price indicative

RS Stock No.:
260-4606
Mfr. Part No.:
CCG3-12-12DR
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

Isolated DC-DC Converter

Output Voltage

12V dc

Minimum Input Voltage

4.5V

Maximum Input Voltage

18V dc

Output Current

0.13A

Series

CCG

Width

10.4mm

Standards/Approvals

IEC/UL/CSA/EN62368-1, CE Mark, UKCA Mark, RoHS, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8

Weight

3g

Depth

11.8mm

Length

15.7mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

COO (Country of Origin):
JP
TDK-Lambda space saving CCG3 series of isolated DC-DC converters operate from wide range. Single output models can be adjusted -5% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of -40 to 100°C and have an input to output isolation of 1500 Vdc. Both through hole and surface mount packages are offered.

Output Voltage Tolerance - ±2 %

Switching Frequency - 400 kHz

Cross Regulation - Dual output only

Ripple & Noise - 200 mV

Temperature Coefficient - 0.02 %/°C

Conducted & Radiated EMI - EN55011/EN55032-A, FCC Class A, VCCI-A
