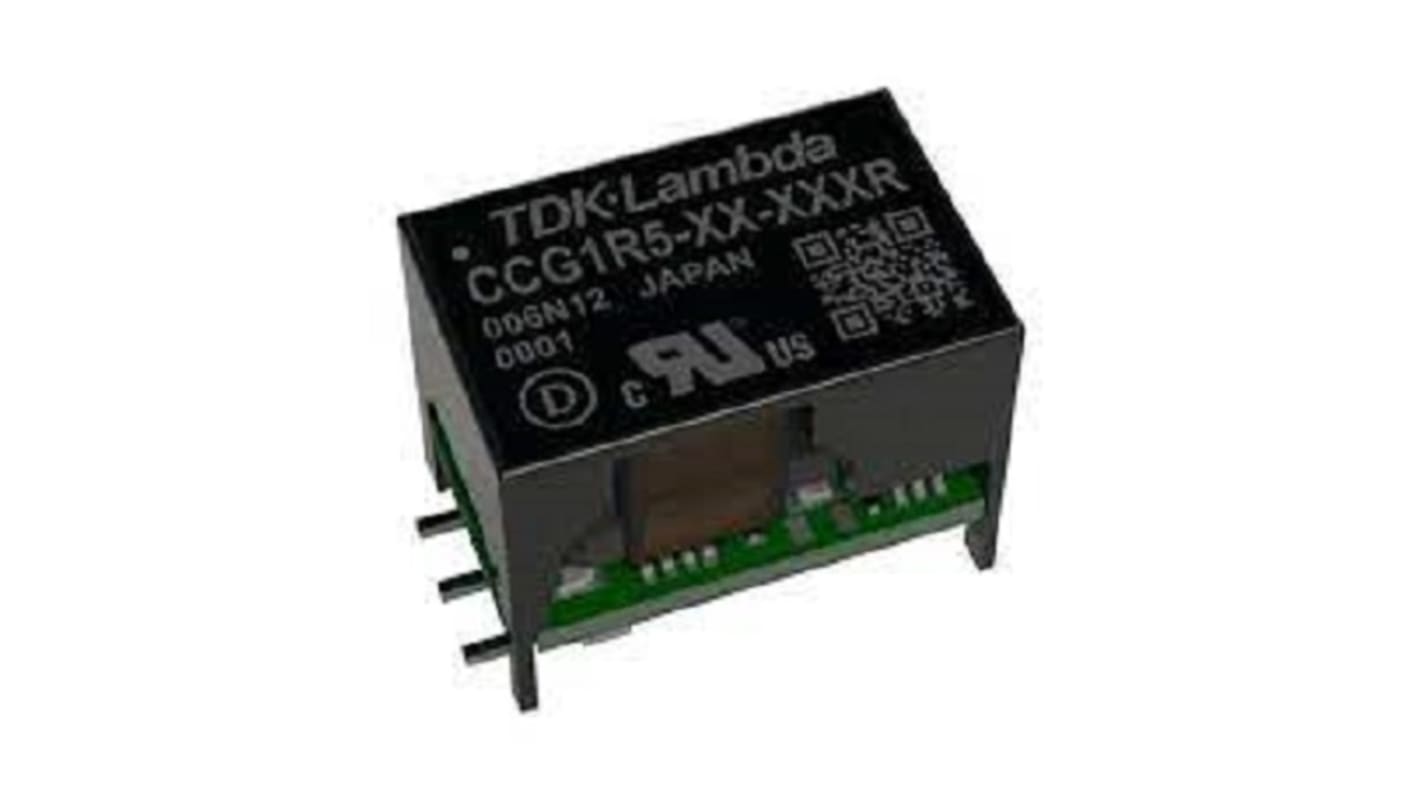

TDK-Lambda CCG Isolated DC-DC Converter, 15V dc/ 0.05 A Output, 18V dc Input, 4.5V Input, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£12.73

(exc. VAT)

£15.28

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£12.73
5 - 9£12.33
10 - 24£11.96
25 - 49£11.58
50 +£11.20

*price indicative

RS Stock No.:
260-4572
Mfr. Part No.:
CCG1R5-12-15DR
Brand:
TDK-Lambda
Find similar products by selecting one or more attributes.
Select all

Brand

TDK-Lambda

Product Type

Isolated DC-DC Converter

Output Voltage

15V dc

Minimum Input Voltage

4.5V

Maximum Input Voltage

18V dc

Output Current

0.05A

Depth

11.8mm

Length

15.7mm

Width

10.4mm

Weight

3g

Series

CCG

Standards/Approvals

IEC/UL/CSA/EN62368-1, CE Mark, UKCA Mark, RoHS, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

COO (Country of Origin):
JP
TDK-Lambda space saving CCG1R5 series of isolated DC-DC converters operate from wide range. Single output models can be adjusted -5% to +10% by using the trim terminal. The CCG can operate in ambient temperatures of -40 to 100°C and have an input to output isolation of 1500 Vdc. Both through hole and surface mount packages are offered.

Output Voltage Tolerance - ±2 %

Switching Frequency - 400 kHz

Cross Regulation - Dual output only

Ripple & Noise - 200 mV

Temperature Coefficient - 0.02 %/°C

Conducted & Radiated EMI - EN55011/EN55032-A, FCC Class A, VCCI-A
