- RS Stock No.:
- 249-7376
- Mfr. Part No.:
- THN 30-7212WIR
- Brand:
- TRACOPOWER
1 In stock - FREE next working day delivery available
Price 1 Tube of 10
£661.89
(exc. VAT)
£794.27
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £661.89 | £66.189 |
5 - 9 | £642.03 | £64.203 |
10 - 24 | £622.18 | £62.218 |
25 - 49 | £595.70 | £59.57 |
50 + | £569.23 | £56.923 |
*price indicative
- RS Stock No.:
- 249-7376
- Mfr. Part No.:
- THN 30-7212WIR
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Product Details

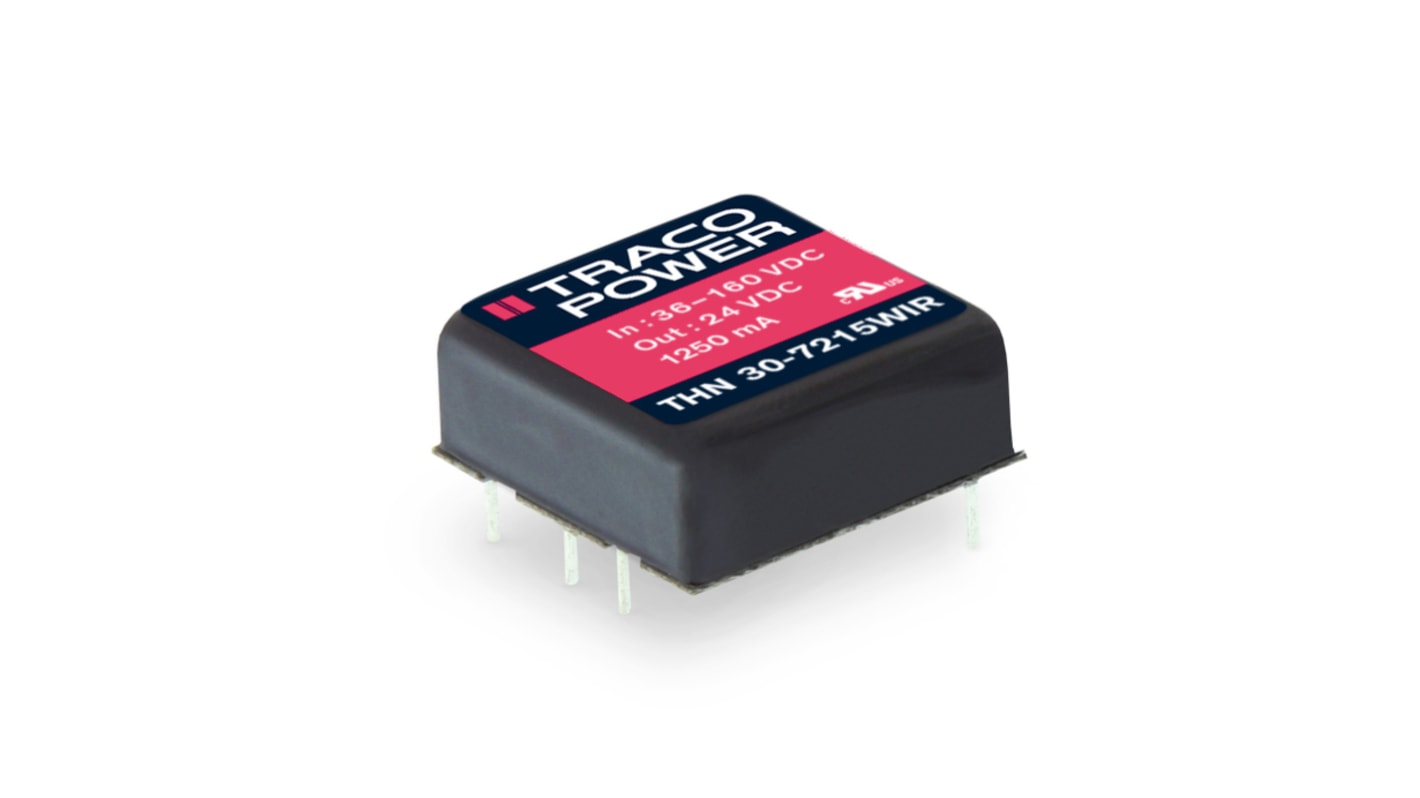

The Traco dc-dc railway converter designed for highest reliability in harsh environments. Its full encapsulation guarantees highest resistance to thermal shocks as well as mechanical shocks and vibration. This ultra wide product has 4:1 input voltage range 9-36, 18-75, 36-160 Vdc with an output power of 30 watts.
Shielded by a metal enclosure on all six sides for lowest susceptibility to electromagnetic interference
Provides up to 91% efficiency also can operate at ambient temperatures between -40°C and +65°C without derating and without the need for additional cooling
Up to 3000 Vdc i/o isolation
Remote on/off and trim function
EN 50155 and EN 61373 certified
EN 45545-2 fire behavior
Under voltage lockout (UVLO), short-circuit protection (SCP), over temperature protection (OTP) and overvoltage protection (OVP)
Provides up to 91% efficiency also can operate at ambient temperatures between -40°C and +65°C without derating and without the need for additional cooling
Up to 3000 Vdc i/o isolation
Remote on/off and trim function
EN 50155 and EN 61373 certified
EN 45545-2 fire behavior
Under voltage lockout (UVLO), short-circuit protection (SCP), over temperature protection (OTP) and overvoltage protection (OVP)
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 36 → 160 V dc |
Power Rating | 30W |
Input Voltage Nominal | 110 V dc |
Mounting Type | PCB Mount |
Isolated | Yes |
Output Voltage Adjustment Range | -10 → +10% |
Isolation Voltage | 3kV dc |
Series | THN 30WIR |
Railway Approved | Yes |
Medical Approved | No |
